EYES P100 White

BirdDog

0936999812358

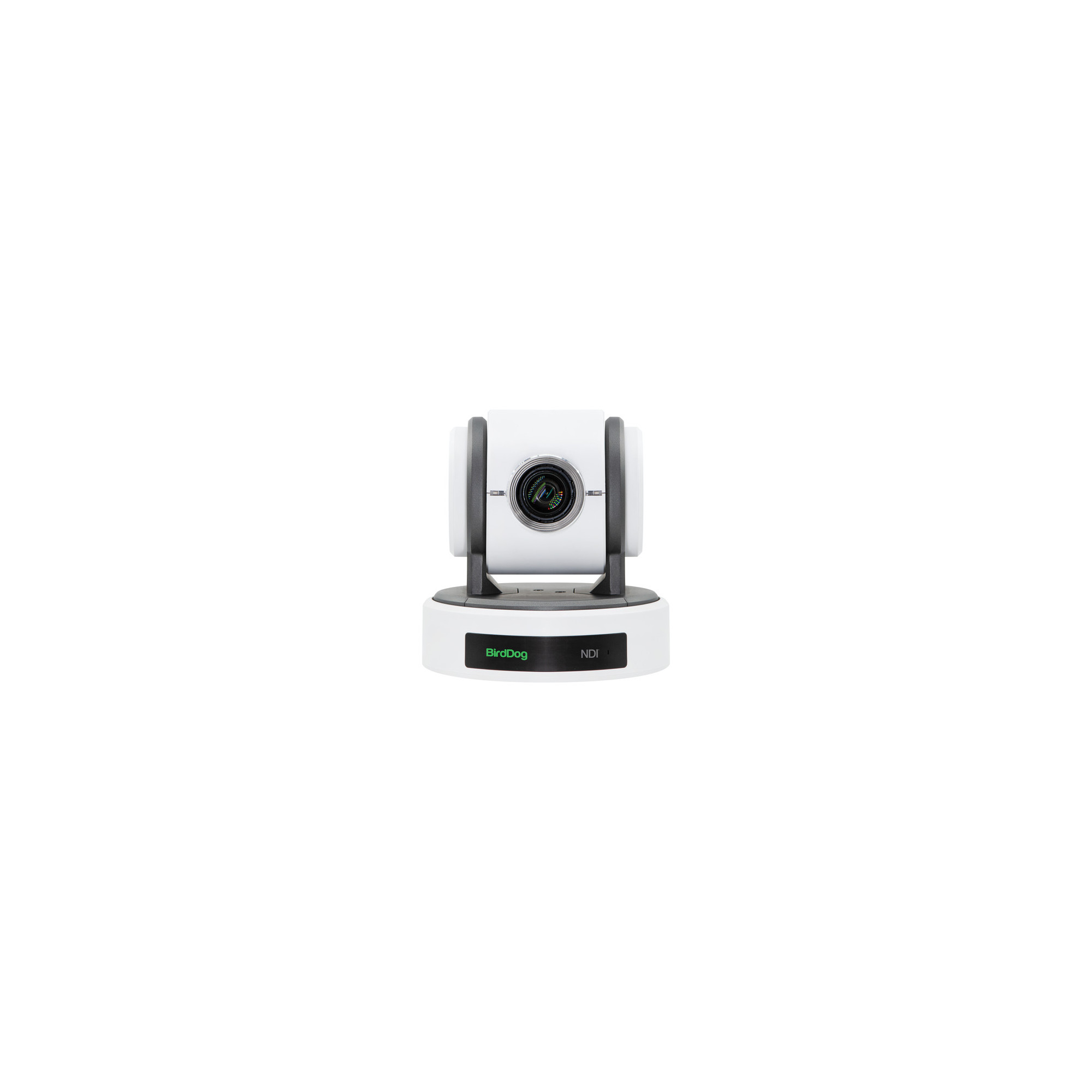

BirdDog Eyes P100 1080p Full NDI PTZ Camera
go to the technical sheet
  • -2.5%
Save 2.5%
€ 1.807,60

€ 1.681,49 VAT excl.

€ 1.853,95
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
Built on BirdDog's custom NDI silicon chip, the P100 PTZ camera is your entry into the world of full NDI. Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI outputs, P100 gives you professional level quality, performance, and total flexibility. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world's first NDI audio intercom platform.

Full NDI
In the world of NDI there are two flavours, NDI and NDI|HX. NDI is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P100 is a Full NDI camera.

Broadcast Sensor
P100 is teams up a true broadcast camera sensor with the BirdDog custom NDI chip to form a match made in silicon heaven. Champagne images on a beer budget because your productions deserve the best.

Extreme Speed:
Lightning auto focus. Insanely fast zoom. Precision optics. P100 has been engineered to meet the most demanding situations whether you are in a boardroom streaming your quarterly results, producing a live event for your church, or live streaming sports

Dual output:
With NDI and SDI simultaneous outputs you can use the P100 is ready to go live with your full NDI workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232. Future proof your investment by using baseband video now and move to NDI when you are ready.

PTZ Keyboard:
Combine P100 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured controller that can control up to 255 PTZ cameras on a single network and can scale to even the most complex installations. PTZ Keyboard can control P100 over NDI or by RS422 / RS232 when using in SDI mode.

CAMERA
IMAGE SENSOR
1 / 2.86 inch CMOS 2.2MP
LENS
4.7-47mm
OPTICAL ZOOM
10x
DIGITAL ZOOM
12x
HORIZONTAL ANGLE OF VIEW
60.9° (W) - 6.43° (T)
APERTURE
F1.6 (W) - F3.0 (T)
MIN. ILLUMINATION
Color: 0.5 lux
SHUTTER SPEED
1/1 - 1/30000s
FOCUS
Auto, Push, Manual
WHITE BALANCE
Auto, Indoor, Outdoor, Manual, OPW, ATW
EXPOSURE
Auto, Manual, Shutter/Iris Priority
BACKLIGHT COMPENSATION
YES

MECHANICAL
PAN MOVEMENT
Horizontal : ±350º continuous pan (Zoom Adaptive Speed Range: 0.5°?100°/S )
TILT MOVEMENT
Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.05°?72°/S)
PRESET POSITIONS
128 (Speed adjustable: Up to 150°/s)
PRESET SPEED
0 - 5 Level adjustable
ENVIRONMENTAL
Indoor
OPERATING TEMPERATURE
-10 - +50 (°C)
OPERATING HUMIDITY
=80%

VIDEO INTERFACE
VIDEO OUTPUT
NDI/SDI/HDMI
VIDEO FORMATS
1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
AUDIO I/O
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)

CONTROL INTERFACE
IP PTZ CONTROL
NDI Control (auto configuring)
SERIAL PTZ CONTROL
1x RJ45: RS232/RS422
SERIAL CONTROL PROTOCOL
VISCA / Pelco D

POWER & DIMENSIONS
POWER INPUT
12v DC, PoE +(IEEE 802.3at)
DIMENSIONS
145x145x154mm
WEIGHT
1.0Kg

NETWORK
VIDEO COMPRESSION
Full NDI - i-frame high quality low latency NDI for production
NETWORK PROTOCOL
NDI - Discovery, configuration and control
WEB CONTROL INTERFACE
Full control via Web/Mobile UI including Scene presets
