SmallHD

811786033461
Display Touchscreen 5" 1920 x 1080 HDMI & 3G-SDI IN & OUT
go to the technical sheet
  • -2.5%
Save 2.5%
€ 2.537,12

€ 2.360,11 VAT excl.

€ 2.602,18
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

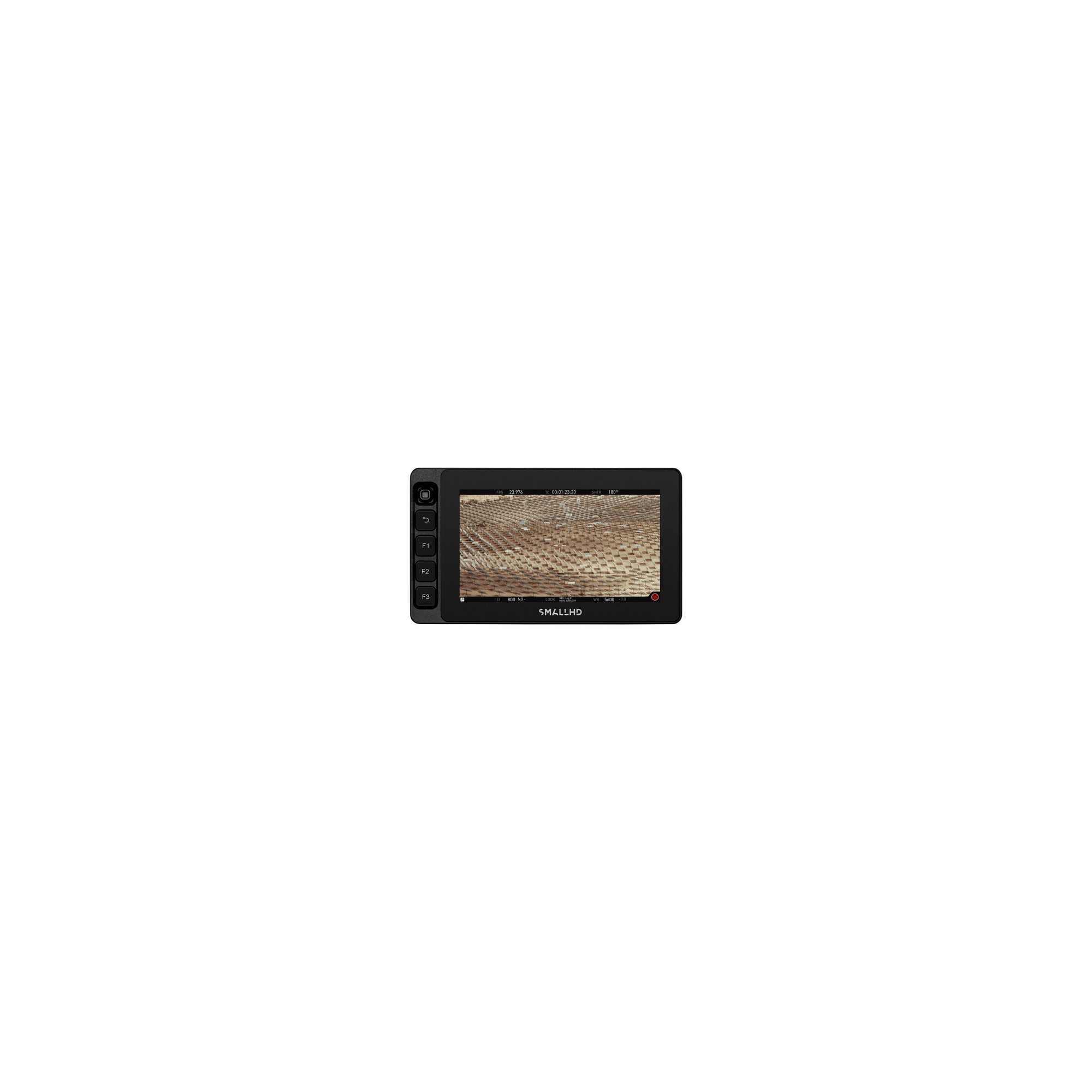

Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.

The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.

Features
Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness
Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
HDMI and 3G-SDI inputs and outputs
Buttons around the monitor allow you to use the monitor in any conditions
The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
Power using a 2-pin power input
Optional RED camera control via the micro-USB port
Optional ARRI/Sony VENICE camera control via the Ethernet port
Durable aluminum chassis
Display Tools
Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels

Screen
Panel type: LCD
Display Size: 5.0 "/ 12.7cm
Resolution: 1920 x 1080
Aspect Ratio: 16: 9
Touch screen: yes
Maximum brightness: 3000 cd / sqm
Bit depth / Color support: 10 bit (1.07 billion colors)
Pixels per inch (ppi) 443 ppi
Color gamut 100% DCI-P3
Image Controls Blue Only, False Colors, Focus Peaking, Flip Image, Pixel-to-Pixel Zoom, RGB Parade, Screen Indicators, Waveform

Video I / O
1 x BNC output (3G-SDI)
1 x HDMI output
1 x BNC input (3G-SDI)
1 x HDMI input
Built-in audio: HDMI - SDI

Audio I / O
1 x 1/8 "/ 3.5mm headphone output
Integrated speaker: None

Other I / O
1 x LEMO 5 pin output
1 x RJ45 output

Media / memory card slot: None
Wifi: None
Format support
Video format
SDI (10 bit 4: 2: 2)
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080PsF: 30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
480i
576i
HDMI (8/10/12 bit)
UHD 4K: 30
1080p: 60 / 59.94 / 50/30/25/24 / 23.98
1080PsF: 30/25/24 / 23.98
1080i: 60 / 59.94 / 50
720p: 120 / 119.88 / 100/60 / 59.94 / 50/30/25/24 / 23.98
576p: 100/50
480p: 120 / 119.88 / 60 / 59.94
480i39.7 / 2 /120/119.88/60/59.94
576i: 200/100/50

Power
Battery type: None
Assembly
Fitment: 3 x 1/4 "-20 female
General
Construction material: Aluminum

SmallHD ULTRA 5 Bright Touchscreen Monitor
