PYXIS Monitor EVF Kit

Name: PYXIS Monitor EVF Kit
Brand: Blackmagic
SKU: PYXIS Monitor EVF Kit
Price: 1289236 NGN
Availability: InStock

Blackmagic

5" HDR Touchscreen Monitor Kit EVF,1500 cd/m²,1920x1080 Native Resolution

go to the technical sheet

₦ 1,289,236.00

₦ 1,199,289.71 VAT excl.

Available 3 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

Blackmagic PYXIS Monitor Kit EVF , 5" HDR Touchscreen, 1500 cd/m² Brightness, 1920 x 1080 Native Resolution - CINEURSABB/AMKITEVF

Blackmagic PYXIS Monitor is a versatile 5" HDR touchscreen monitor with full camera control that can be mounted almost anywhere.

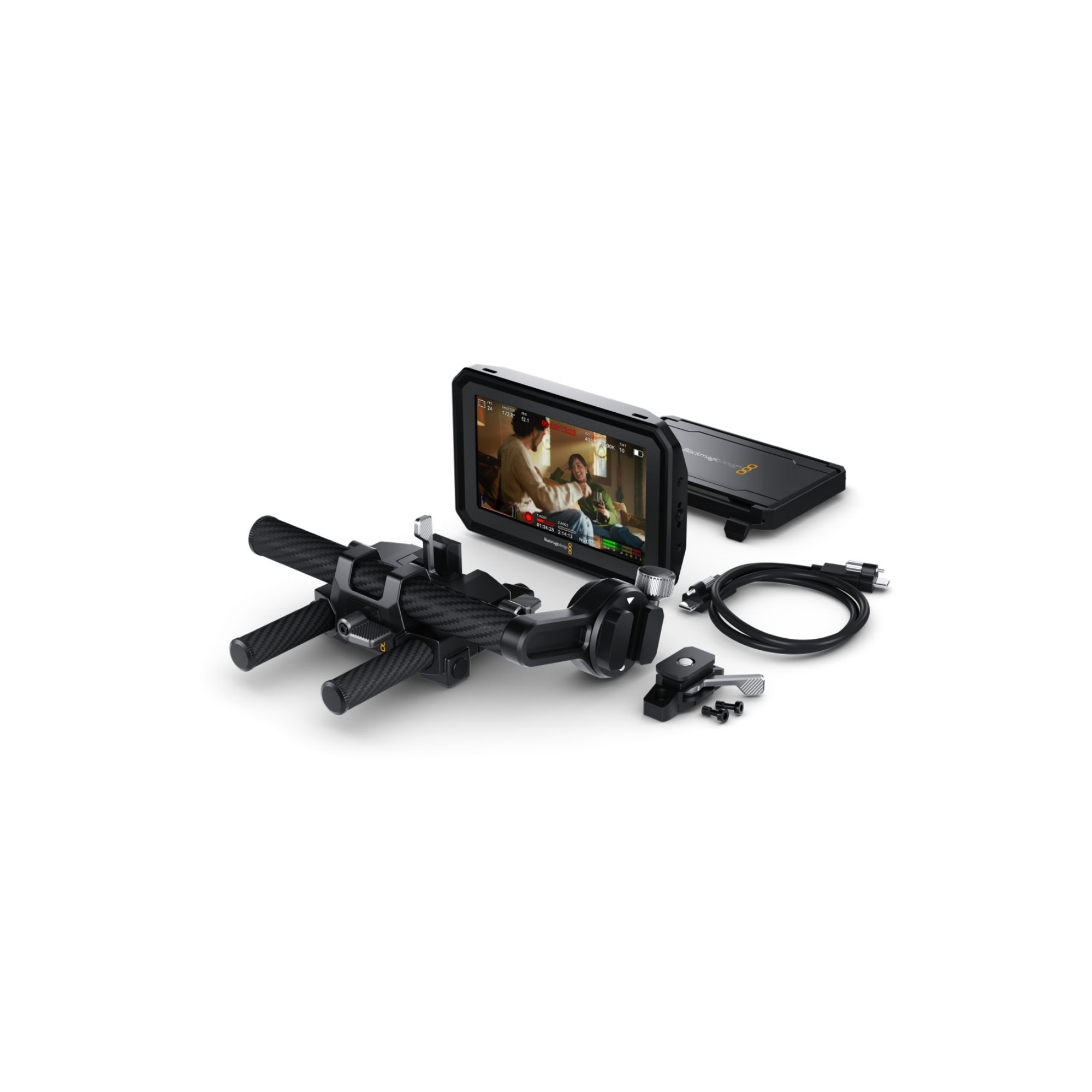

Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras.
Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as en electronic viewfinder.

Compatible Cameras
- Blackmagic PYXIS 6K
- Blackmagic PYXIS 6K PL
- Blackmagic PYXIS 6K EF
- Blackmagic URSA Cine 12K LF
- Blackmagic URSA Cine 17K 65

Connections
___________________________
USB-C with Locking Connector

Features
___________________________
Display Size: 5"
Display Resolution: Full 1920 x 1080
Display Type: LCD capacitive touchscreen
Display Brightness: 1500 nits
Frame Rates: Up to 60fps
Tally: Rear facing LED tally light
Accelerometer: Automatically rotates image when monitor mounted upside down

Control
___________________________
On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function Button Presets:
- FPS: Preset Value
- Iris: Preset Value
- WB: Preset Value
- ISO: Preset Value
- Shutter: Preset Value
Function Button Toggle:
- Clean Feed
- Status Text
- Display LUT
- Frame Guides
- Focus Assist
- False Color
- Zebra
- Grid
- Safe Area Guide
- Off Speed Rec
- Focus Zoom
- Focus
- Record
- Auto White Balance
- Color Bars
- Playback
- False Color + Zebra
- OIS
- Stream
- Still

Mounting
___________________________
Mounting Points:
- 1x 1/4-20 bottom mounting point with ARRI locating pin pattern.
- 2x M4 bottom mounting points.
- 1x 1/4-20 side mounting point with ARRI locating pin pattern.
- 2x M4 side mounting points.

Operating Systems
___________________________
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later
Windows 10 and 11

Power Requirements
___________________________
Powered over USB-C

Environmental Specifications
___________________________
Operating Temperature: 0°to 40°C (32° to 104°F)
Storage Temperature: -20°to 60°C (-4° to 140°F)
Relative Humidity: 0% to 90% non-condensing

1x PYXIS Monitor
1x PYXIS Clip On Sunshade
1x PYXIS Monitor Swivel Mount
1x PYXIS Monitor Fixed Mount and screws
1x PYXIS Monitor Dovetail Shoe and screws
1x URSA Cine EVF Bracket rod mount
1x URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
2x Short 15mm carbon fibre rods
1x USB-C viewfinder cable
1x Welcome wallet with QR code for software download
1x Sticker
