K15 in Carrying Case

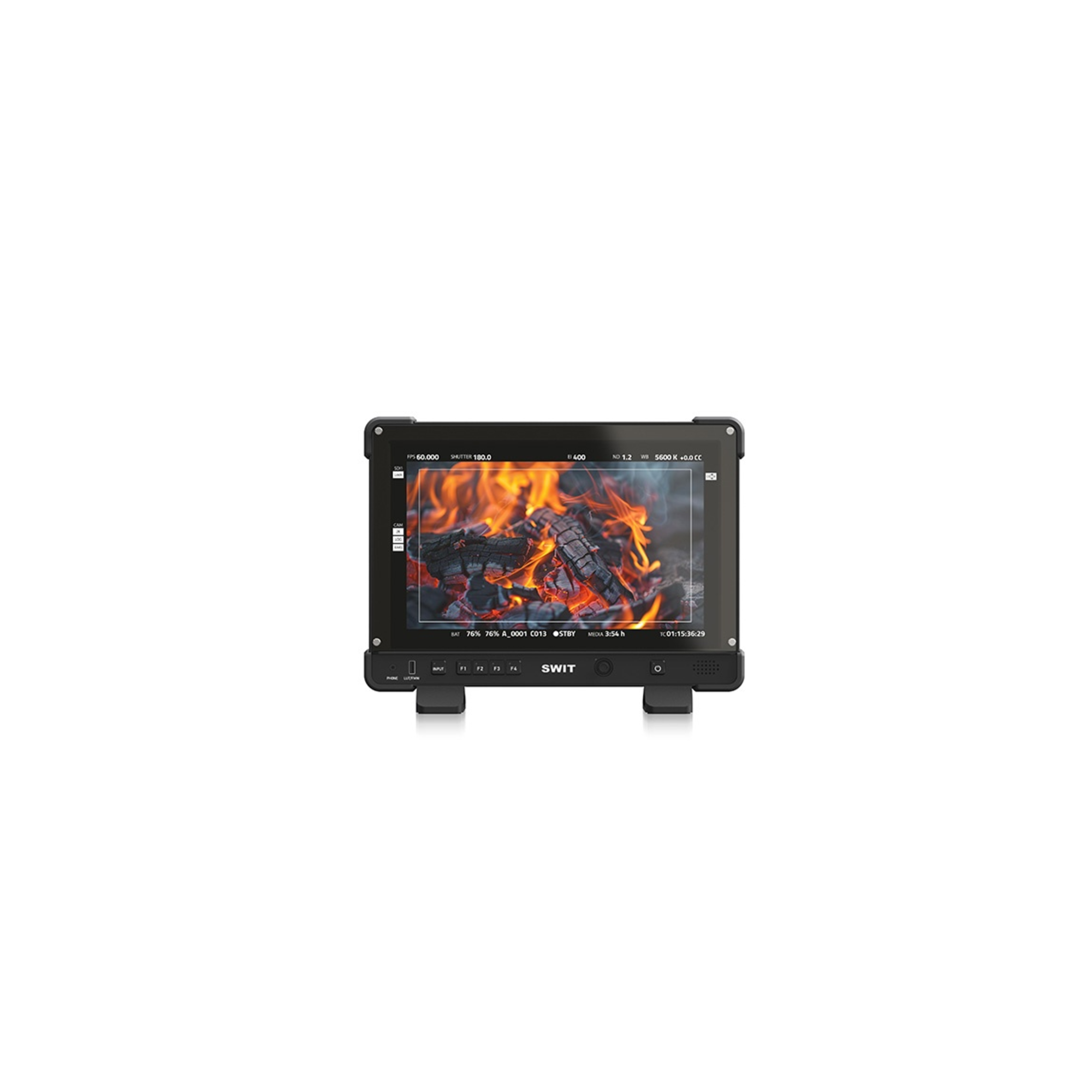

Swit 15.4" professional High-bright HDR FHD Field Monitor with Carrying Case, V-mount

- 15.4-inch 1920×1200 10bit IPS Panel
- 1500nits high bright sunlight view
- Near OLED high contrast deep black
- Rubber corner anti-crash guards
- Quick release screen protective glass
- 2× Interchangeable Cheese plates
- Provide C-stand Mounting Adaptor
- 2K/3G/HD/SD-SDI & 4K-HDMI Monitoring
- Built-in Multi-Camera Delog Luts SDR & HDR
- 10× User 3DLuts Cubes Upload by USB-A
- Automatic 3DLuts Calibration by USB-C
- Scene OS - 8 Pages Create Quick Switching
- 4× Function Keys Assigned for Each Scene
- Anamorphic De-squeeze
- Custom False color / Zebra values
- Waveform / Vector scopes / Histogram
- Peaking / Focus assist / Crosshatch / Safe area
- SDI audio meters / Timecode display
- AC / 4-pin XLR / V-mount battery power
- Shipping with engineering carrying case

15.4" 1500nits Sunlight View (1920x1200 IPS Panel of 10-bit process)
The K15 field production monitor, equipped with a brilliant 15.4" FHD 1500nits high bright display, ensures clearly visible even under direct sunight.
With durable all-aluminum housing, screen protective glass and rubber covers on the 4 corners, the K15 pffers comprehensive protection against the elements and accidental impacts.

Near OLED Deep Black
The K15 monitor boasts an unparalleled superior contrast ratio, delivering clear and deep black levels, ensuring that every detail is captured with exceptional depth and realism.

Compact Handy Size
The K15 monitor features a 15.4" screen, enhanced by a narrow bezel design that contributes to its compact and portable form factor, which makes the K15 an ideal choice for directors and focus pullers who require a monitor that can easily fit into tight spaces and travel with them on location.

Rubber Corners Protection
With durable all-aluminum housing, screen pretective glass and rubber cover on the 4 corners, the K 15 offers comprehensive protection against the elements and accidental impacts.

Screen Protective Glass
The K15 monitor provides a high-transparency screen protective glass, clear and solid.
It features four nondetachable screws, allowing for easy installation and removal without any tools.

Pinterfaces
The K15 monitor provides: 3G-SDI inputs, 2 loop outputs, 4K-HDMI 1.4 input, USB-A Firmware and User Lut input, USB-C calibration probe input, AC 100-240V power input, DC 11-17V 4-pin XLR input, V-Mount battery plate input.

C-stand Adaptor & Cheese boards (Standard Accessories in Package)
The K15 monitor comes standard with 2x cheese boards, to accommodate accessories like wireless video receivers.
The cheese boards can be detachably mounted in 6 different positions on the back and sides.
Additionally, the k15 also includes a VESA to C-stand Adaptor, making it incredibly convenient for video production crews to mount on a C-stand light stand for monitoring in various shooting environments.

Provide Carrying Case
The K15 monitor standard package goes with a hand-carried engineering case, crafted to safeguard the monitor during transit and in storage.

SCENE OS Operation
The unique Scene OS operating system offers unparalleled customization and flexibility to the field production monitoring.
This system allows to create up to 8 customizable Scenes, and within each Scene, users can define 8 shortcuts of the monitor tools, for quick access to essential tools and swift Scene transitions.
This feature stramlines workflows and enhances the creative process by providing instant access to the most-used functions.

Delog and User LUT Upload
The K15 monitor has built-in a variety of Delog LUTs from camera manufacturers including ARRI, RED, SONY, Canon, BMD, Panasonic, Nikon and Fuji, supports Gamma 2.2 / 2.4 / 2.6 SDR and HLG / PQ HDR.
The monitor also supports up to 10x User 3DLUTs upload by USB.

Custom Aspect Ratio
The K15 monitor supports the customization of any aspect ratio for composition guides, allowing you yo mark any desired aspect ratio required for your video project on a 16:9 screen.

Custom False Color Range
The K15 monitor supports custom False Color exposure ranges, allowing you to set exposure prameters for Black Clip, Near Black, White Clip, Near White, Tone 1 range and Tone 2 range, to ensure precise exposure control.

Anamorphic De-squeeze
K15 supports Anamorphic lens correction at magnification factors of 1.33x, 1.4x, 1.5x, 1.6x, 1.8x, 1.9x, and 2x, for cinematographers to correct the unique horizontal squeeze and aspect ratio distorions in real-time.
