BVMK-R10

Name: BVMK-R10
Brand: Sony
SKU: BVMK-R10
Price: 5712124 NGN
Availability: OutOfStock

Sony

EAN: 5013493491656

Monitor Control Unit for BVM Series and Professional Video Monitors

go to the technical sheet

₦ 5,712,124.00

₦ 5,313,603.90 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Sony Monitor Control Unit for BVM Series and Professional Video Monitors

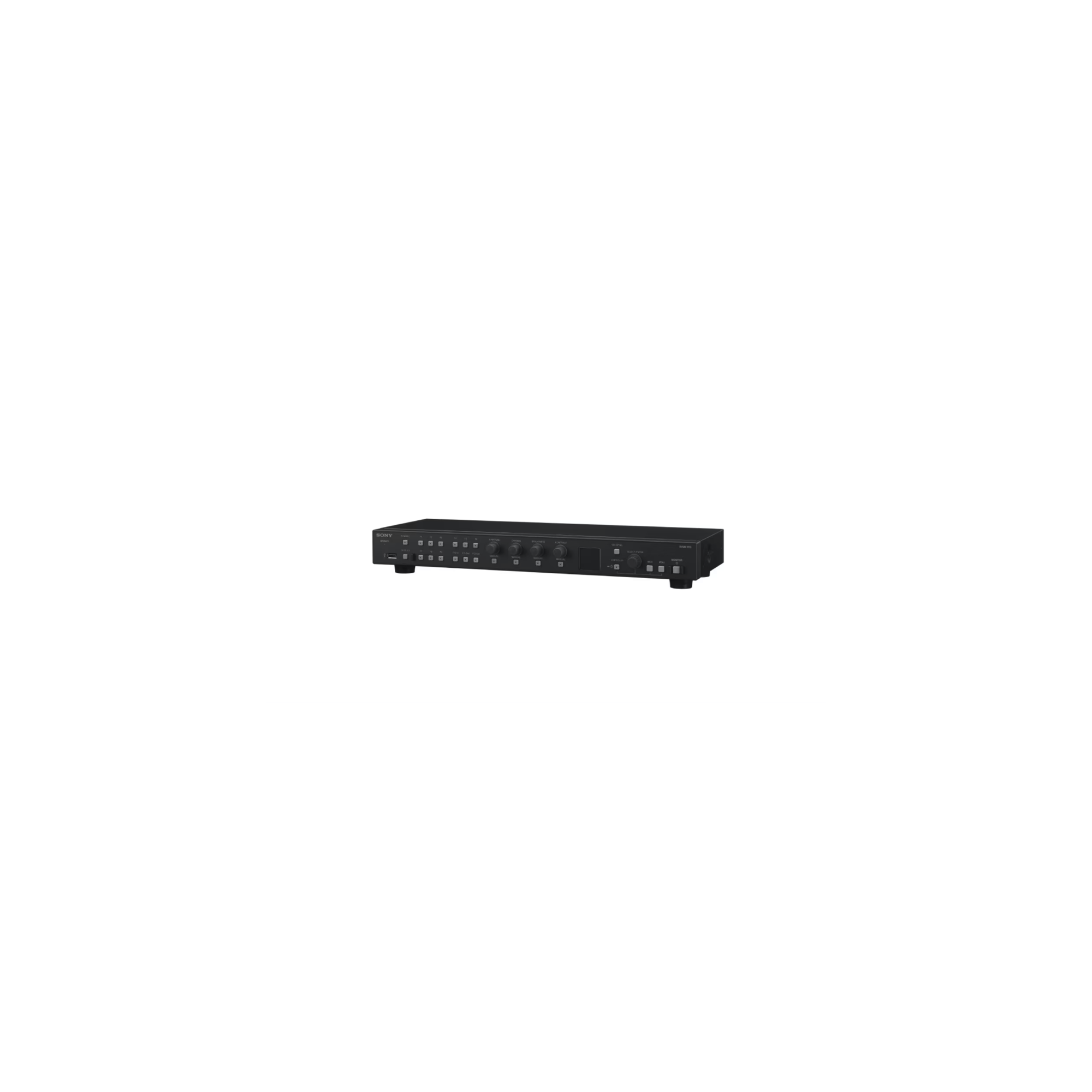

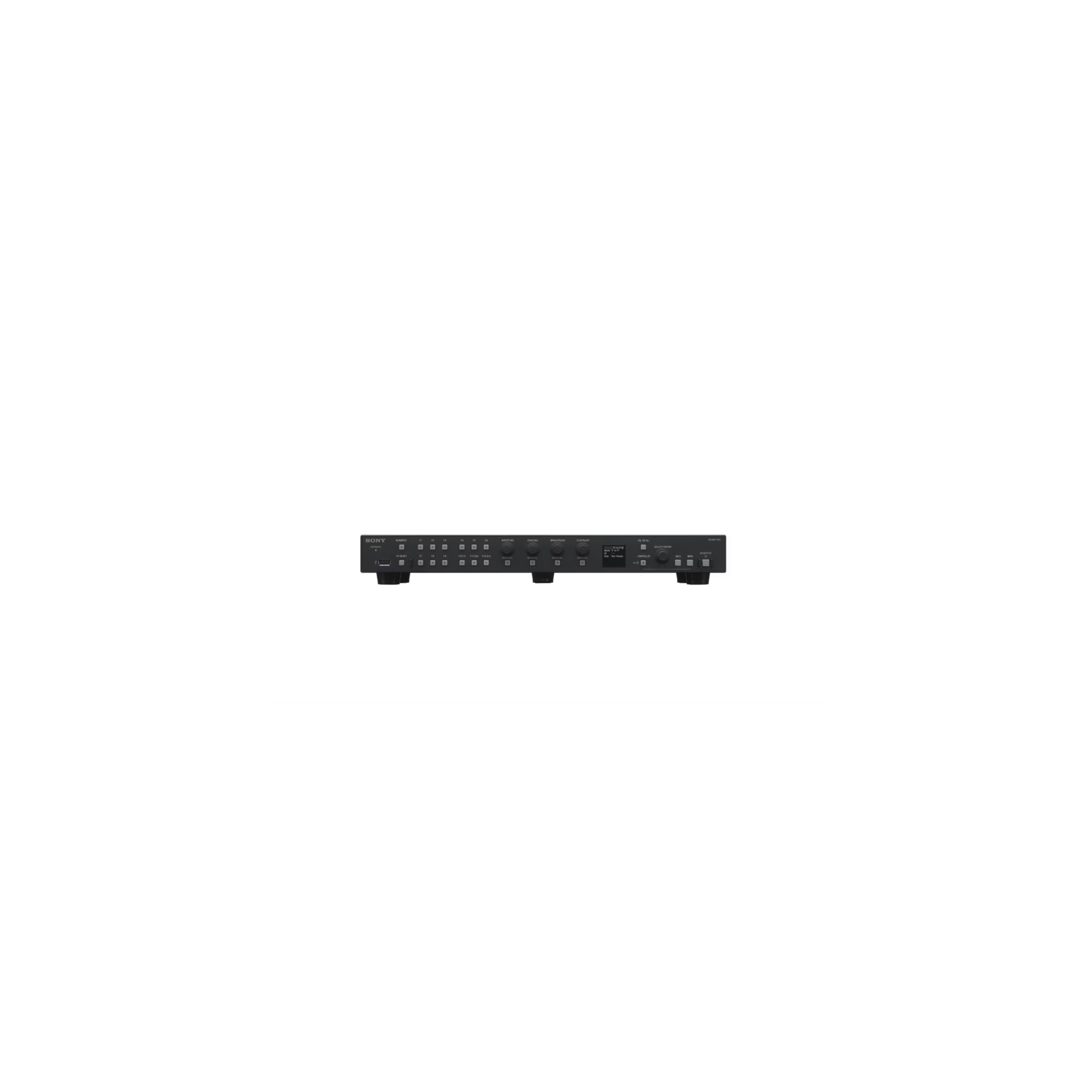

The 19-inch rack-mountable monitor control unit, BVMK-R10, gives you control of BVM-HX3110*, BVM-HX310*, BVM-HX1710, BVM-HX1710N, BVM-X300*, BVM-E251, BVM-E171, PVM-X3200*, PVM-X2400* and PVM-X1800* series.

In addition, it can also partially control Sony professional video monitors, including input switching, Mono, Menu, Chroma, Brightness, Contrast and basic functions such as blue only, etc.

The BVMK-R10 controller can control up to 32 BVM/PVM monitors in a sub-network.

* The AC adapter supplied with the BVMK-R10 must be used when connecting the controller to these monitors.

Inputs / Outputs
_______________________
Serial Remote (LAN): LAN connector (100BASE-TX)
Parallel Remote:
- RJ-45 (x1)
- DC IN
- DC 12V, Circular Pin (x1)
USB:
- USB connector (USB2.0)
- USB Standard A x 1

General
_______________________
Power:
- DC input: 12V, 0.5A
- Supplied AC adapter
- AC input 100V to 240V, 50/60HZ,
- DC output: 12V, 3A
Power consumption: Approx. 6W
Operating temperature: 0°C to 35°C (recommended range: 20°C to 30°C)
Operating humidity: 0% to 90% (non-condensing)
Operating pressure: 700 hPa to 1060 hPa
Dimensions: Approx. 424 x 58.8 x 169.6 mm (16 3/4 x 2 3/8 x 6 3/4 inches)
Weight: Approx. 2.0Kg (Approx. 4 lb. 7 oz.)
