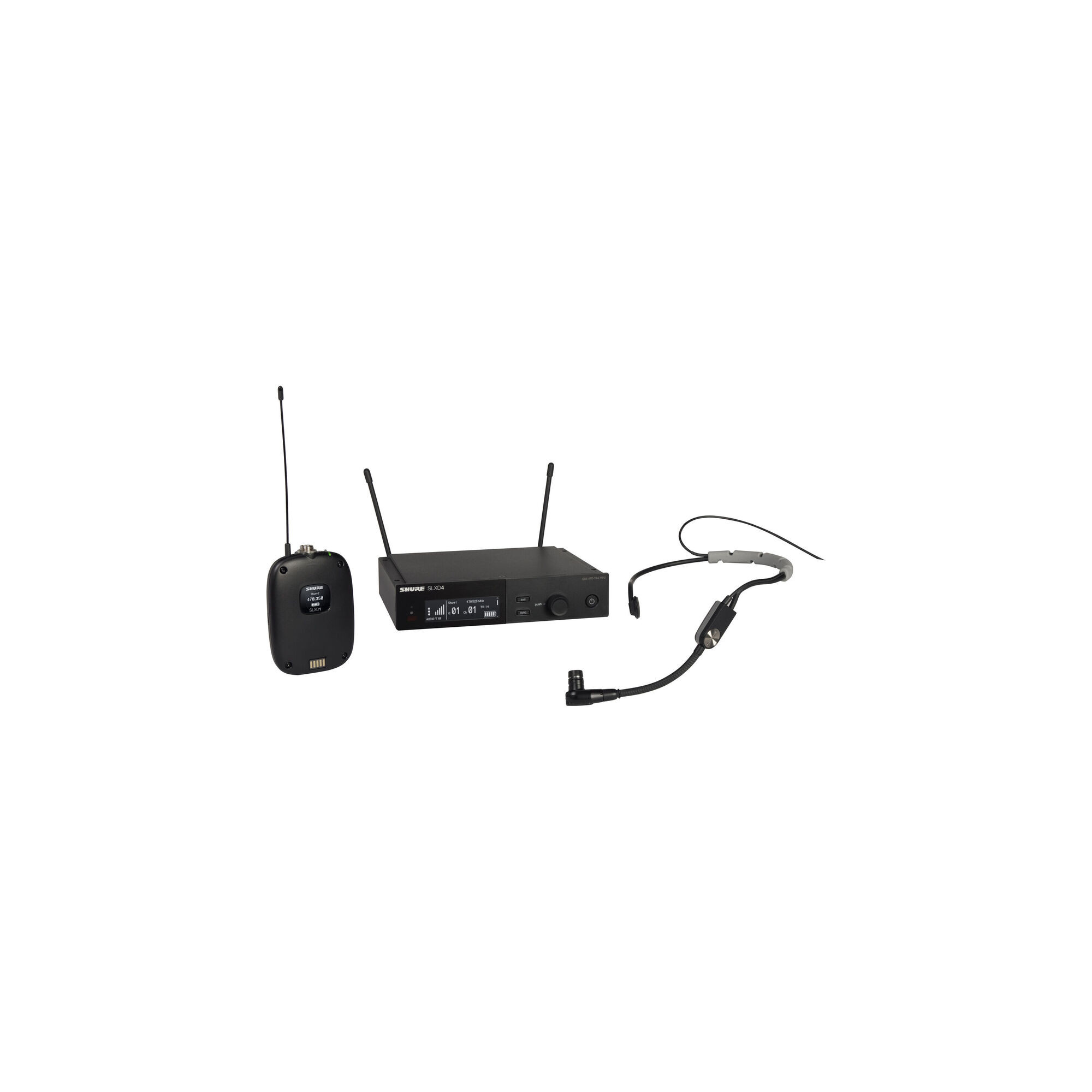

SLXD14ESM35-J53

System
Wireless Transmission Digital UHF
Number of RF Channels 1760
Included Transmitters 1 x Bodypack with Microphone
Diversity True Digital Diversity
RF Frequency Band G58:
470 to 514 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328'' / 100 m
Max Systems per Setup 32
Sample Rate/Resolution 24-Bit
Latency 3.2 ms
Dynamic Range 120 dBA (Typical)
Encryption None
Receiver
Form Factor Tabletop / Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced Output
Gain Range 0 to +21 dB (3 dB Steps)
Pad 30 dB
Audio Output Level -18 to +42 dB (Balanced, Unbalanced)
Phantom Power Protection On 1/4", XLR Outputs
Frequency Response 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols DHCP, Manual IP
Impedance 1/4" Output:
1.3 Kilohms (Balanced)
670 Ohms (Unbalanced)
XLR Output:
400 Ohms (Balanced)
150 Ohms (Balanced)
Adjacent Channel Isolation >70 dB
Spurious Rejection: >75 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 600 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators LCD (AF Level, Channel, Frequency, Group, RF Level, Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
Weight 1.8 lb / 816 g (without Antenna)
Transmitter 1
Transmitter
Form Factor Bodypack with Microphone
RF Output Power 1 / 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Pad None
Auto-Level Control No
Gain Range 0 +21 dB
Signal Processing None
Sync Method IR
Antenna 1/4 Wave External, Fixed
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time 1.25 to 5.5 Hours
Approx. Battery Life 8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
USB/Lightning Connectivity None
Display & Indicators LCD (Battery Status, Channel, Group)
Housing ABS, Plastic
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 2.7 x 3.9 x 1" / 68 x 98 x 25.5 mm
Weight 3.1 oz / 89 g
Microphone
Form Factor Headset
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Cardioid
Frequency Range 40 Hz to 20 kHz
Maximum SPL 153 dB SPL
Impedance 2400 Ohms
Sensitivity -59 dBV/Pa
CMRR None
Dynamic Range 102.5 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female Unbalanced
Cable Length 4'' / 1.22 m
Operating Voltage 5 to 10 V
Weight 2.54 oz / 72 g
General
Packaging Info
Package Weight 7.07 lb
Box Dimensions (LxWxH) 17.7 x 13.9 x 4.5"
