Sennheiser

4044155247268
Digital Wireless Combo Microphone System (R4-9: 552 to 607 MHz)
go to the technical sheet
€ 659,92

€ 613,88 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

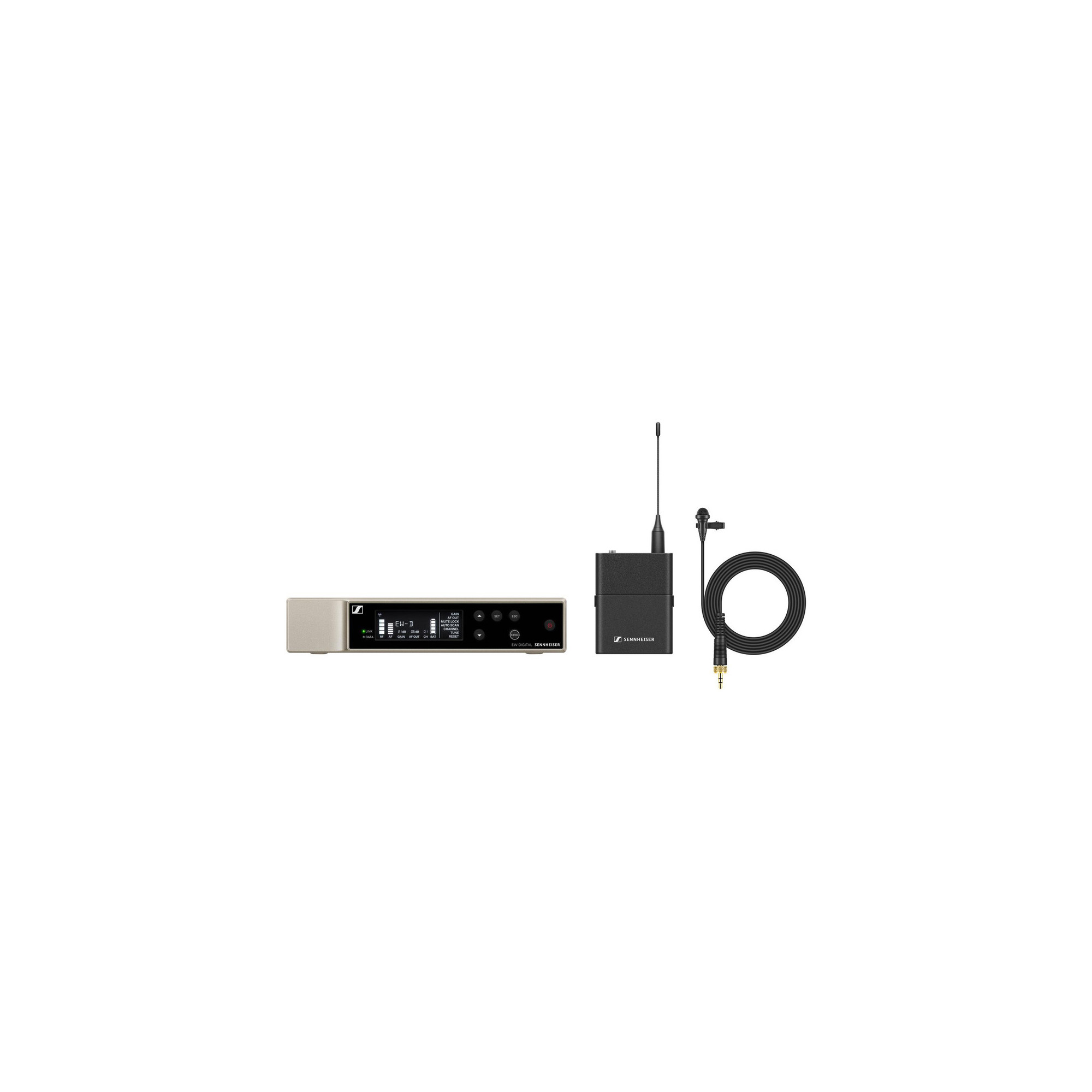

Sennheiser Wireless System Set with Lavalier Microphone and Receiver for Fixed Installation Frequency Band: (552 - 607.8 MHz)
Sennheiser launches a new series of wireless microphones with digital protocol: Evolution Wireless Digital (EW-D). These wireless microphone systems go beyond the limits currently imposed by technology to offer more dynamic range than any wireless microphone currently on the market. With the most reliable automatic signal scan in seconds and up to 90 channels thanks to the 56 MHz bandwidth, it's easy to see how the Evolution Wireless Digital are best in their class. Versatile and packed with features, the Sennheiser EW-D ME2 Set is ideal for speech and presenters. Also manageable via the EW-D Smart Assist app, this wireless system with omnidirectional ME 2 lavalier microphone ensures high speech intelligibility, for everyday applications or on stage.
Package Contents.
EW-D EM rack receiver
EW-D SK bodypack transmitter
ME 2 lavalier microphone
2 antennas
Power supply with adapters
Rack mount set
4 rubber feet
Documentation
fast guide
safety guide

Specifications:

Frequency band: (552 - 607.8 MHz)
Cable length: approx. 1.60mt
THD, total harmonic distortion: -60 dB for 1 kHz @ -3 dBfs input level
Audio frequency response: 20Hz - 20kHz (-3dB) @ 3dBfs

EW-D EM
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
Current consumption: 300mA
Input voltage range: 11 - 13 V
Transmission power: BLE: max. 10 mW EIRP
Audio output level: 18 dBu max.

EW-D SK
Dimensions: 63 x 80 x 20mm (without antenna)
Weight: approx. 120 g
Power supply: 2 x AA 1.5V alkaline or BA 70 battery
Current consumption: <300mA
Input voltage range: 2.0 - 4.35 V
Transmission power: Audio link: 10mW, ERP (Range Y1-3: 12mW ERP), BLE: max. 10 mW EIRP

ME 2
Cable length: approx. 1.60mt
Connector: 3.5mm jack
Frequency Response: 50 - 18,000Hz
Max SPL: 130 dB
Transducer principle: pre-polarized capacitor
Polarity: omnidirectional
Sensitivity in free field, no load (1kHz): 17 mV / Pa
Equivalent noise level: 32 dB
Power supply: 7.5V
