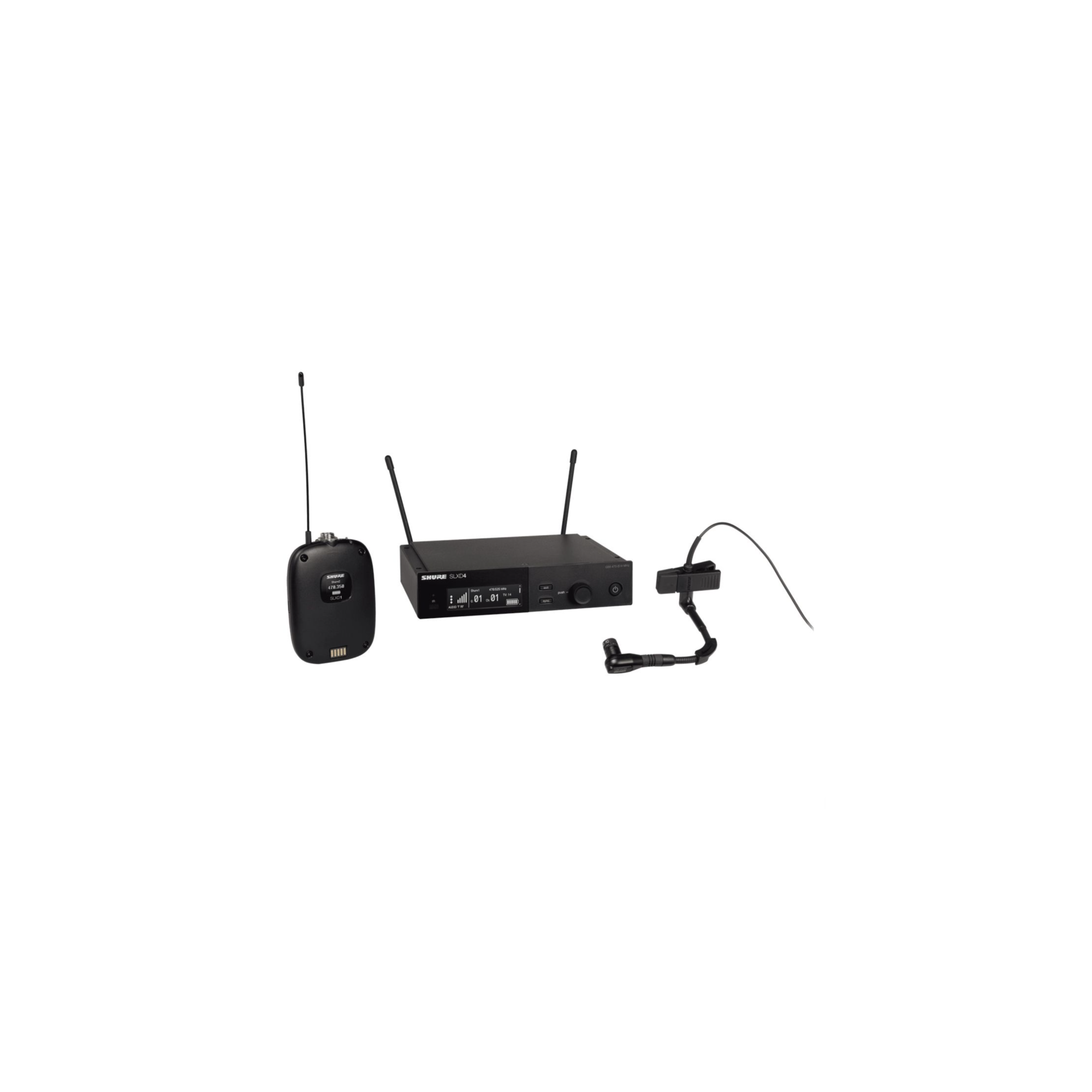

SLXD14E98H-J53

Wireless Transmission : Digital UHF
Number of RF Channels : 1840
Included Transmitters : 1 x Bodypack with Microphone
Diversity : True Digital Diversity
RF Frequency Band J52:
558 to 602 MHz
614 to 616 MHz
RF Bandwidth : 46 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning : Auto-Scan
Max Operating Range : 328'' / 100 m
Max Systems per Setup: 32
Sample Rate/Resolution : 24-Bit
Latency : 3.2 ms
Dynamic Range: 120 dBA (Typical)
Encryption : None

Receiver
Form Factor: Tabletop / Rackmount
Mounting Options: Rackmount, Tabletop (with Included Hardware)
Rackmount Size : 1 RU (1/2 Rack)
Antenna : 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels: 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced Output
Gain Range 0 to +21 dB (3 dB Steps)
Pad : 30 dB
Audio Output Level: -18 to +42 dB (Balanced, Unbalanced)
Phantom Power Protection: On 1/4", XLR Outputs
Frequency Response : 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols : DHCP, Manual IP
Impedance 1/4" Output:
1.3 Kilohms (Balanced)
670 Ohms (Unbalanced)
XLR Output:
400 Ohms (Balanced)
150 Ohms (Balanced)
Adjacent Channel Isolation: >70 dB
Spurious Rejection: >75 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 15 VDC at 600 mA, Center-Positive (Included)
AC Input Power : 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: LCD (AF Level, Channel, Frequency, Group, RF Level, Transmitter Battery Status)
Housing : Steel
Operating Temperature : 0 to 122°F / -17 to 50°C
Storage Temperature : -20 to 165°F / -28 to 73°C
Dimensions : 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
Weight : 1.8 lb / 816 g (without Antenna)

Transmitter 1
Transmitter
Form Factor: Bodypack with Microphone
RF Output Power: 1 / 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Pad : None
Muting: None
Auto-Level Control: No
Gain Range : 0 +21 dB
Signal Processing: None
Sync Method: IR
Antenna : 1/4 Wave External, Fixed
Power Requirements : Battery
Battery Type : 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time : 1.25 to 5.5 Hours
Approx. Battery Life : 8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
USB/Lightning Connectivity : None
Display & Indicators : LCD (Battery Status, Channel, Group)
Housing : ABS, Plastic
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature : -20 to 165°F / -28 to 73°C
Dimensions: 2.7 x 3.9 x 1" / 68 x 98 x 25.5 mm
Weight : 3.1 oz / 89 g

Microphone

Form Factor: Lavalier
Color : Black
Sound Field: Mono
Capsule : Electret Condenser
Polar Pattern : Omnidirectional
Frequency Range: 50 Hz to 20 kHz
Equivalent Noise Level: 18 dB A-Weighted
Maximum SPL : 120 dB SPL
Impedance: 3000 Ohms
Sensitivity : -38 dBV/Pa
CMRR: None
Dynamic Range : 102 dB
Output Connectors: 1 x TA4/Mini XLR 4-Pin Female Unbalanced
Cable Length : 4'' / 1.22 m
Operating Voltage: 2 to 10 V
