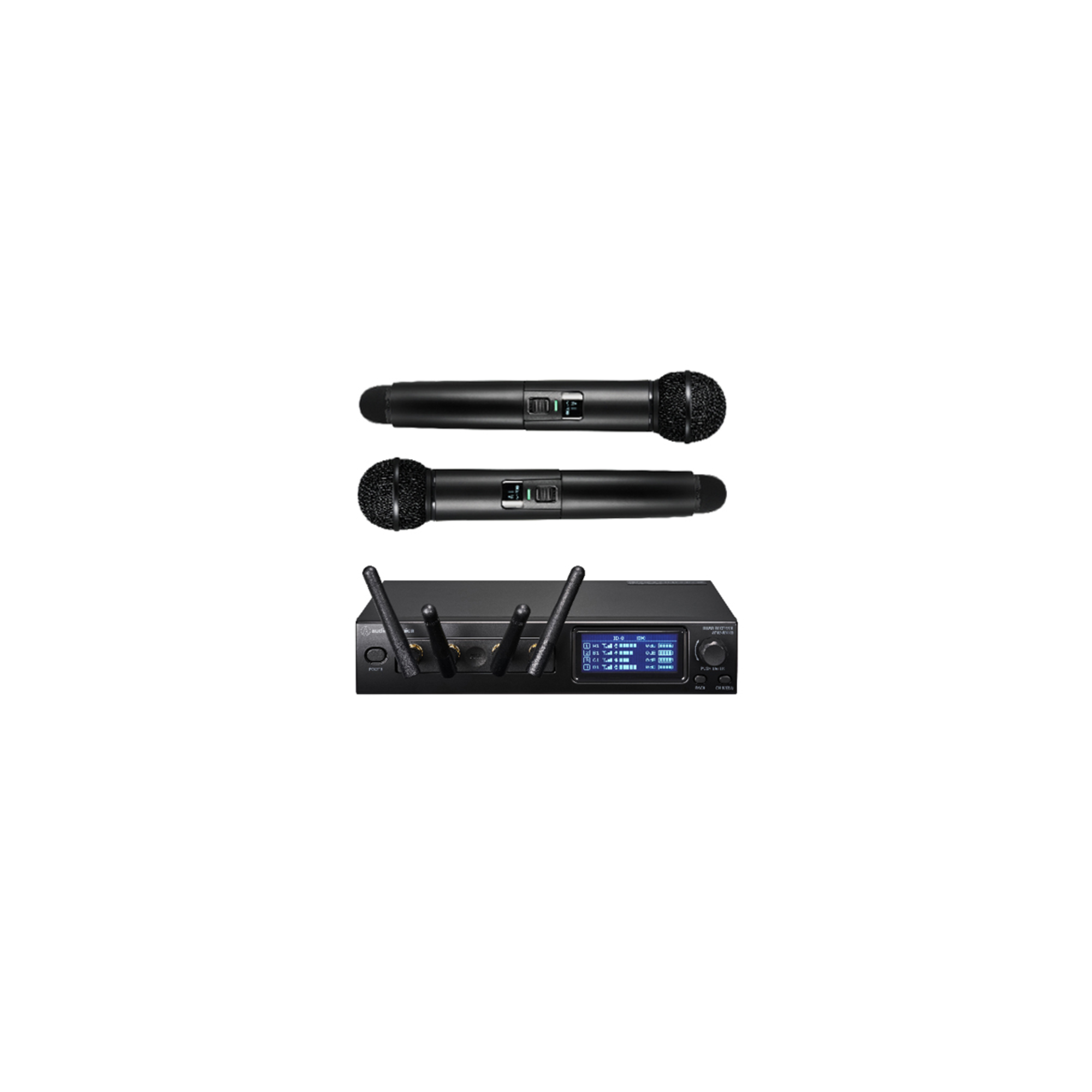

ATW-1422

System
Wireless Technology: Digital 2.4 GHz
Diversity: Yes
RF Frequency Band: 2402 to 2480 MHz
Max Operating Range: 196.9'' / 60 m (Line of Sight)
Max Transmitters per Band: 20
Dynamic Range: >120 dB (Typical)
Latency: 2.8 to 6.7 ms
Encryption: 128-Bit
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: No

Receiver
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 4x Removable SMA External (Front-Mount)
Number of Audio Channels: 4
Audio I/O: 4x XLR 3-Pin Balanced Output
Network I/O:
- 2x RJ45 (Ethernet)
- 2x RJ12 (Link)
USB/Lightning Connectivity: No
Gain Range: -20 to +20 dB
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
Display: Backlit LCD
Power Requirements: AC/DC Power Adapter

Transmitters
Included Transmitters: 2x Handheld
RF Output Power: 10 mW
Antenna: Internal
Input Level: Microphone
Audio I/O: No
Bias/Plug-In & Phantom Power: Bias/Plug-In Power is Unspecified by Manufacturer No Phantom Support
USB I/O: No
Muting: Off/On Switch
Gain Range: -10 to +20 dB
Auto-Level/Gain: No
Frequency Response: 20 Hz to 20 kHz
Sync Method: Proprietary
Display: OLED

Microphones
Microphone Type: 2x Handheld
Polar Pattern: Hypercardioid
Color: Black

Power
Transmitter Battery Type: 2x AA (Not Included)
Transmitter Battery Life:
- 18 Hours (Alkaline)
- 35 Hours (Lithium)
AC/DC Power Adapter: 12 VDC at 0.5 A (Included)
Input Power:
- 12 VDC at 0.5 A
- 100 to 240 VAC, 60 / 50 Hz

Physical
Housing:
- Metal (Receiver)
- Plastic (Transmitter)
Dimensions:
- Receiver: 8.3 x 1.7 x 6.7" / 209.8 x 44 x 169.3 mm
- Trasmitter: 2.1 x 10.4" / 53.7 x 265 mm
Weight:
- Receiver: 28.8 oz / 817 g
- Transmitter: 10.6 oz / 300 g (without Batteries)

1x ATW-1422
1x Power supply
1x Rack mount adapter with screws
1x Plate for joining two chassis
1x RJ12 cable
