ATW-3211 EE1

Name: ATW-3211 EE1
Brand: Audiotechnica
SKU: ATW-3211 EE1
Price: 630.23 EUR
Availability: OutOfStock

Audiotechnica

Series Bodypack Wireless Microphone System with No Mic (EE1: 530 to 590 MHz)

go to the technical sheet

-2.5%

Save 2.5%

€ 630,23

€ 586,26 VAT excl.

€ 646,40

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

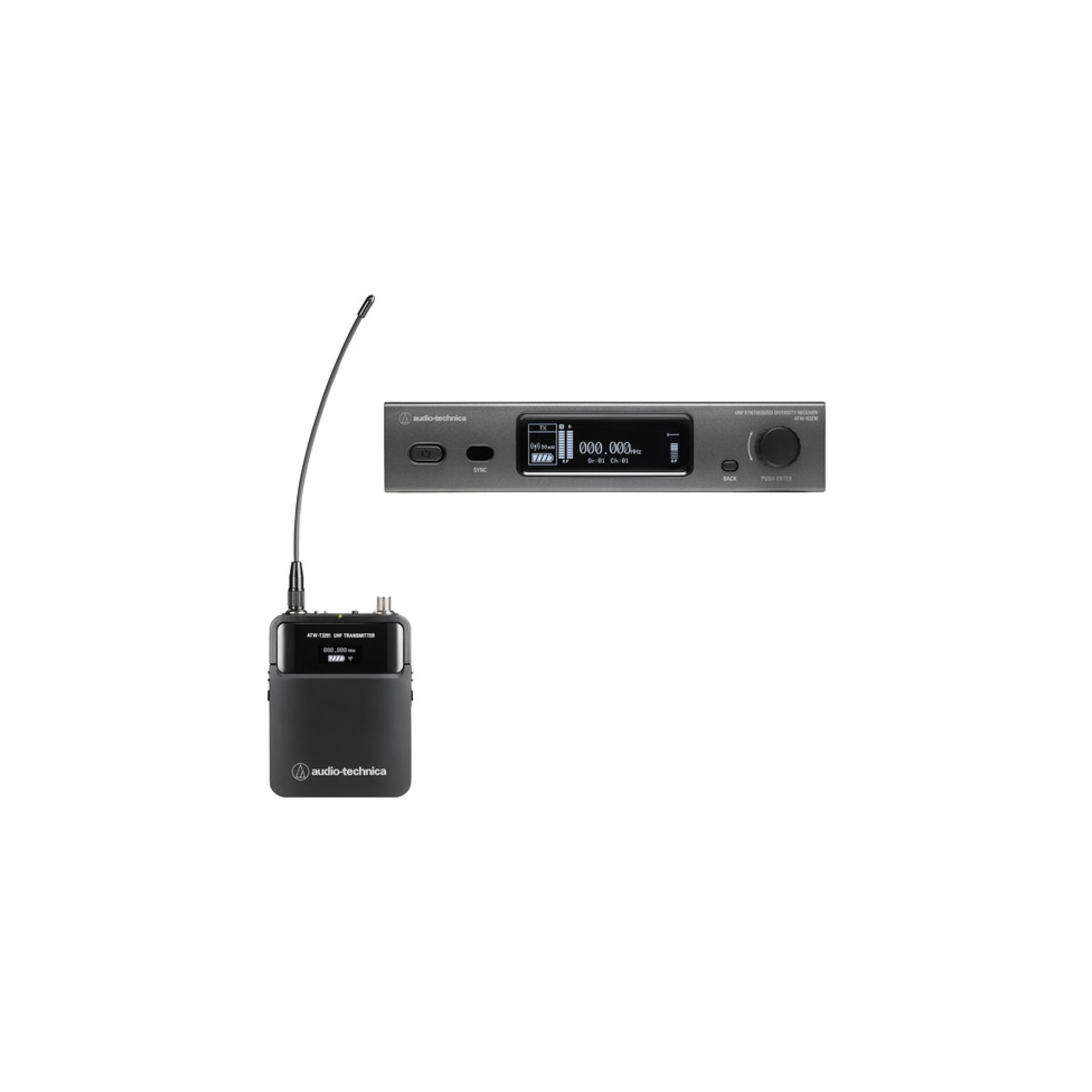

Audio-Technica ATW-3211 3000 Series Bodypack Wireless Microphone System with No Mic (EE1: 530 to 590 MHz)

The Audio-Technica ATW-3211 is a 3000 Series (4th generation) rackmount wireless microphone system with professional-level features for enhanced reliability and control.
It offers Ethernet networking for quick multichannel setups and an intuitive interface with a dual-mode OLED display for easy operation.
With a wide 60 MHz tuning range and true-diversity reception, the system minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages.

The ATW-3211 includes a half-rack receiver housed in a rugged, full-metal chassis with removable antennas, well suited for rackmounting in portable flight cases or permanent installations. The receiver's auto-scan function searches 2400 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission.
The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter's multifunction button in the event of unexpected interference.

This system features a bodypack transmitter equipped with a rugged metal housing and a proprietary Hirose 4-pin cH-style screw-down connector for secure connection with a compatible lavalier or headset microphone of your choice or an instrument cable.
The transmitter provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments.
The transmission range is up to 330'. Up to 40 mic channels can operate simultaneously in each frequency band.

System
Wireless Technology: Analog UHF
Number of RF Channel Frequencies: 2400
Included Transmitters: 1 x Bodypack
Diversity: True Diversity
RF Frequency Band: DE2: 530 to 589.975 MHz
RF Bandwidth: 60 MHz
Frequency Step Size: 25 kHz
Max Operating Range: 328.1'' / 100 m
Max Transmitters per Band: 40
Dynamic Range:
° 115 dB (Mic Input)
° 112 dB (Instrument Input)
Encryption: None
Deviation: ±38 kHz
Modulation: FM

Receiver
Receiver Type: Tabletop
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x External, BNC (Rear-Mount)
Antenna Bias Voltage: 12 VDC, 160 mA (Combined)
Number of Audio Channels: 1
Audio I/O:
° 1 x XLR 3-Pin Male Balanced Output
° 1 x 1/4" TS Female Unbalanced Output
Gain Range: -60 to 0 dB (2 dB Steps)
Audio Output Level:
° XLR Output:
+14 dBV
1/4" Output:
+8 dBV
Frequency Response: 31 Hz to 15.5 kHz (Dependent on Mic)
Approximate RF Sensitivity: 20 dBuV
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 12 VDC at 1 A, Center-Positive (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators:
° 1 x Backlit OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Dimensions: 8.3 x 1.7 x 7.5" / 210 x 43.4 x 191 mm
Weight: 38.8 oz / 1100 g

Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 / 30 mW (Switchable, at 50 Ohms)
Audio I/O: 1 x Hirose cH-Style 4-Pin Male Input (Lockable)
Muting: Mute Switch
Gain Range: -10 to +20 dB (2 dB Steps)
Signal Processing:
° High-Pass Filter:
125 Hz, 12 dB/Octave Slope
Sync Method: IR
Antenna: 1 x Flexible Whip, Detachable (Beltpack)
Power Requirements: Battery
Battery Type:
° 2 x AA (Not Included)
° 2 x Rechargeable (Not Included)
Approx. Battery Life
° Low:
9 Hours (Alkaline)
9.5 Hours (NiMH Rechargeable)
° High:
8 Hours (Alkaline)
9 Hours (NiMH Rechargeable)
Display & Indicators:
° 1 x Backlit OLED (Battery Status, High-Pass Filter, Mute, RF Output Power)
Housing: Metal
Dimensions: 2.5 x 0.9 x 3.2" / 64 x 23 x 82 mm
Weight: 3.6 oz / 102 g (without Batteries)

Packaging Info
Package Weight: 5.18 lb/2.35 kg
Box Dimensions: 15.25 x 13.45 x 3.2"/39 x 34 x 8 cm

Audio-Technica ATW-3211 3000 Series Bodypack Wireless Microphone System with No Mic (EE1: 530 to 590 MHz)
Audio-Technica ATW-R3210 3000 Series Wireless Receiver (EE1: 530 to 590 MHz)
Audio-Technica ATW-T3201 3000 Series Bodypack Transmitter (EE1: 530 to 590 MHz)
2x Flexible Antennas
AC Power Adapter
Rackmounting Kit
