XSw 1 ME3 A

Name: XSw 1 ME3 A
Brand: Sennheiser
SKU: XSw 1 ME3 A
Price: 792413 NGN
Availability: OutOfStock

Sennheiser

EAN: 4044155213126

UHF headmic set (A: 548 to 572 MHz), up to 10 compatible channels - 506987

go to the technical sheet

₦ 792,413.00

₦ 737,128.22 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

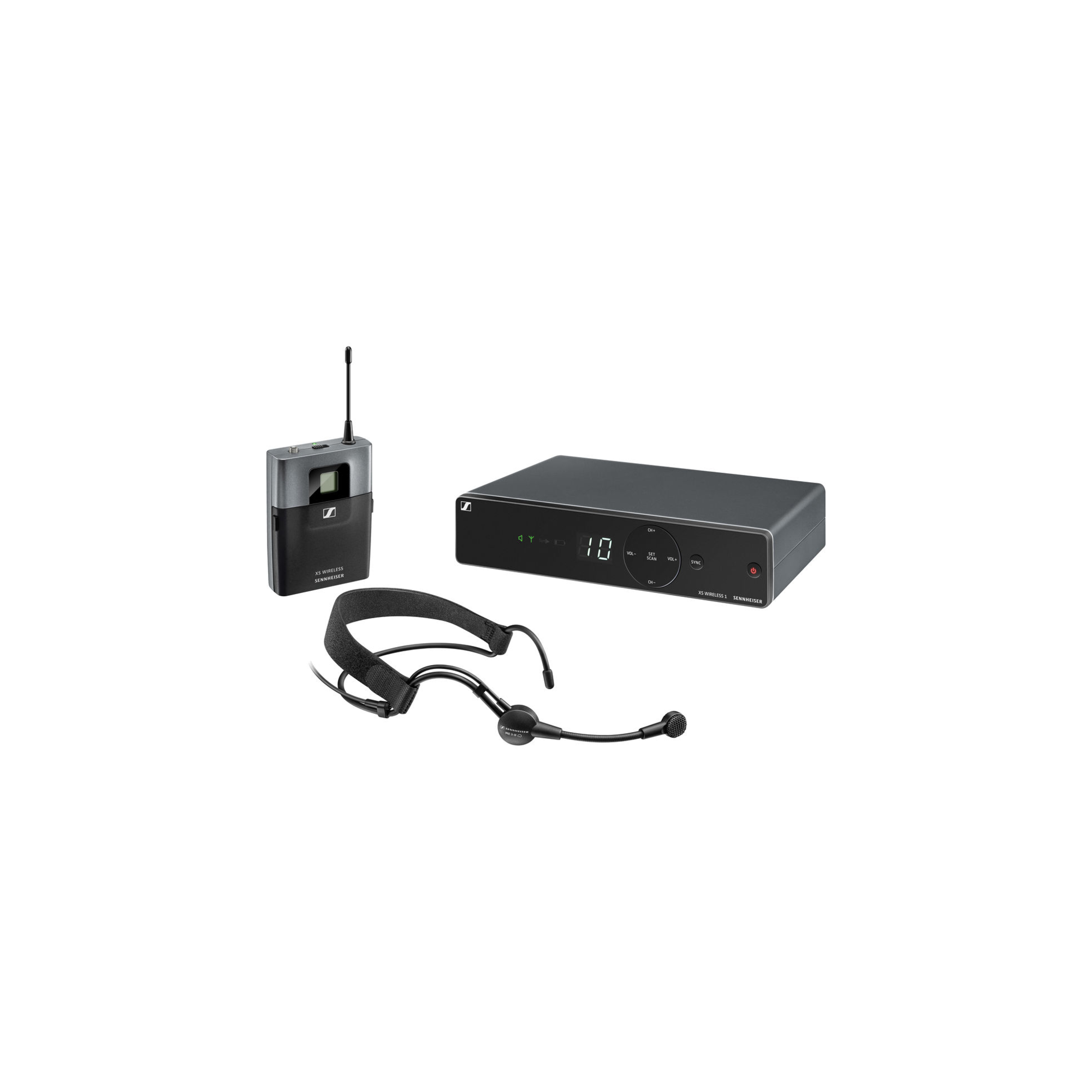

Sennheiser XSW 1-ME3-A Tasca transmitter, Headset ME3 II microphone and a fixed receiver Switching Diversity, Range A (A: 548 to 572 MHz) - 506987

The XSW 1-ME3-A UHF Headmic Set from Sennheiser is an easy to use all-in-one wireless system for singers and presenters.
It can be used to keep your hands free and capture audio for live sound applications and performers who dance and sing.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a headset microphone.
It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel.
Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

- Featuring Sennheiser's evolution ME 3-II headmic
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Diversity reception

System
Modulation: Wideband FM
Frequency Range: A: 548 to 572 MHz
Switching Bandwidth: Up to 24 MHz
Signal to Noise Ratio: greater than or equal 103 dBA
Total Harmonic Distortion: less than or equal 0.9%
Temperature Range: Operation: 32 to 104°F (0 to +40°C)
Storage: -4 to 158°F (-20 to 70°C)
Transmitter Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

Receiver
Principle: Double superheterodyne
Diversity: Antenna switching diversity via internal antennas
Sensitivity: < 3 µV at 52 dBA RMS S/N (at peak deviation)
Frequency Response: 50 Hz to 16 kHz (-3 dB)
Max Output Voltage:
At Peak Deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment Range: Audio: 45 dB, adjustable in 5-dB steps
Power Supply: 12 VDC nominal, 300 mA
Squelch: Adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
Line/Mic Level: 20 dB, switchable
Material of Construction: ABS housing
Dimensions: 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight: 12 oz (340 g)

Bodypack Transmitter
Output Power: 10 mW
Frequency Response:
- Line: 50 Hz to 16 kHz
- Mic: 50 Hz to 16 kHz
Audio Input: 1/8" (3.5 mm) jack socket
Input Voltage: Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply: 2x AA batteries, 1.5 V
Operating Time: Approximately 10 hours
Adjustment Range: Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction: Rugged ABS housing
Dimensions: 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
Weight: 3.4 oz (95 g)

Headset
Microphone Type: Condenser, pre-polarized
Sensitivity: 1.6 mV/Pa
Polar Pattern: Cardioid
Max SPL: 150 dB

1x XSW 1-ME3-A UHF Headmic Set (A: 548 to 572 MHz)
1x ME 3-II Headmic with Cardioid Capsule for Wireless Systems
1x Foam Windshield
1x NT12-5 CW Power Supply
2x AA Batteries
