A20-Nexus Go

Sound Devices 4-Channel Digital Wireless Receiver (169 to 1525 MHz) - Black

° 4-Channel Ultra-High-Performance True-Diversity Receiver in Half-Rack Size

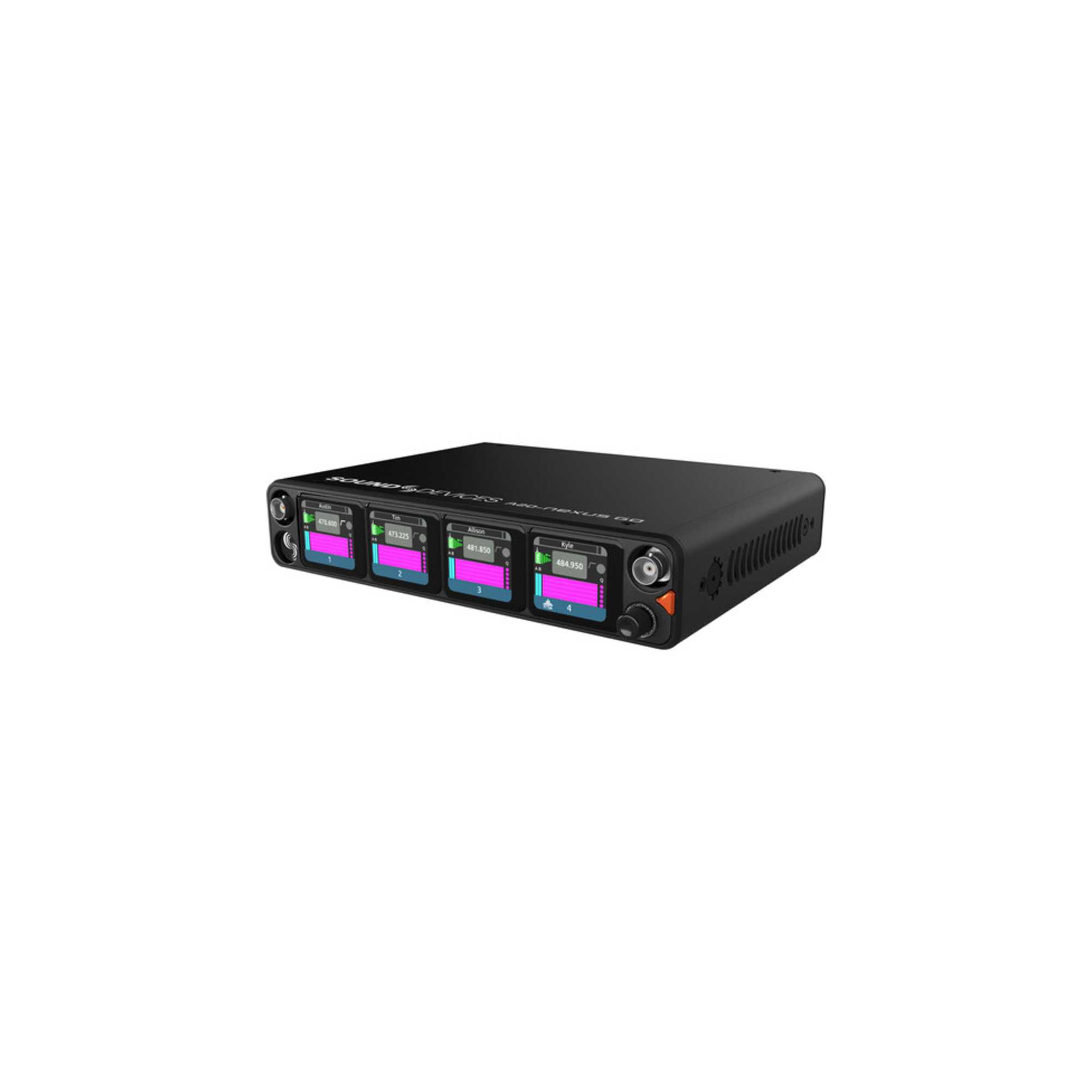

Made with portability in mind, the Sound Devices A20-Nexus Go is a professional true-diversity digital wireless receiver that won't weigh you down when you're doing bag work.
It comes with four receiver channels and can be expanded to six and eight channels via software license (available separately) - without additional hardware.
And when you need to transition to a rack or cart, the A20-Nexus Go receiver's 1 RU, half-rack size will save you space there too.

The A20-Nexus Go receiver is packed with features to speed up your workflow, whether you're working in the field on a production set.
With a wide SpectraBand tuning range of 169 to 1525 MHz you can reliably find open spectrum, even in the busiest VHF and UHF TV band.
AutoAssign enables automatic deployment of clean frequencies in seconds, while the Integrated Real Time Spectrum Analyzer (RTSA) and scanning functions provide fast and intuitive frequency coordination for multiple transmitters.
And with long-range NexLink remote control and GainForward, you can conveniently set your transmitter level and make adjustments directly from the A20-Nexus Go receiver, without having to go to the talent.

Offering mic, line, and AES3 audio outputs, along with flexible power via DC input, 8-Series, or AC mains (with optional adapter), the A20-Nexus Go can seamlessly adapt to your workflow and is equally at home in a rack, bag, or docked to an 8-Series mixer recorder for cable-free operation.

4-channel ultra-high-performance, true-diversity receivers in a 1 RU, half-rack size.
Expandable to 6 or 8 channels via A20-Nexus Go 2-Channel Expansion Licenses.
169 MHz to 1525 MHz tuning range via Sound Devices' proprietary SpectraBand Technology.
Sound Devices NexLink: integrated, long-distance remote control of all wireless transmitters, including group power on/off.
AutoAssign: automatic deployment of clean frequencies in seconds.
Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
Flexible powering: via DC input, 8-Series, or AC mains (with optional adapter).
DB-25 connector for 8 channels of mic, line, or AES outputs.
Wide, 6.2" color OLED array with touch for control and monitoring.
A20-QuickDock allows docking and undocking in seconds from Sound Devices 8-Series mixer-recorders with no tools or additional hardware.
Supports GainForward Architecture: No gain setting on the A20 transmitter. Adjust gain at the receiver or mixer.
100% digital long-range modulation delivers the longest transmission distance of any digital system on the market.
RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
Excellent audio quality, full 10 Hz to 20 kHz audio bandwidth.
BNC Wordclock input and timecode input for auto timecode sync of transmitters over NexLink.
2 DC outputs for powering peripherals.
Front panel and rear panel BNC antenna inputs. Compatible with passive and bias-powered antennas.
Supports control of the Wisycom LFA smart antenna.
Cascade out option on rear BNCs for cascading multiple A20-Nexus Go units.
USB-A port for thumb drives, keyboards, transmitter pairing, and timecode syncing (supports USB hubs).
