U3

Name: U3
Brand: Xvive
SKU: U3
Price: 377915 NGN
Availability: OutOfStock

Xvive

EAN: 6946042304000

Set Wireless Plug-On System for Dynamic Microphones (2.4 GHz)

go to the technical sheet

₦ 377,915.00

₦ 351,549.00 VAT excl.

Available in 4 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

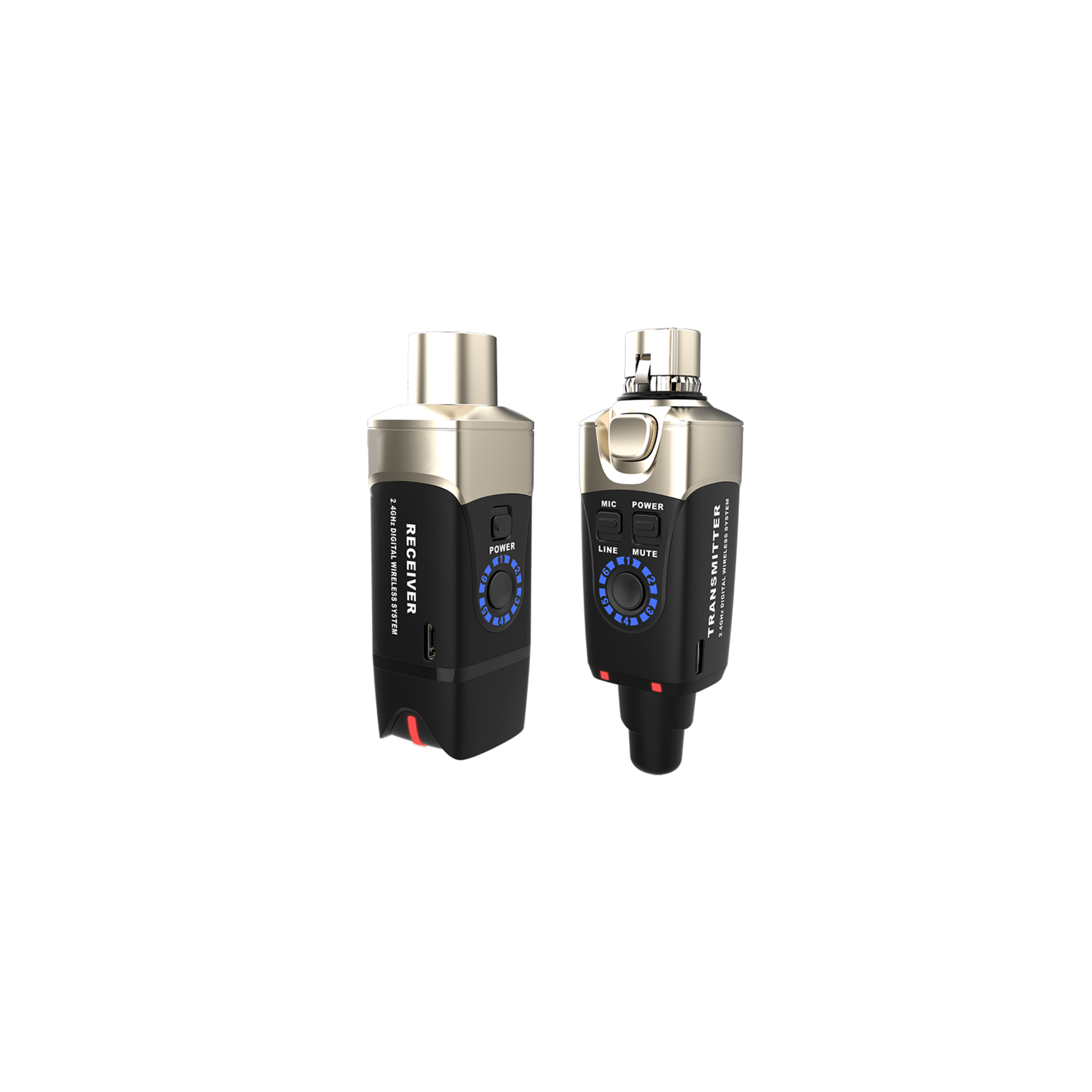

Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to a 90' range, and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship.

In the Box

Xvive Audio U3 2.4 GHz Digital Wireless Microphone System
2 x Rechargeable Batteries
USB Cable
Bag

Download

Manuale

Download (745.31KB)

Xvive Audio U3 Specs
Wireless 2.4 GHz
Tuning Bandwidth 2400 to 2483.5 MHz
Frequency Response 20 Hz to 20 kHz (-3 dB)
Latency <5 ms
Channels Up to 6 simultaneous channels
Range Up to 90'' / 27 m
Audio High Resolution 24-bit / 48 kb/s
Dynamic Range 110 dB
SNR 110 dB
RF Sensitivity -88 dBm
Total Harmonic Distortion 0.2%
RF Output Power 10 mW E.I.R.P. max
Ports Transmitter: 1 x XLR male input
1 x USB

Receiver: 1 x XLR female output
1 x USB
Maximum Input Level Mic Mode: 2.8 V p-p
Line Mode: 7 V p-p
Maximum Output Level 2.8 V p-p
Gain Adjustment Range Mic: 0 dB
Line: -10 dB
Antenna Type 1/4 Wave Sleeve Dipole, non-removable on transmitter and receiver
Antenna Impedance 50 Ohms
Impedance Transmitter: 15 kOhms, 1 kHz
Receiver: 470 Ohms, 1 kHz
Battery 3.7 V rechargeable Li-ion, 860 mA for transmitter and receiver
Rechargeable Battery Life 5 hours
Operating Temperature -0.4 to 134.6°F / -18 to 57°C
Housing Molded plastic and cast metal
Dimensions Transmitter: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm
Receiver: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm
Weight Transmitter: 3.3 oz / 93 g
Receiver: 3.2 oz / 92 g
Packaging Info
Package Weight 0.92 lb
Box Dimensions (LxWxH) 6.4 x 4.4 x 2.6"
