Sennheiser

4044155260908
Portable transmitter, without microphone capsule (Q1-9: 470 to 550 MHz) 509412
go to the technical sheet
₦ 804,851.00

₦ 748,699.00 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

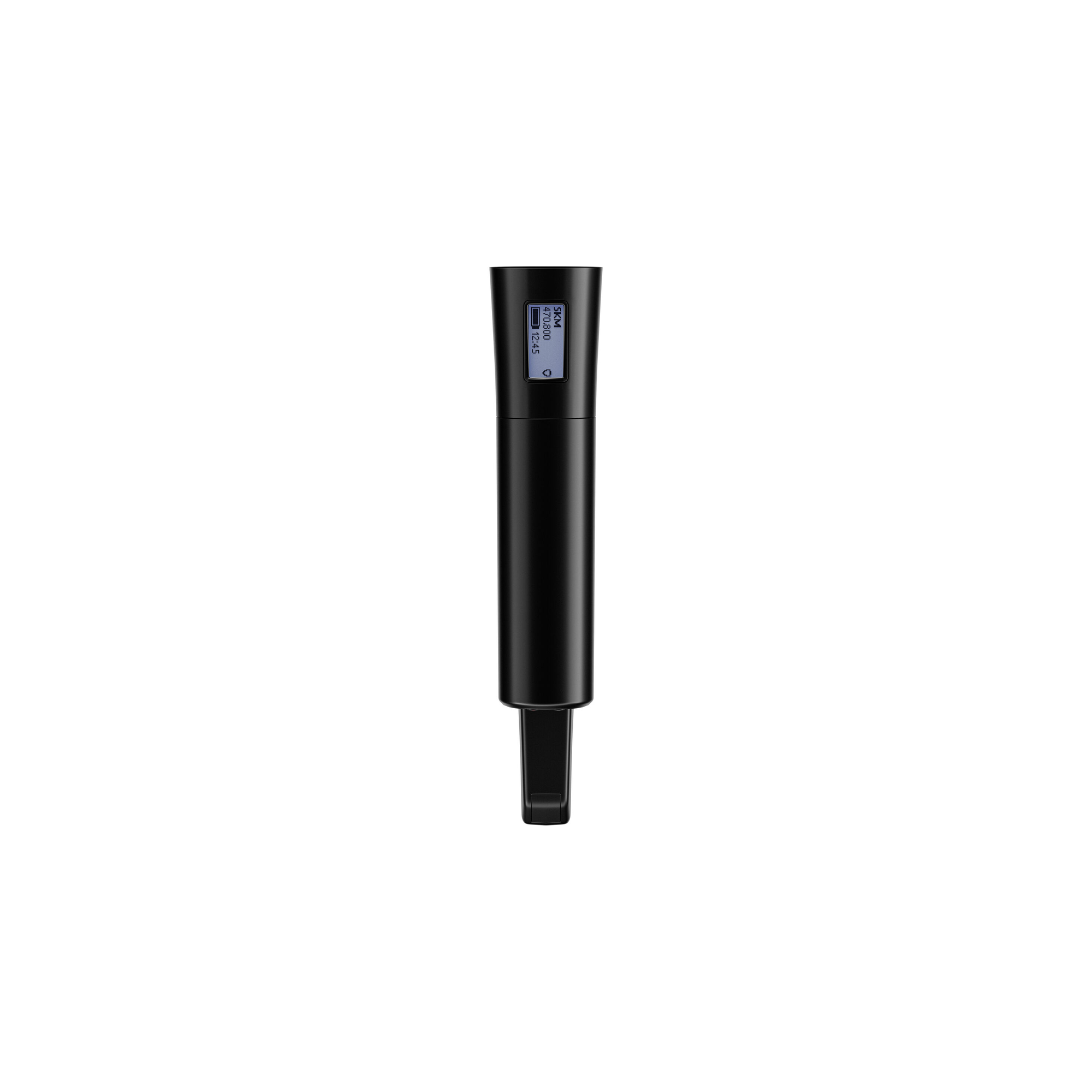

Sennheiser Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (Q1-9: 470 to 550 MHz) - 509412

The Sennheiser EW-DX SKM-S is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers.
Well suited for a wide range of professional performance and presentation applications, the transmitter features a programmable mute switch and is offered without a capsule included, so you can choose the one that best fits your application.
Lightweight and comfortable for performers and presenters to hold, the transmitter features a rugged, all-metal housing built to withstand daily use on stage.

- For EW-DX Digital Wireless Receivers
- Interchangeable Mic Capsule Design
- 134 dB of Dynamic Range, 24-Bit Audio
- 3200 Frequencies on Equidistant Grid
- Mute Switch, e-Ink Display
- Durable Metal Housing
- Set Up/Operate from Receiver or Phone
- In-Device Charging
- 8-Hour AA /12-Hour Rechargeable Battery

Compatible Microphone Capsules
The EW-DX SKM-S offers an interchangeable capsule design that allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to cardioid to narrow supercardioid.
Capsules include the MMD 835, MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, MM 445, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.


RF Frequency Band: Q1-9: 470 to 550 MHz
RF Bandwidth: 80 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1'' / 100 m (Line of Sight)
Built-In Recorder: No
Mobile App Compatible:
Yes: Android & iOS
*As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Bluetooth: 5.1 LE
Bluetooth Operating Distance: 120'' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution: 24-Bit
Latency: 1.9 ms
Encryption: AES 256

Transmitter
Transmitter Type: Handheld
RF Output Power:
- 10 mW (ERP)
- 10 mW (EIRP)
Audio I/O: No
Included Cable Connector: No
Muting: Mute Switch
Audio Input Level: 2 to 4.35 V
Auto-Level Control: No
Frequency Response: 20 Hz to 20 kHz -3 dB
Sync Method: Bluetooth
Antenna: 1 x Internal (Handheld)
Power Requirements: Battery
Battery Type:
- 1 x Sennheiser Battery Pack (Included)
- 2 x AA (Not Included)
Approx. Battery Life:
- 12 Hours (Sennheiser Battery Pack)
- 8 Hours (Alkaline)
Display & Indicators: 1 x Backlit LCD (Battery Status, Mute)
Housing: Metal
Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95%
Dimensions: 2 x 10.6" / 50 x 268 mm
Weight: 10.7 oz / 304 g

Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (Q1-9: 470 to 550 MHz)
Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
2x AA Battery
