URX-P40K42

Sony

4548736106642
Wireless Receiver for Sony Uwp-D(2019 series) 638,025-694,00 MHz
go to the technical sheet
₦ 657,308.00

₦ 611,449.00 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

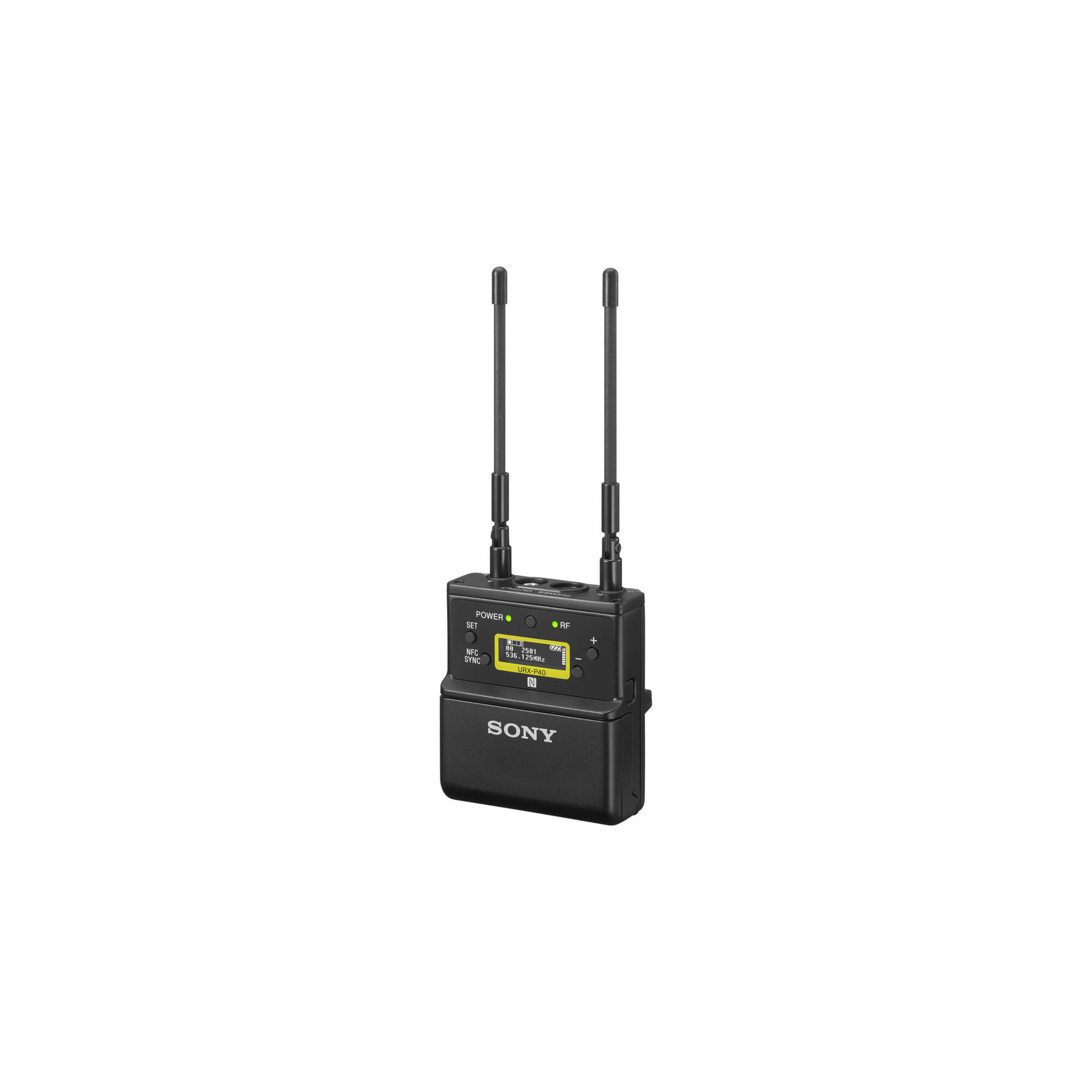

Sony Radio Receiver - 638,025 MHz ~ 694,000 MHz
A High-resolution content becomes more prevalent in the video production industry, the demand for high-quality audio solutions is increasing. Today's content creators are faced with the challenge of capturing high-quality audio quickly, reliably, and with limited resources.
Featuring exceptional sound quality with digital processing, reliable RF transmission, dual tuner true diversity reception and user-friendly features, the UWP-D Series is ideal for ENG (Electronic News Gathering) and EFP (Electronic Field Production) applications, as well as documentaries and weddings.

° High-quality sound with Sony digital audio processing
° NFC SYNC function for quick, intuitive and secure channel setting
° Dual tuner true diversity reception for stable signal
° Memory channel for quick switching between two receiver frequencies
° Headphone output for monitoring
° Monitor mode for using one receiver as an ear monitor
° Compatibility with Sony WL-800/UWP Series
° Output level control for receiver
° High-visibility OLED display, ideal for indoor/outdoor use
° USB connector for power supply
° Digital audio interface support with SMAD-P5 MI shoe adaptor (optional)*


Sony's advanced digital processing technology ensures high-quality sound with consistent performance improved response times. A new [optional] digital audio interface enables direct digital audio recording with multiple Sony professional camcorders and Alpha interchangeable-lens cameras via the SMAD-P5 Multi Interface Shoe Adaptor, bypassing A/D and D/A conversion stages to further ensure excellent audio quality.
Sony's highly user-friendly NFC SYNC functionality enables quick, intuitive and secure channel setting between the transmitter and receiver.
Integration with compatible Sony camcorders* (requires SMAD-P5 Multi Interface Shoe Adaptor) allows audio information such as an RF level meter, mute setting and transmitter low battery warning to be displayed on the camera's viewfinder. Via the SMAD-P5, audio signals are transmitted from the receiver to the camera without requiring a cable connection. The wireless receiver can also be powered by the camera, with synchronized power on/off between the camera and receiver for more efficient power management.

*See additional SMAD-P5 details for compatibility information.
URX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.

General Specifications
Oscillator Type : Quartz-controlled PLL synthesizer
Reception Type : True diversity method
Antenna Type : 1/4 wavelength antenna cable (adjustable angle)
Carrier Frequencies : 638,025 MHz ~ 694,000 MHz
Frequency Response : 23 Hz to 18 kHz (typical)
S/N Ratio : 60 dB (1 kHz sine wave, 5 kHz modulation)
Distortion (T.H.D) : 0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay
&emsp,Approx. 0.35 ms (analog output)
&emsp,Approx. 0.24 ms (digital output)
Audio output connector : 3.5 mm diameter 3-pole locking mini-jack, external connection

Audio output level
&emsp,-60 dBV (3.5 mm diameter 3-pole locking mini-jack, analog output, 0 dB audio output level)
&emsp,-20 dBFS (external connection, digital output, 0 dB audio output level)
&emsp,-50 dBFS (external connection, analog output, 0 dB audio output level)
Analog audio output adjustment range : -12dB - +12dB (3 dB steps)
Headphone output connector : 3.5 mm diameter mini-jack
Headphone output level : Max. 10 mW (16 ohms)

Power supply
3 V DC (two LR6/AA alkaline batteries)
5 V DC (powered by USB Type-C connector)
Battery life : Approximately 6 hours
Battery life measured with two Sony LR6/AA alkaline batteries at 25 C. SCREEN MODE set to auto power off.

General
Operating temperature : 0 to +50 C
Transport/storage temperature : -20 °C to +55 C
Dimensions : 63 × 70 × 31 mm (W/H/D) (excluding antenna)
Weight : Approximately 131 g (batteries not included)
