Aputure

6971842189847
4-Universe CRMX Transmitter, 5.8 GHz over Wi-Fi, 2.4 GHz over CRMX, IP65
go to the technical sheet
₦ 4,400,437.00

₦ 4,093,429.73 VAT excl.

Available in 29 days
Not sure if this is the right product for you? Talk to a consultant
Aputure Sidus Four 4-Universe CRMX Transmitter, 5.8 GHz over Wi-Fi, 2.4 GHz over CRMX, Wireless Range: Over 2600' (Wi-Fi/CRMX), IP65 Weather Resistant for Outdoor Use

4 Wireless, 4 Wired Universes
With support of up to four CRMX universes and four wired DMX universes, Sidus Four can transmit up to eight DMX universes at the same time.
Sidus Four's networking protocol options are vast, featuring support for CRMX, DMX, Art-Net and sACN over EtherCon, and Sidus Bluetooth.

Limitless Network Expansion
With the ability to link multiple Sidus Fours together via Ethernet, there's virtually no cap on the number of universes you can control.
Whether you're managing a small-scale production or a massive event venue, Sidus Four grows effortlessly with your needs.
Expand from four universes to eight, sixteen, or beyond.

Clear-As-Day Display
Sidus Four features a large, clear, color-coded TFT display that instantly informs user of the entire lighting network's status, making system setup and troubleshooting quick and intuitive. With a TFT panel, users will not have to worry about panel burn-in, an issue prevalent in other types of display panels like OLED and LCD.

Any Weather, Anywhere
Sidus Four comes prepared with an IP65 dust and water resistant rating for the ultimate worry-free lighting networking experience.
No matter where you are, Sidus Four is at the ready to serve as your lighting network's anchor.
This makes Sidus Four the most durable and protected multi-universe CRMX transmitter on the market as other transmitters only have IP20 ratings.

All Day Long Power Options
As redundancies to its AC power input, Sidus Four is equipped with a V-mount battery plate and an 80-minute internal backup battery to ensure your lighting network does not go down due to power loss.
Sidus Four has the longest running backup battery in the market and is one of the only transmitters that has a built-in V-Mount battery plate.

Reliable Long-Range Signal Reach
Sidus Four includes a set of 5 dual-band antennas that service both WiFi and CRMX signals with a wireless range of 800 meters (2,625ft).
With its CRMX and WIFI operating frequencies at 2.4Ghz and 5.8Ghz respectively, Sidus Four mitigates the risk of network interference due to working frequency overlap.
This greatly improves the reliability of your lighting network.


Connectivity: CRMX, DMX512, Art-Net & sACN via Ethernet and Wifi
Universe Support: 4 Wireless Universes & 4 Wired Universes
Ethernet Connectivity: 2x RJ45 Ports at 100Mbps Each
DMX Connectivity: 4x XLR 5-Pin DMX Bidirectional Female Ports
Wi-Fi Operating Frequency: 5.8GHz at 150Mbps
CRMX / Sidus BT Operating Frequency: 2.4GHz
Bluetooth Wireless Range: less than or equal to 300m / less than or equal to 984ft
Wi-Fi Wireless Range: less than or equal to 800m / less than or equal to 2,625ft
CRMX Wireless Range: less than or equal to 800m / less than or equal to 2,625ft
Wi-Fi Modes: AP mode/STA mode
CRMX Mode: TX mode
AC Adapter Operating Voltage: AC In: 100-240V DCOut:9V/18W
DC Jack: 5.5/2.5mm DC Barrel Jack (9-24V) (3m)
V-Mount: V-Mount Battery Plate (12-16.8V)
Lithium Polymer Battery: 3.7V 1500mAH
Backup Battery Life: 80 min
Power Consumption: 17W Max, 6W Normal (W/O: Charging, Type-C Output)
Charge Time: 30 min
IP Rating: IP65
Operating Temperature: -20°C to 55°C / -4°F to 131°F
Firmware Upgradeable: Sidus BT, USB-C, Sidus Link Pro Wifi
Cooling Method: Passive Cooling
Dimensions (excluding antenna): 18.7 x 18.6 x 6.9cm / 7.4 x 7.3 x 2.7in
Weight: 1.40kg / 8.82lbs

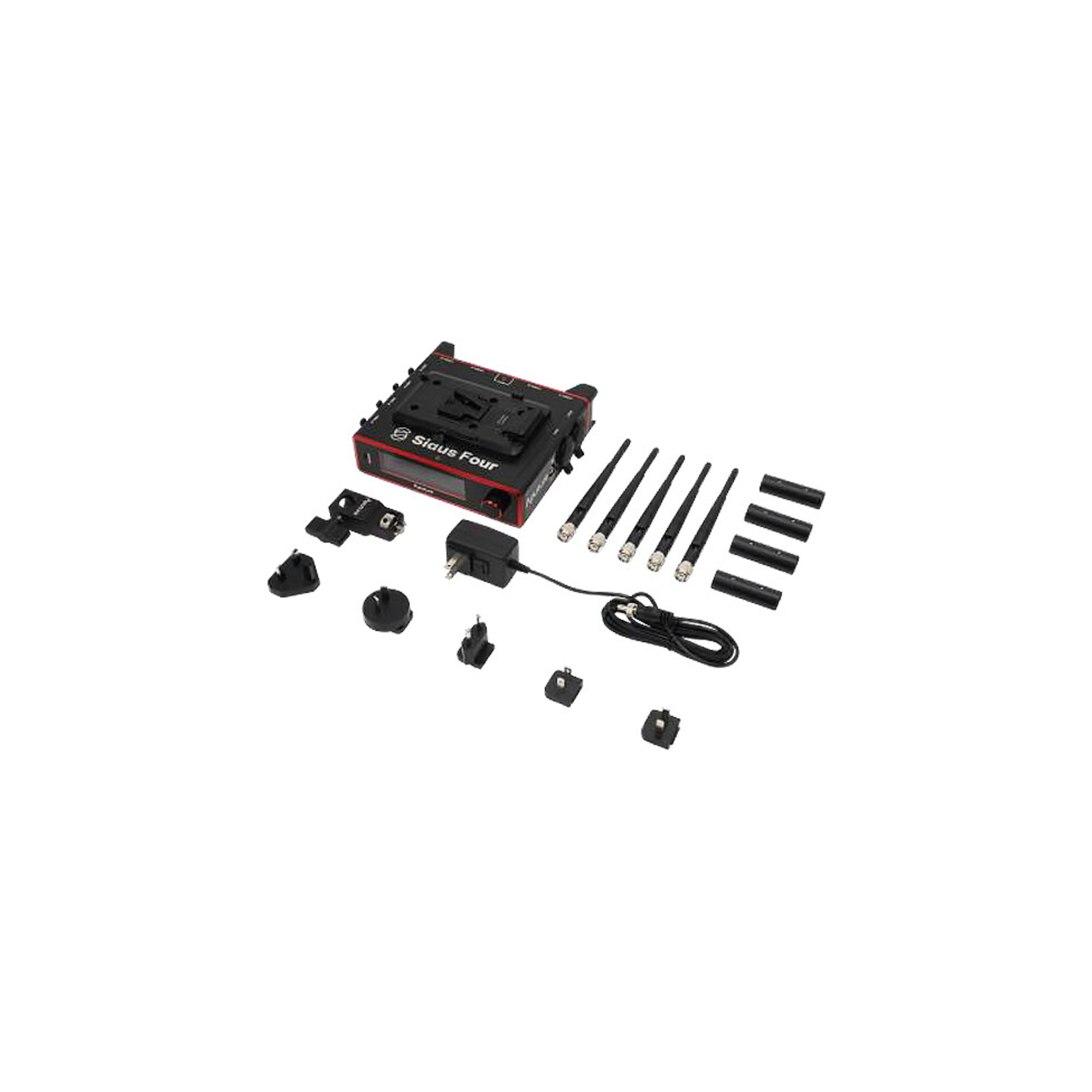

1x Sidus Four
1x Dual Band Antenna
1x 3/8” to Baby Pin Receiver Adapter
1x Sidus Four 18W (9V) Power Adapter
1x US Plug
1x CN Plug
1x AU Plug
1x EU Plug
1x UK Plug
1x 5-Pin XLR Male to 5-Pin XLR Male Adapter
1x Sidus Four Hard Case
