CONNECT ONE STARTER KIT

Name: CONNECT ONE STARTER KIT
Brand: Exalux
SKU: CONNECT ONE STARTER KIT
Price: 1268983 NGN
Availability: OutOfStock

Exalux

EAN: 3760252030206

EXALUX Wi-Fi to DMX gateway (converter)

go to the technical sheet

₦ 1,268,983.00

₦ 1,180,449.00 VAT excl.

Available in 34 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

EXALUX CONNECT ONE is an Wi-Fi to DMX gateway (converter) which allows you to take control of all DMX fixtures with any tablet or smartphone (iOS or Android).
CONNECT ONE works with most of the Art-Net/DMX based Apps (BlackOut, DMX Connect+, Luminair, Stellar).

Features:

- Built-in 2.4Ghz Wi-Fi access point,
- Built-in Art-Net / DMX node (1 universe),
- AC or DC power mode,
- Neutrik XLR connectors, industry standard compliant.

CONNECT ONE Wi-Fi to DMX gateway operates up to 12 hours with the small EXALUX 8.5Wh Powerbank. Switching from one power supply to another does not disconnect the Wi-Fi connection.

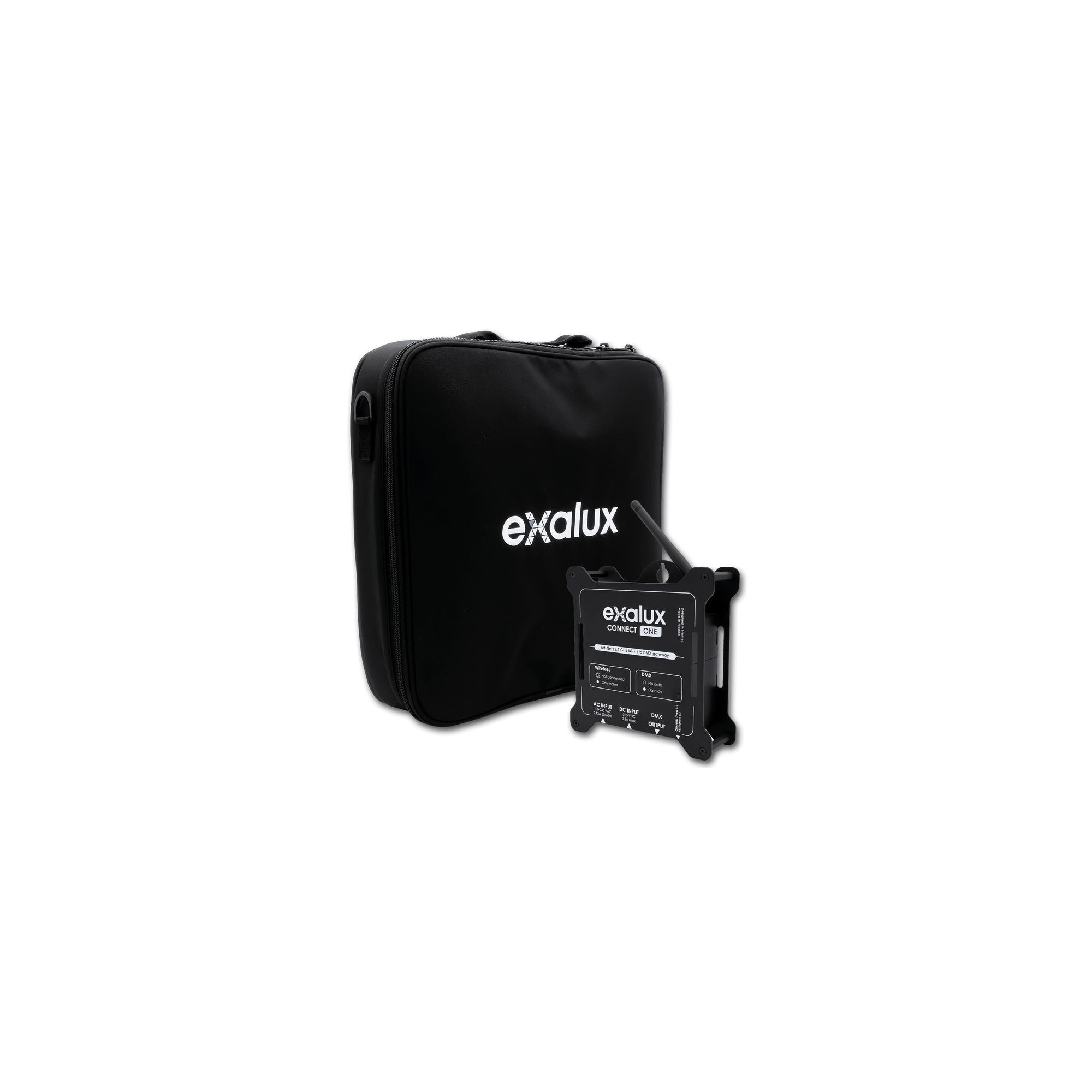

In The Box:

- CONNECT ONE UNIT
- POWERCON AC CABLE
- D-TAP/XLR 4 FEMALE CORD
- USB-A/XLR 4 FEMALE CORD
- XLR 5 F/M CORD (2M)
- USB-A/MICRO USB CABLE (0.15M)
- 2200mAh/5VDC POWERBANK
- CARRYING CASE

Cables & Connectors

Adam Hall

K3 DGH 1000

₦ 50,309.00 VAT included

Available in 14 days

TECHNICAL SPECIFICATIONS

Power Connection
AC : Neutrik PowerCon
DC : Neutrik XLR 4 pins male

Interface
Frequency selection (switch),
Wi-Fi Link (LED),
DMX Signal (LED)

Power Consumption : 1.0W
Housing / Mounting : Aluminum / M10 threaded hole
IP Rating: IP20
Certifications : CE, RoHS
Weight: 355g

RADIO INTERFACE
Standard / Technology : Wi-Fi IEEE 802.11g
Frequency: 2.4 - 2.4835 GHz
Antenna : Omnidirectional, 2.4GHZ 2.0dBi, RP-SMA
RF Output: 17.5 dBm
RF Sensitivity: -98,5dB
Range : Up to 100m (depending on the transmitter and the environment)

DMX INTERFACE
Protocol : DMX512-A
Universe support: 1
DMX frame rate : 0,8-830Hz
End to end latency: < 5ms
DMX Output : Neutrik XLR 5 pins Male

OPERATING CONDITIONS
DC Input Voltage : Min : 4.5VDC | Typ : 5VDC | Max : 24VDC
AC Input Voltage : 85...264V AC
Storage T° : Min : -30°C / Typ : 25°C / Max : +80°C
Operating T°: Min : -20°C / Typ : 25°C / Max : +70°C
