LA-R480

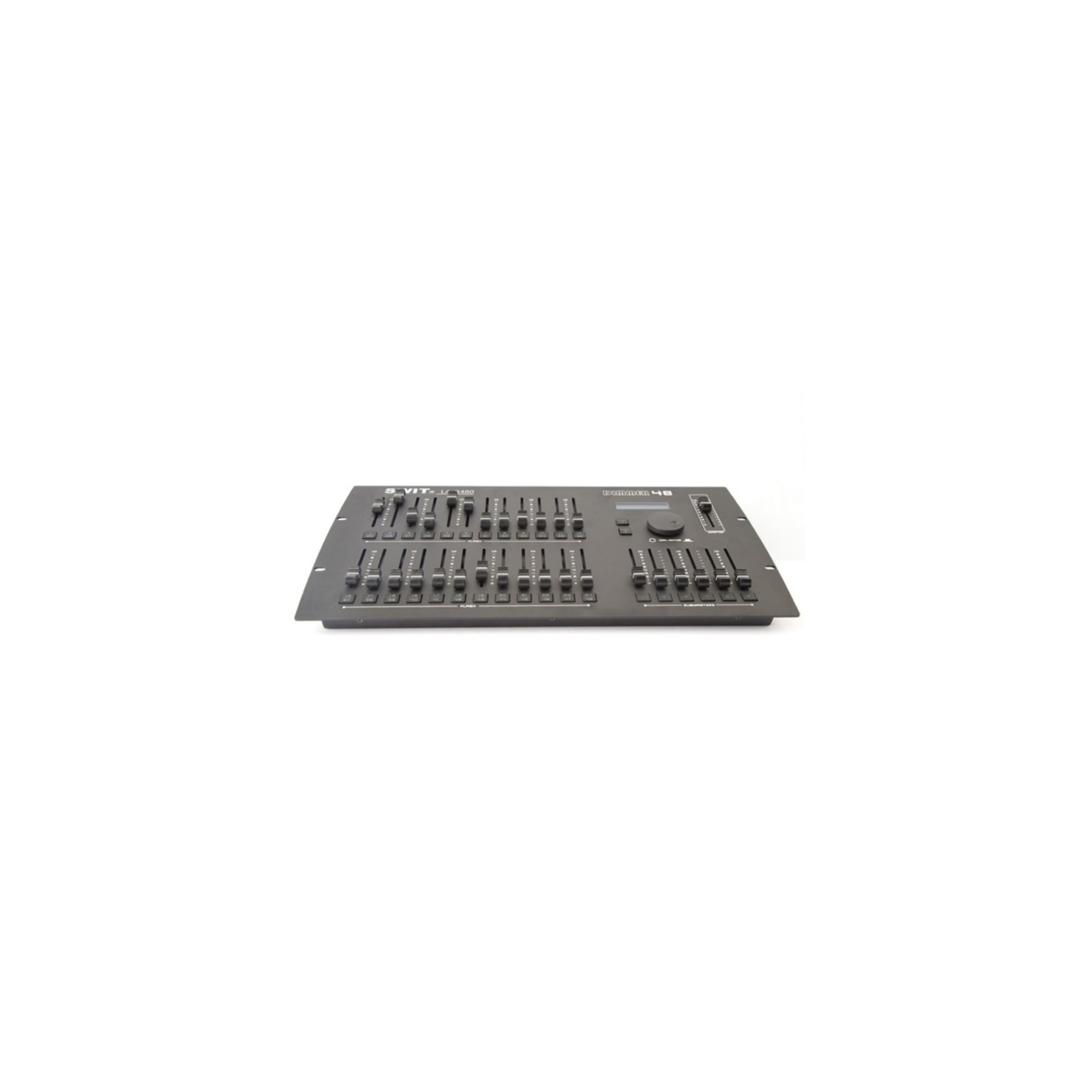

Swit 48-ch DMX512 Light Console, LCD display, 19-inch rack mountable

- Standard DMX512 console with isolater
- 24x channel sliders with A/B switch to 48-ch
- 6x submaster slider and 1x master slider
- Up to 4 units serial connection to 192 channels
- LCD display DMX values of each channel
- Flash control buttons for each slider
- 19-inch rack mountable

° 48-ch DMX Console
LA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders and Page A/B switch to control 48 channels in total.

° Interface
LA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.

° Submaster and Master Control
LA-R480 provides 6x Submaster sliders to group any of the 48 channels, and a Master slider to control all connected lights.
The LCD displays exact values of every DMX channel.

° Serial Connection to Max 192-ch
You can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192.
