LA-R240

Name: LA-R240
Brand: Swit
SKU: LA-R240
Price: 854408.93 NGN
Availability: InStock

Swit

EAN: 6948193511726

Swit 24-ch DMX512 Light Console LCD display DMX values of each channel

go to the technical sheet

₦ 854,408.93

₦ 794,799.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 85,440.89

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

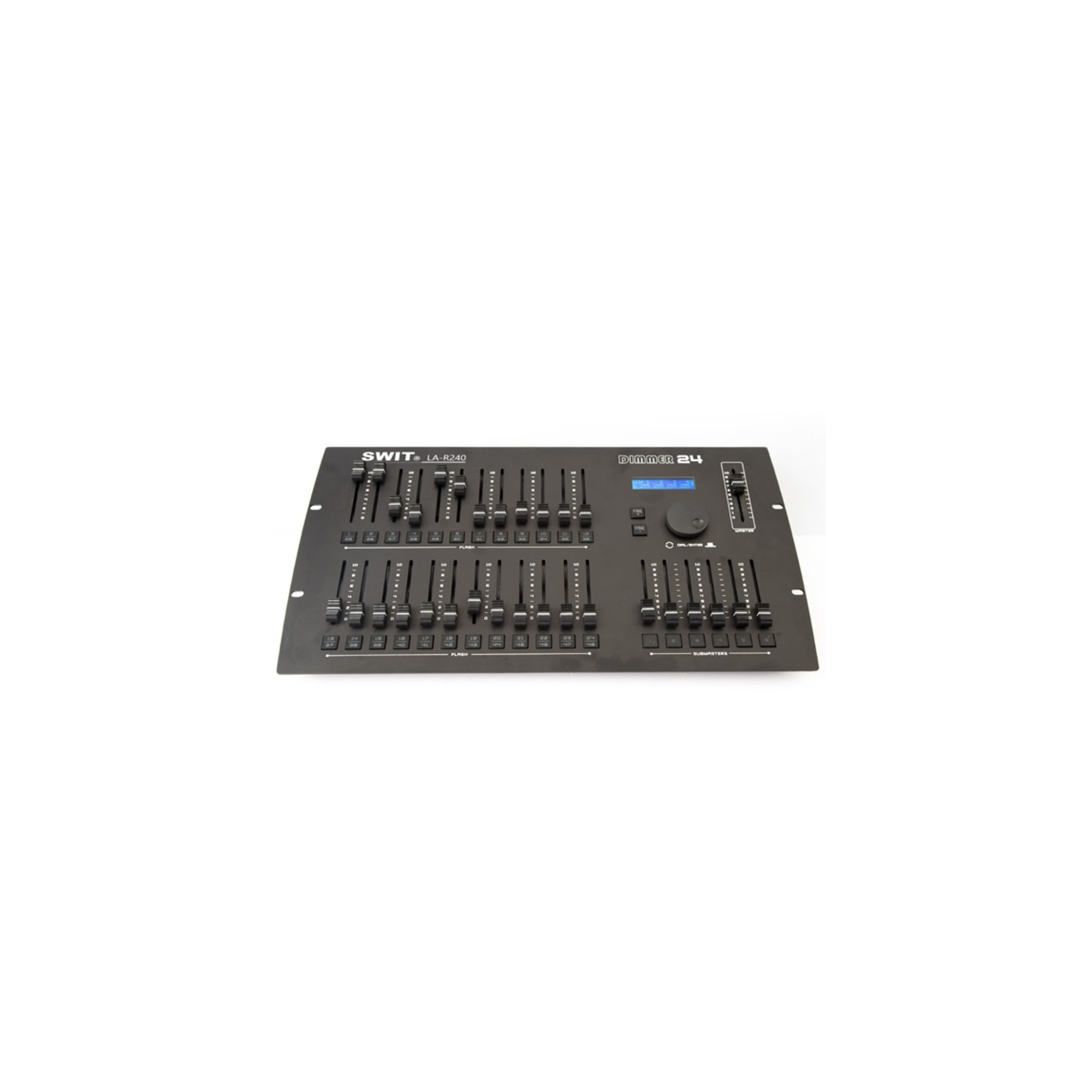

Swit 24-ch DMX512 Light Console LCD display DMX values of each channel, 19-inch rack mountable

° 24-ch DMX Console
LA-R240 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders, for broadcast studio and stage.

° Interface
LA-R240 supports PowerCON AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.

° Submaster and Master Control
LA-R240 provides 6x Submaster sliders to group any of the 24 channels, and a Master slider to control all connected lights.
The LCD displays exact values of every DMX channel, and has FINE +/- buttons to fine adjust slide values.

° Serial Connection to Max 96-ch
You can connect up tp 4x LA-R240 by RJ45 cables, to expand DMX channels to Max 96.
The Master unit is in charge of DMX 1-24, and the Slave units are DMX 25-48, 49-72 and 73-96.

Channel: 24
Submaster: 6
Master: 1
DMX: 3-pin XLR Female x1, Male x1
Serial connection: 4 units, Max 96-ch
Power: PowerCON AC 88-256V 50/60Hz IN x1, LOOPx1
Dimension: 482×265×75mm
Weight: 2.65kg
