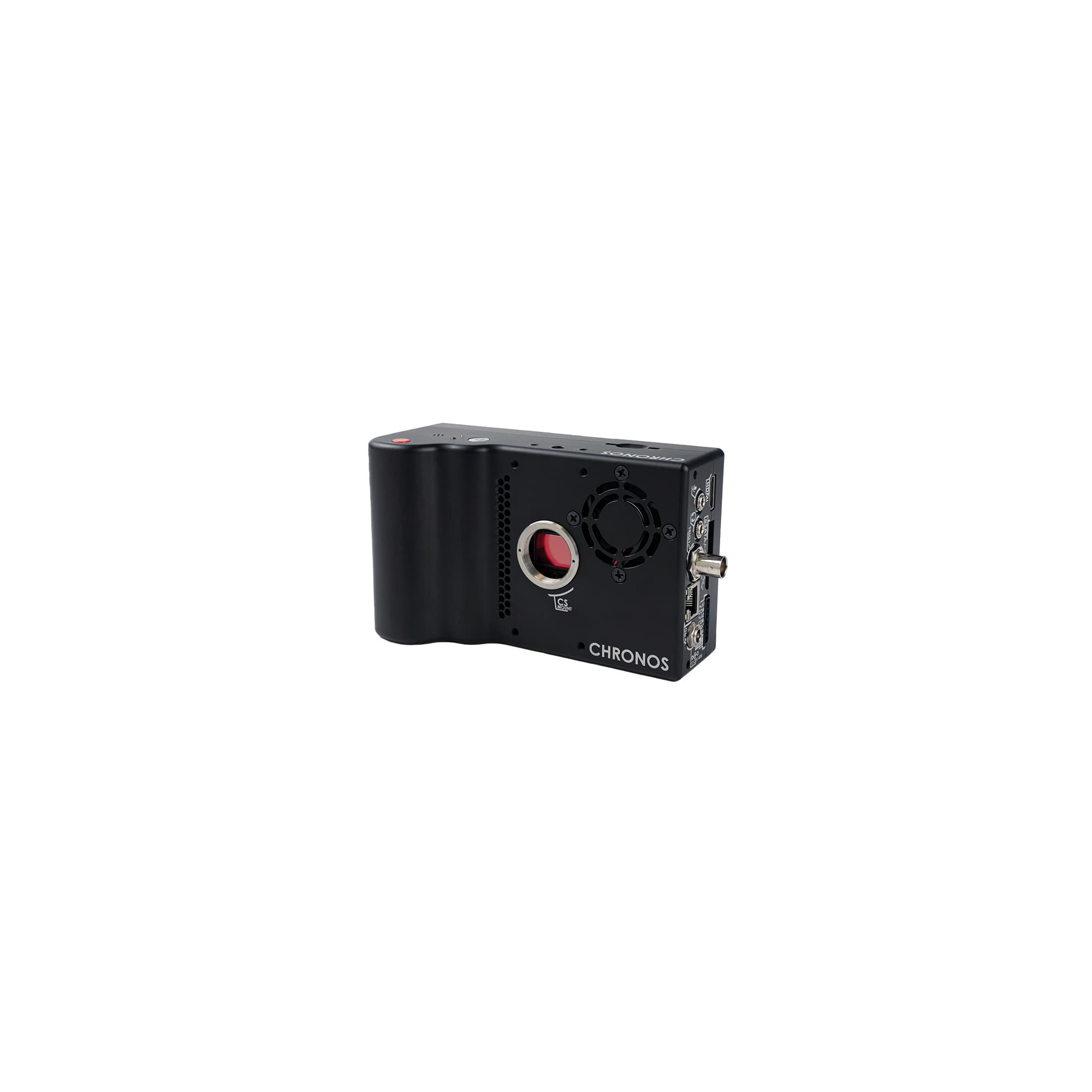

Kron Technologies Chronos 2.1-HD Slow Motion, High Speed Camera 32GB, Image Sensor: Color

The Chronos 2.1-HD high-speed camera offers an all-in-one, high-definition, high frame-rate solution that empowers data analysis from some of the top R&D and Aerospace facilities, Universities, and Media Producers in the world.
The budget-friendly camera is ideal for a range of applications and measurement techniques such as Vibration Analysis, Schlieren Imaging, and Particle Image Velocimetry (PIV). Get up and running in minutes with the easy-to-use 5" touchscreen interface and extend the functionality with accessories such as microscope lenses, and high-speed specific lighting.

- HD-Resolution: 1920x1080p @ 1,000FPS (max res)
- High Frame-Rate: 4/3" format image sensor captures up to 24,046 Frames Per Second (FPS) at lower resolution.
- All-in-One: Completely standalone, untethered operation with a 5" inch touchscreen display and battery for portability.
- Internal Storage: 8GB, 16GB, and 32GB RAM memory options allow for 2.7, 5.5, and 11 second recording times. Store footage via the SD card slot.
- Recording Modes: Standard, Segmented, Running, Gated Burst and Live Slow Motion offer versatile image capture options for dynamic environments.
- Lens Mounting: Nikon F, Canon EF and C mounts available as field-swappable options.
- Color or Monochrome: High sensitivity ISO 500-8,000 (Color) and 1,000-16,000 (Monochrome) allows filming in dynamic lighting conditions.
- Trigger Options: I/O ports enable synchronization and remote triggering via cable, sound, and web-triggers.
- Focus Peaking: Highlights sharp edges for quick and clear focus with zebra lines help define correct exposure.
- API: Open source, REST-based Application Programming Interface (API) is included for integration into custom software or control environments

Camera
Imaging: 1920x1080 @ 1000FPS
Memory: 32GB
Record Time (in seconds): 2.7 (8GB), 5.5 (16GB), 11 (32GB) at max resolution
Backfocus: Field adjustable
IR Filter: 650nm, user removable, 24 x 16 x 1.1mm
Display: 5" 800x480 capacitive touchscreen, 1000 nit daylight visible
Enclosure: Anodized CNC machined aluminum
Cooling: Active cooling, variable-speed fan (fan-off option)
Dimensions: 155mm x 96mm x 67.3mm (6.11" x 3.78" x 2.65") w/o lens
Weight: 1.06 kg (2.34 lbs) without lens

Image Sensor
Resolution: 1920x1080 @ 1000FPS maximum
Speed: 2.1Gpx/s
Dimensions: 19.2 x 10.8mm (4/3" format, 2.1-Megapixel, 2x Crop Factor)
Pixel Pitch: 10um
Sensitivity (ISO): Color - ISO 500 to 8000 Mono - ISO 1000 to 16000
Shutter: Electronic global shutter, 1/fps to 10us (1/100,000 s)
Dynamic Range: 10.3 stops (62.4 dB)
Bit Depth: 12-bit

Inputs/outputs
Power Input: 17-20V 40W (5.5/2.5mm barrel jack, positive tip)
Network: Gigabit Ethernet
Trigger: 2 trigger inputs/ frame strobe outputs (BNC & Aux) Adjustable input threshold 0 to 6.6V Electrically isolated trigger input (Aux connector) Trigger with sound, laser, and lightning using accessories
Video: HDMI output 720p or 1080p (default) @ 60FPS, video only
USB: USB type A (host) and micro-B (device)
SATA: eSATA 3Gbps to SATA 2.5" lll SSD (5V power)

Trigger Ports
BNC: Female BNC connector
AUX: Phoenix 1778890 8-pin terminal block connector, including isolated trigger input.

Network Control
Network Control: Through web page or REST interface with USB or CAT ethernet cable

Normal Speed Recording
Continuous: Video is saved continuously at up to 60FPS to MP4 files on removable storage. Operates like a standard video camera.

Environmental
Operating Temperature: -20 °C to +40 °C (-4 °F to +104 °F)

Video Formats
H.264: Standardized MP4 files at bitrates up to 60Mbps
Cinema DNG Raw: Standard Adobe CinemaDNG raw files
TIFF: Standard TIFF raw files with timestamps
Storage Devices: SD, USB, SSD, or SMB/NFS network drives

Batery
Type: EN-EL4a
Runtime: 1 hour recording
Charge Time: 2 hours (0-80%) with in-camera charger

Trigger Modes
End Trigger: Records until a defined delay after trigger
Toggle: Starts and stops with button press
Exposure Trigger: External signal sets synchronization frame rate
Shutter Gating: External signal sets the exposure synchronization and frame-rate
Frame Sync Output: Outputs a signal indicating its frame rate and exposure

Software
Control: Through web page or REST interface with USB or CAT ethernet cable
Stream: Live or Playback Mode network streaming via RTSP stream and VLC player.
APIs: HTTP REST Interface, open-source codebase

Recording Modes
Normal: Records into the ring buffer. Once a trigger occurs, video can be reviewed and saved.
Segmented: Video memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable.
Gated Burst: Frames are captured while trigger is active

Assistive
Focus Aid: Highlights sharp edges to aid focusing
Zebras: Rolling diagonal lines indicate clipped (overexposed) areas
Viewfinder Zoom: Zooms in to allow easier focusing
Overlay: Displays frame and time information on top of footage
