ME-BXC-CM100P

mediaedge High-Speed BOX Camera for Sports "QDCAM", 1/1.1" 8.8 million-pixel CMOS image sensor with Global shutter (Micro four thirds system)

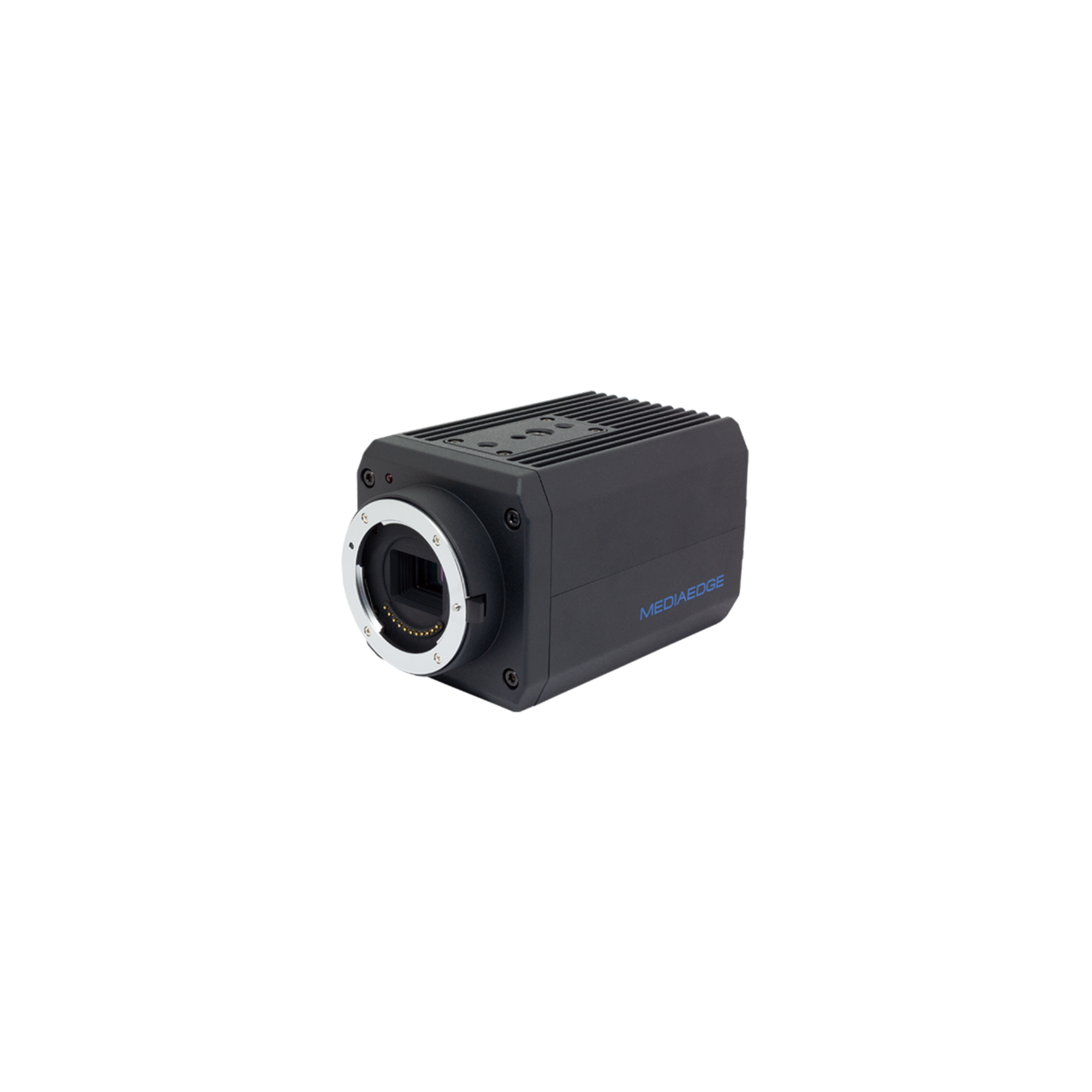

QDCAM is a high-speed box camera best for sports shooting. MEDIAEDGE designed this camera with "Micro Four Thirds lens mount system", which will allow customers to choose the lens for QDCAM from various lenses of "Micro Four Thirds" in the world.
Customers can configure the high-speed camera system with affordable cost.

° 4xFHD and UHD in one system
QDCAM is supporting FHD 240/200fps and UHD 60/50 fps video formats.
QDCACM can be used for UHD high resolution production or high speed sports shooting with one system.

° Global shutter CMOS image sensor
QDCAM is equipped with global shutter CMOS image sensor which is to avoid the rolling shutter distortion of quick moving objects.

° High-Speed shooting: 1920×1080/239.8p, 200p
Continuous 4X high-speed video for smooth slow-motion replay or accurate sports analysis.
Quad link of SDI can be connected to major slow-motion recording/players such as EVS, Avid etc.

° High resolution shooting: 4096×2160/24p, 3840×2160/60p,50p
Use for 4K cinema production or UHD video production.

° A new synchronization system
A patent pending technology for multiple cameras exposure timing synchronization.
Suitable as a multi-angle view system or sports judgement system.

° Optical transmission option using SMTPE opt-camera cable
Optical transmission option allows it to be used for sports broadcasting in a stadium or an arena.
Micro four thirds lens mount.

° Micro four thirds lens mount
High quality picture lenses with various focal lengths can be used.
Also, remote control of Iris and Focus are available.

° Slow-Motion Replay
Quad link of 3G-SDI can interface 4x high speed of 1080p signal to slow-motion recorder-player.

° Multi-Angle View
Affordable price of camera & lens allows to install many cameras for multi-angle shooting.

° Image Analysis for Sports Judgement System
The high speed & high resolution image capturing and exposure synchronization system allows accurate calculations for multi-camera image processing.

° Video Capture Tool for Sports Coaching
High speed & high resolution image capturing and exposure synchronization system allows accurate calculations for sports analysis.
Also, the player's performance can be checked through slow-motion replay and the team coach can give the players his/her advice.
