Chronos 4K12 Camera 128G CM
Chronos 4K12 Camera 128G CM

Chronos 4K12 Camera 128G CM

4K12 camera max. resolution 4096x2160 (4K) 1,397 FPS,128GB,CinemaDNG Raw CM
go to the technical sheet
₦ 30,066,612.00

₦ 27,968,941.00 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

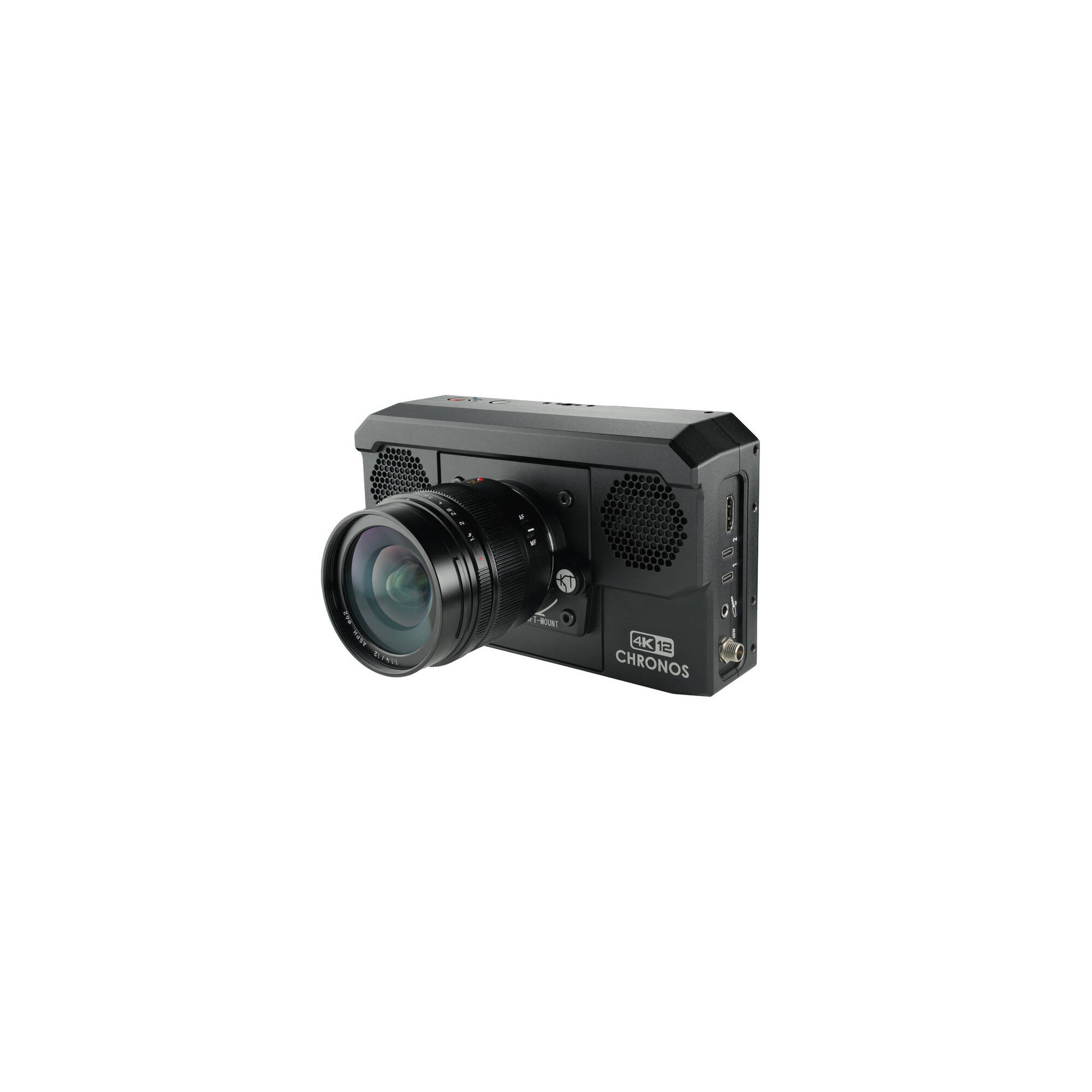

Chronos Camera 4K12 with max. resolution 4096x2160 (4K) at 1,397 FPS, 128GB, CinemaDNG Raw, 5" 800x480 High Brightness LCD 8 (C-Mount)

Experience the extraordinary capabilities of the Chronos 4K12 high-speed camera, which captures mesmerizing 4K slow-motion video at over 1,000 frames per second.

Designed for peak performance and exceptional value, the Chronos 4K12 is purpose-built to captivate audiences, supercharge data analysis, and foster innovation.
Its user-friendly design and portability make it an ideal choice for a wide range of high-speed imaging requirements.

° Academia/Research
Efficient data capture and analysis are made possible with the Chronos 4K12 in a matter of minutes, enabling researchers to meet their critical project goals effectively.
The Chronos 4K12 is also intuitive and easy to work with, ensuring that everyone in the lab can use it right out of the box.

° Media Production
Chronos 4K12 empowers cinematographers and creative media videographers with stunning slow-motion sequences and a raw frame output, unlocking new levels of storytelling.

° Sports
Chronos 4K12 showcases the beauty and excitement of sports like never before.
Analyze every swing, pitch, jump, and serve with exceptional clarity to help athletes refine their skills and reach their full potential.

° Industrial/Manufacturing
From materials science to fluid dynamics and beyond, Chronos 4K12 helps you push the boundaries of innovation by enabling easier and more accurate troubleshooting of complex problems.

° Wildlife
Whether you're shooting for a special documentary, or studying the behaviour of animals, Chronos 4K12 delivers stunning video at high frame rates while being incredibly portable.

° Built-In 1 TB NVMe SSD
After your high-speed video has been captured to the camera's 64 or 128 GB memory buffer, you can trim down your video via the Playback screen on the built-in display, then quickly transfer footage to the camera's internal NVMe SSD for safe keeping.

° Dual USB-C Ports
After your high-speed video has been captured to the camera's 64 or 128 GB memory buffer, you can trim down your video via the Playback screen on the built-in display, then quickly transfer footage to an external USB-C SSD.
Chronos supports up to 20 Gbps with USB 3.2 Gen 2x2 drives.

° Full Sized SD-Card Slot
For the ultimate convenience, footage can also be transferred to a full-sized SD card.
Quickly save H.264 or H.265 videos, then view them on virtually any computer as MPEG-4 videos without the need for further editing.

° Gigabit Ethernet via USB-C Adapter
After your high-speed video has been captured to the camera's 64 or 128 GB memory buffer, use a USB-C to Gigabit Ethernet adapter to save footage from the camera directly to a networked drive.
The Chronos REST API also allows for automation and remote control to be tailored to your needs.

° Wi-Fi via USB-C Adapter
Wirelessly connect and control your Chronos via a Wi-Fi adapter.
Mobile and desktop apps will be available in early February to allow for direct pairing with your Chronos for intuitive remote control and monitoring.

° Remote Control & Automation
Apps for mobile and desktop use extend the intuitive control from the built-in 5" LCD touchscreen to the palm of your hand.
Building on years of use in industrial and research applications, Chronos cameras can also be controlled remotely via a REST API.
Connect to one or many cameras via the scripting or programming language of your choice to gain full remote control over the camera and footage transfers.

Camera
Imaging: 4096 x 2160 @ 1,397 FPS
Memory: 128GB
Record Time (in seconds): 5.5 (64GB), 11 (128GB) at max resolution
Backfocus: Field adjustable via included shim kit
IR Filter: 650nm, user removable
Display: 5" 800x480 capacitive touchscreen, 1000 nit daylight visible
Enclosure: Anodized CNC machined aluminum
Cooling: Active cooling, variable-speed fans
Dimensions: 188mm x 111mm x 53mm (7.40" x 4.37" x 2.08") w/o lens
Weight: 1.32 kg (2.91 lbs) without lens

Image Sensor
Resolution: 4096 x 2160 @ 1,397 FPS Maximum 128x32 @ 29,002 FPS Minimum
Speed: 11.8 Gigapixels per second
Dimensions: 20.74mm x 9.79mm (4/3" format, 10-Megapixel, 2x Crop Factor)
Pixel Pitch: 4.5um
Sensitivity (ISO): Color - ISO 100 to 400 Mono - ISO 200 to 800
Shutter: Electronic global shutter, 1/fps to 1us (1/1,000,000 s)
Dynamic Range: 11.3 stops (68 dB) in 12-bit mode
Bit Depth: 8-bit, 10-bit, or 12-bit User Selectable

Video Formats
Compressed: Standardized H.264 AVC, or H.265 HEVC MPEG-4 Video Files
Raw: Standard Adobe CinemaDNG raw files
Storage Devices: Internal 1 TB NVMe SSD, SD Card, USB-C SSD, or SMB/NFS network drives

Inputs/Outputs
Power Input: 12-24V 60W (5.5/2.5mm barrel jack, positive tip)
Network: Gigabit Ethernet via USB-C Adapter WiFi via USB-C Adapter
Trigger:3 trigger inputs/ frame strobe outputs (4-pin 3.5mm TRRS Connector) Adjustable input threshold 0 to 6.6V. Optional TRRS to BNC splitter cable accessory.
Video: HDMI output 4K @ 30 FPS or HD @ 60 FPS
USB: Dual USB Type C Ports USB-C Port 1: 3.2 Gen 1, 5 Gbps (PC or Peripheral) USB-C Port 2: 3.2 Gen 2x2, 20 Gbps (Peripheral, SSDs)

Software
Control: Desktop, iOS, and Android Apps coming soon. Connect via optional Ethernet or WiFi adapters.
Stream: Live or Playback Mode network streaming via RTSP stream.
APIs: HTTP REST Interface, Open-source codebase

Trigger Modes
End Trigger: Records until a defined delay after trigger
Toggle: Starts and stops with button press
Exposure Trigger: External signal sets synchronization frame rate
Shutter Gating: External signal sets the exposure synchronization and frame-rate
Frame Sync Output: Outputs a signal indicating its frame rate and exposure

Network Control
Network Control: Through control apps or REST API via optional Ethernet or WiFi adapters.

Recording Modes
Normal: Records into the ring buffer. Once a trigger occurs, video can be reviewed and saved.
Segmented: Video memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable.
Gated Burst: Frames are captured while trigger is active

Environmental
Operating Temperature: 0 °C to +40 °C (32 °F to +104 °F)

Assistive
Focus Aid: Highlights sharp edges to aid focusing
Zebras: Rolling diagonal lines indicate clipped (overexposed) areas
Histogram: Graphically represent brightness and distribution of light in the image
Viewfinder Zoom: Zooms in to allow easier focusing
Overlay: Displays frame and time information on top of footage
