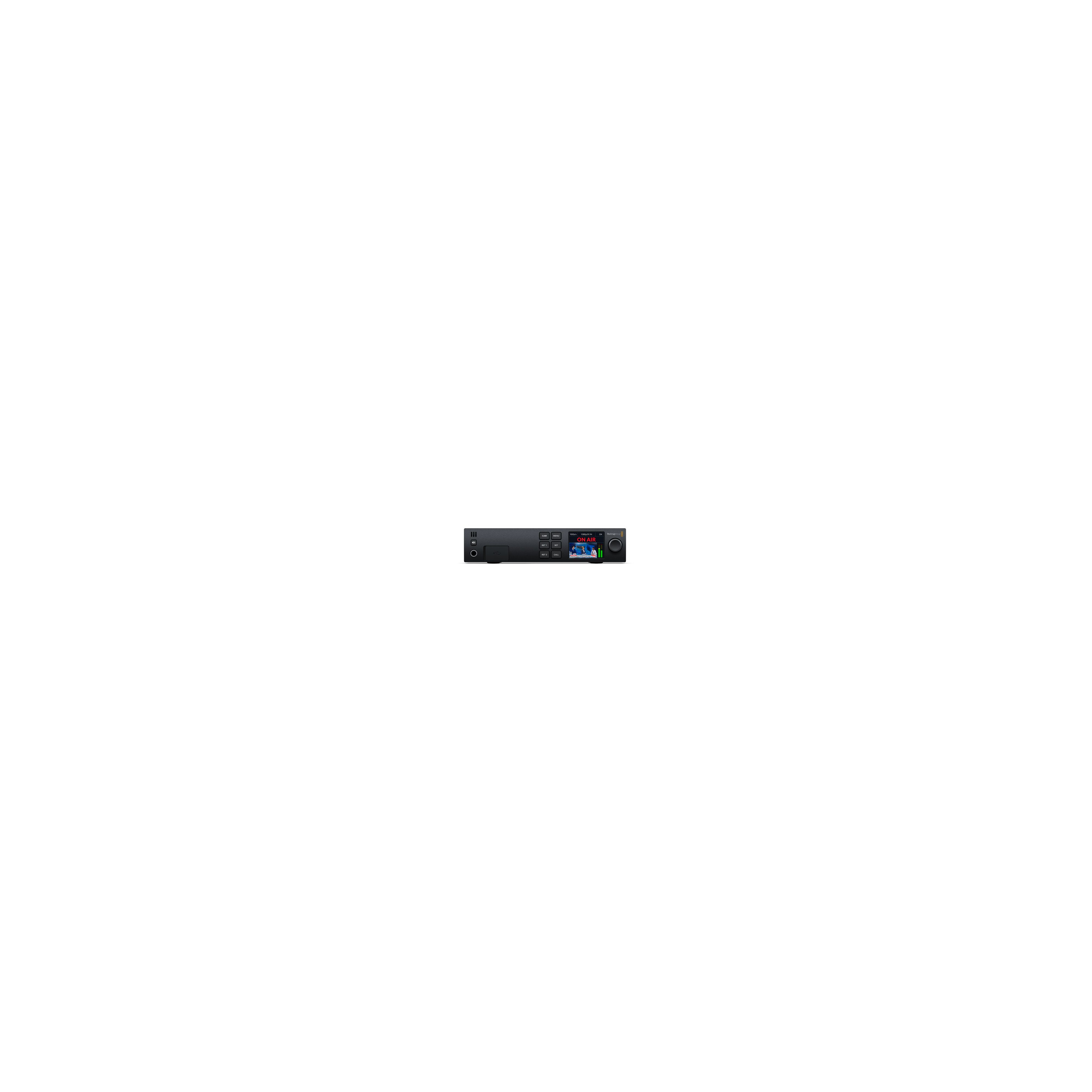

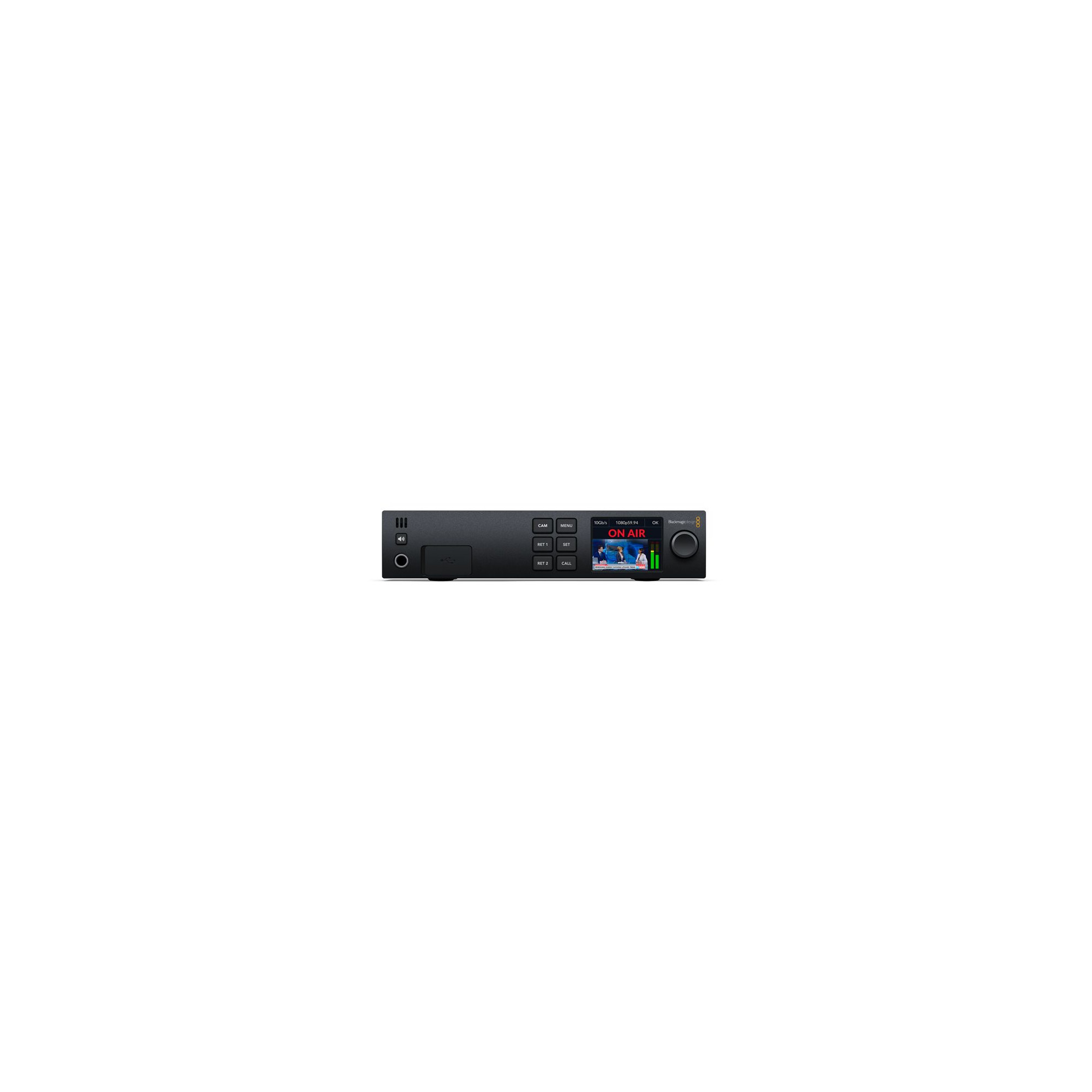

Studio Converter

Connections
SDI video inputs: 2
SDI video outputs: 2
SDI monitoring outputs: 1
SDI transmission: 1.5G, 3G, 6G, 12G
Integrated speaker: Mono
Analog Audio Inputs: Two-channel analog program audio input on the 9-pin connector
Analog audio outputs: 1 x 6.35mm headphone jack
SDI audio input:
Return 1 with two channels of program audio integrated into the 1.5G / 3G / 6G / 12G-SDI signal
Talkback on channels 13, 14, 15 and 16
Return 2 with two channels of audio integrated into the 1.5G / 3G / 6G / 12G-SDI signal
SDI audio output:
Two channels of program audio built into 1.5G / 3G / 6G / 12G-SDI signal
Talkback on channels 13, 14, 15 and 16
Connections for timecode: 1 x BNC In, 1 x BNC Out
Connections for reference: 1 x BNC In, 1 x BNC Out, Tri-Sync or Black Burst
Audio talkback:
SDI channels 13 and 14 for the technical team
SDI channels 15 and 16 for the production team
RJ-45 connector for external analog talkback systems

Screen: 2.2 inch LCD

Ethernet:
1 x RJ-45 PoE 10Gb / s Connector for SMPTE Fiber Style Workflow with Cat 6A Network Cable
1 x 1Gb / s for external control and software updates
Computer interface: 1 x USB-C

Standard
HD video standard:
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standard:
2160p23.98, 2160p24, 2160p25, 2160p29.97,
2160p30, 2160p50, 2160p59.94, 2160p60
Compliance with SDI:
SMPTE 292M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-1

Audio sampling:
48kHz and 24-bit sampling rate (TV standard)
Video Sampling:
4: 2: 2
Color accuracy:
10 bit
Color space:
REC 709, REC 2020.
Multirate support:
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI

Check
Integrated panel:
7 buttons with knob and 2.2-inch color display to control the device and use the menus
External control:
1Gb / s RJ-45 Ethernet

Software
Software included:
Camera utility to update firmware
