ADA4-R0

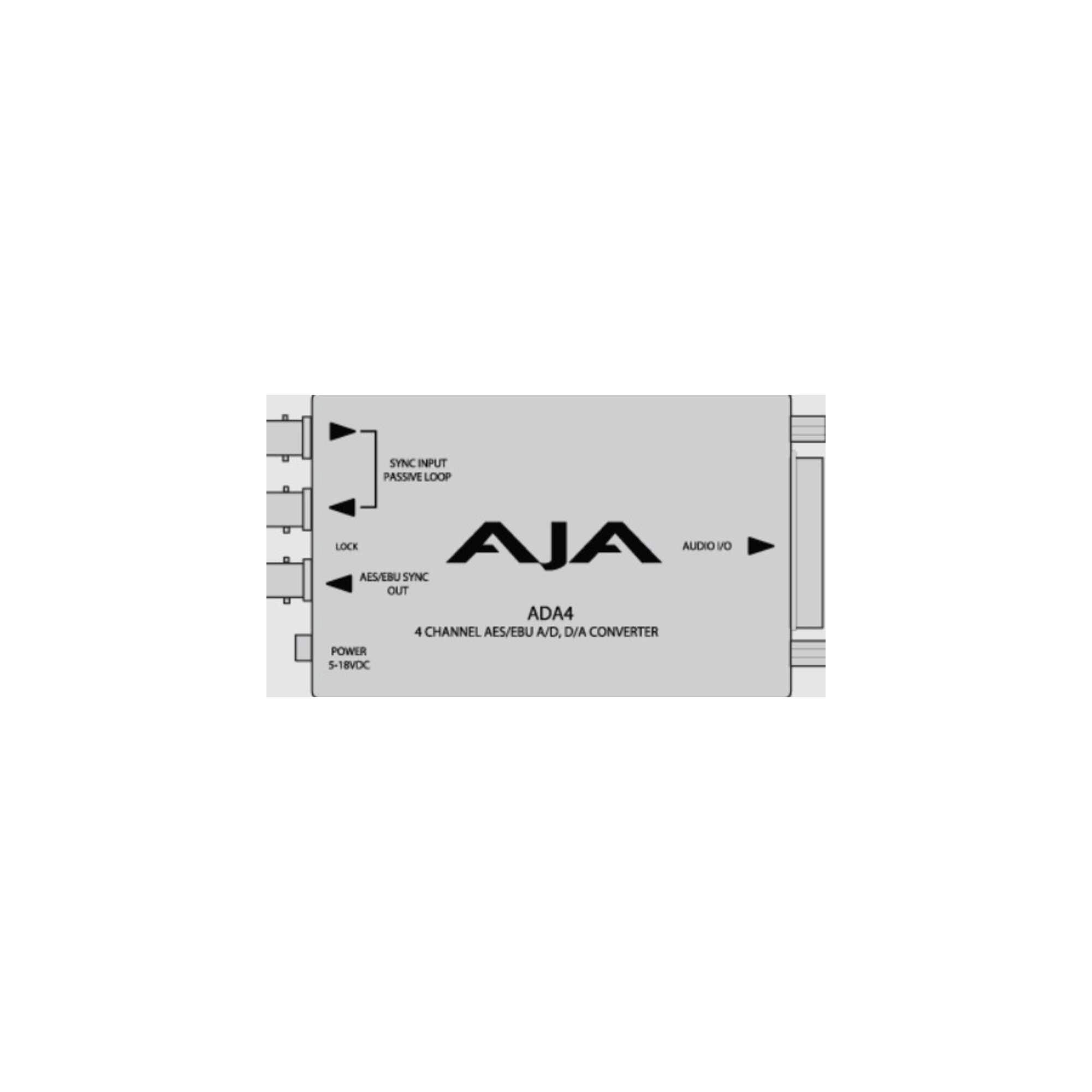

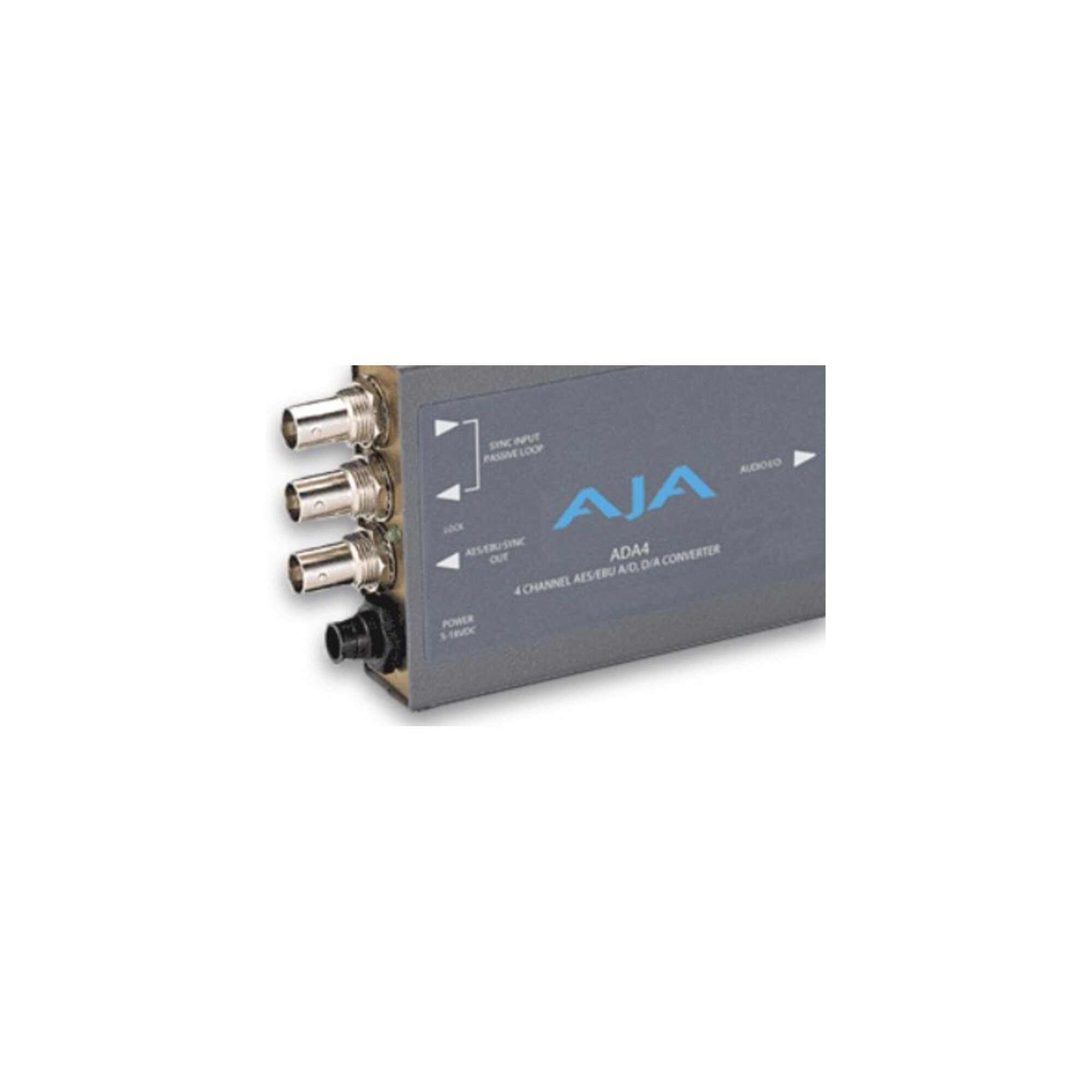

The AJA ADA4 is a Digital to Analog Audio Converter that operates bidirectionally. This device accepts an AES/EBU digital audio input and outputs an analog audio signal, and vice versa. It features a miniature size and output level controls.

Adjustable Level
Each channel has three levels of attenuation for control.

Miniature Size
The size of this device allows for studio "in line" applications or small desktop spaces.

Video Sync
This converter offers the ability to sync to a video reference word clock signal also providing two looping outputs.

Input AES/EBU Digital Audio x4, @ 110 ohms, on XLR connectors
Stereo Balanced Audio x4 @ 600 ohms, on XLR connectors
Video Sync or Wordclock, on a BNC connector
Output Stereo Balanced Audio x4 @ 600 ohms, on XLR connectors
AES/EBU Digital Audio x4, @ 110 ohms, on XLR connectors
Conversion Digital Stereo Audio to Analog Balanced Stereo Audio and Vice Versa
Control Dip Switches:
Channel 1/2: A/D, D/A
Channel 3/4: A/D, D/A
Audio Level: Pro/Consumer
Audio Level: High/Low
Power Source 5 VDC from an Optional AC Power Adapter
Dimensions (WxDxH) 5.8 x 3.1 x 1"
14.7 x 7.9 x 2.5cm
Weight 1 lb
680 grams
