V2ANALOG-R0
AJA
€ 537,68 VAT excl.

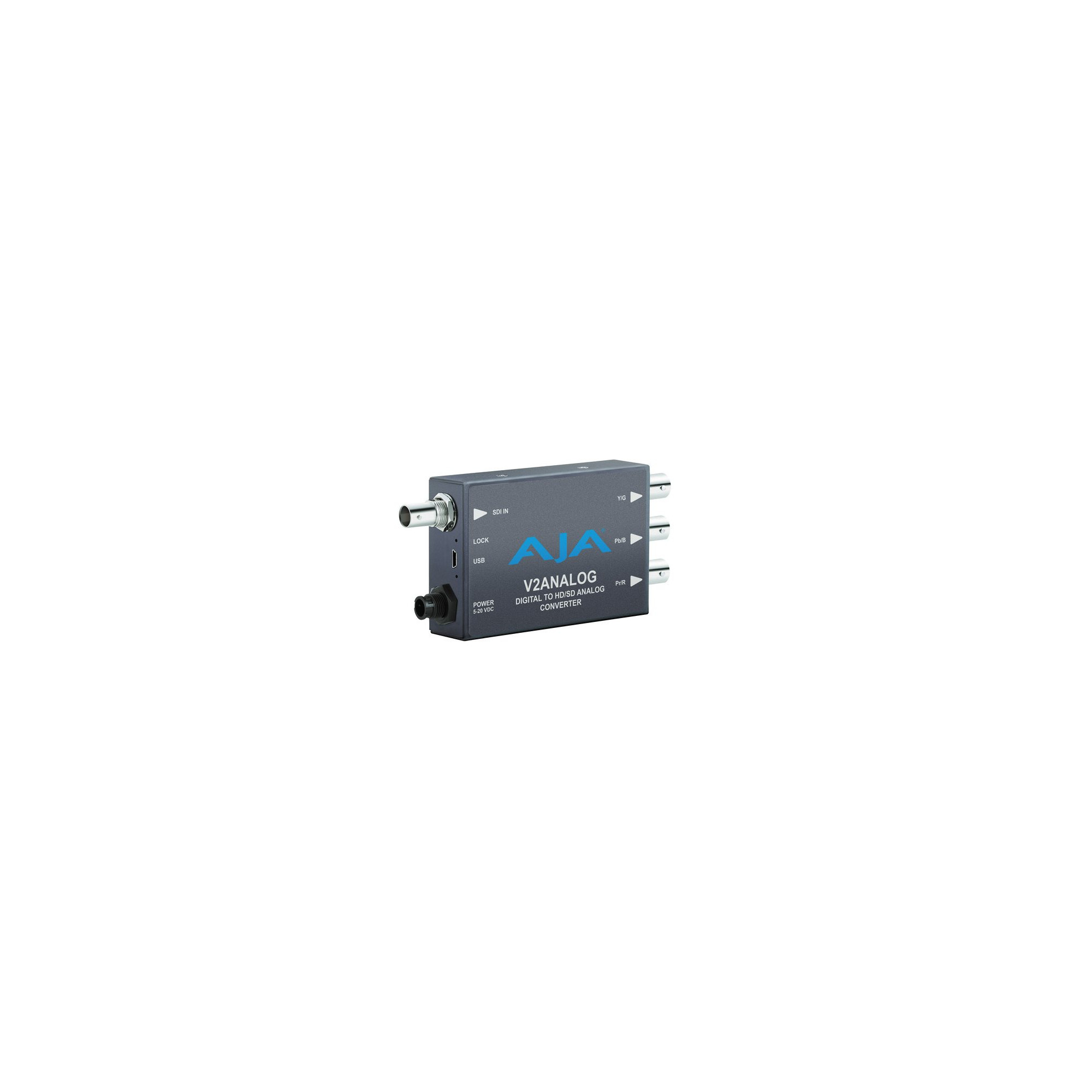

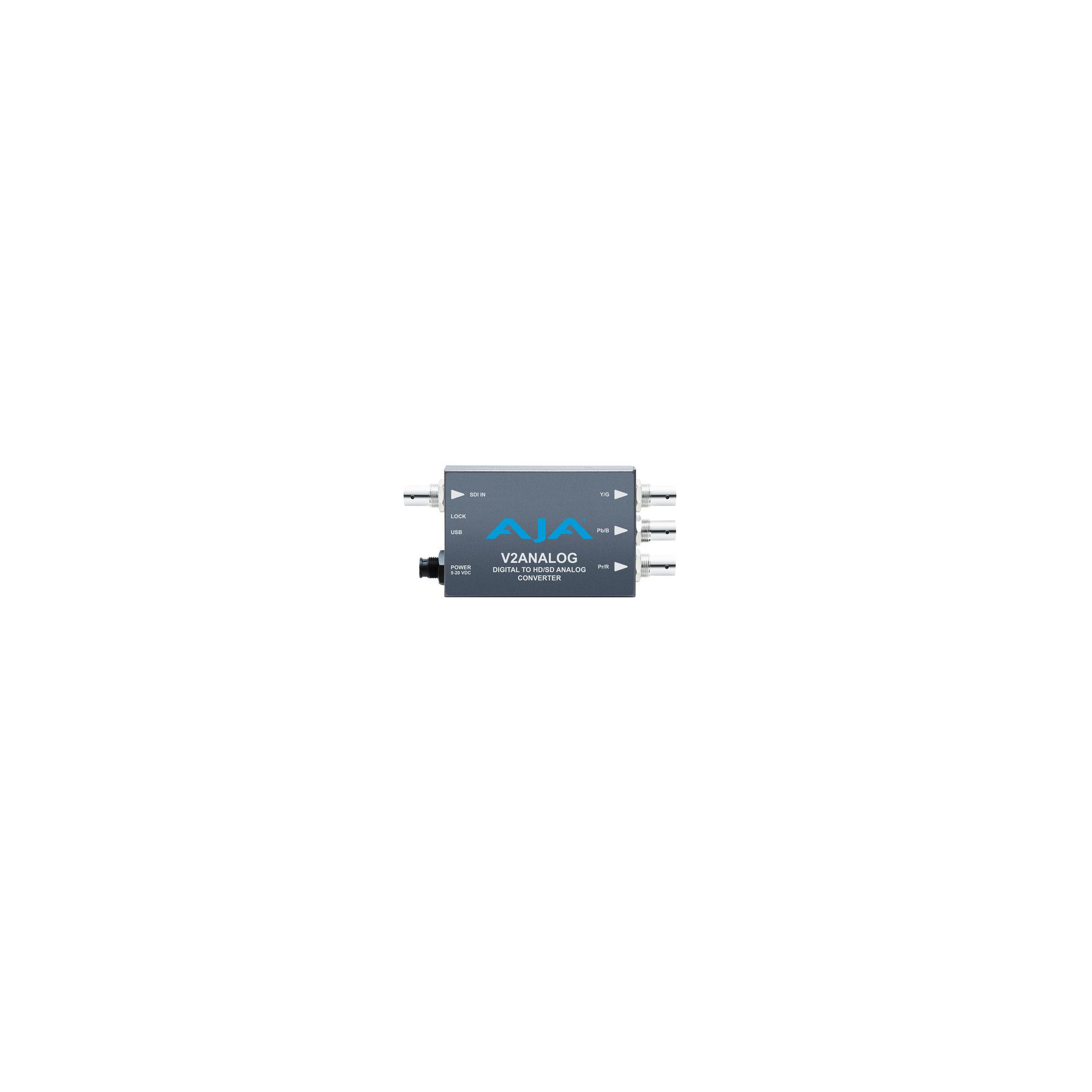

V2Analog is a high-quality, cost-effective digital to analog video converter that's an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows. V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.
Features
- 10-bit AJA digital to analog conversion
- Low power, compact size
- HD/SD-SDI input
- YPbPr/RGB Component, Composite, S-Video output
- Configure via DIP switch or USB port and supplied Mini-Config software
- Five year warranty
Video Formats:
(HD) 1080i 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25
(HD) 720p 50, 59.94, 60
(SD) 625i
(SD) 525i
Input:
HD/SD-SDI, SMPTE-259/292/296M, 1x BNC
Outputs:
HD component YPbPr, RGB (SMPTE-274), BNC
SD component (Betacam, EBU-N10)/composite/YC (S-Video), BNC
User Controls:
External Dipswitch
Control (Local/Remote)
Component/Composite (SD Only)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD Only)
Size (w x d x h):
5.1" × 2.4" × 1.0" (129.54 × 60.96 × 25.4 mm)
Power:
+5-20 VDC, 3 watts
Environment:
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
