Onyx 8

Mixer
Number of Analog Input Channels: 8 (4 Mono/ 36 Stereo)
Number of Mic Preamps: 4
Analog Output Channels
2 x Stereo Master Output
2 x Stereo Control Room/Monitor Output
1 x Mono Aux Send Output
1 x Mono FX Send Output
1 x Stereo Headphone Output
Mix Routing:
1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Faders: None
Meters
Main Meter:
2 x 12-Segment LED
Meter Range
Main Meter:
-30 dB to +20 dB Peak/Clip
Built-In Amplifier
Gain/Trim Range: 60 dB
Dynamic Processing: None
Sidechain Filters: None
EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 5 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz
Filters
Input Channels:
1 x High-Pass: 100 Hz
Solo/Mute
Solo per Input Channel
Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects: Yes
Digital Audio
Sample Rates: 96 kHz
Bit Depth: 24-Bit
Connectivity
Analog Inputs:
2 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x XLR 3-Pin Balanced Mic Input
6 x 1/4" TRS Balanced/Unbalanced Line Input
2 x 1/4" TRS Unbalanced Line Insert
2 x 1/4" TRS Balanced/Unbalanced Hi-Z Input
6 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (3 Stereo Pairs)
1 x 1/4" TRS Footswitch Input
Analog Outputs:
2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Control Room Output (1 Stereo Pair)
1 x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output
1 x 1/4" TRS Balanced/Unbalanced FX Send
Phantom Power: +48 V (on 4 Channels)
USB:
1 x USB-B (Audio Playback, Host Connection, Recording)
Bluetooth: None
Power
AC Power I/O: 1 x IEC Input
Power Consumption: 30 W
Recording
Max Multitrack Recording: 8 Tracks
Media Support: SD
Rack Mountable: No
Dimensions: 10.5 x 11 x 4.5" / 26.7 x 27.9 x 11.4 cm
Weight. 7 lb / 3.2 kg
Package Weight: 9.745 lb / 4.42 kg
Box Dimensions: 15.1 x 14.9 x 7.5" / 38 x 38 x 19 cm

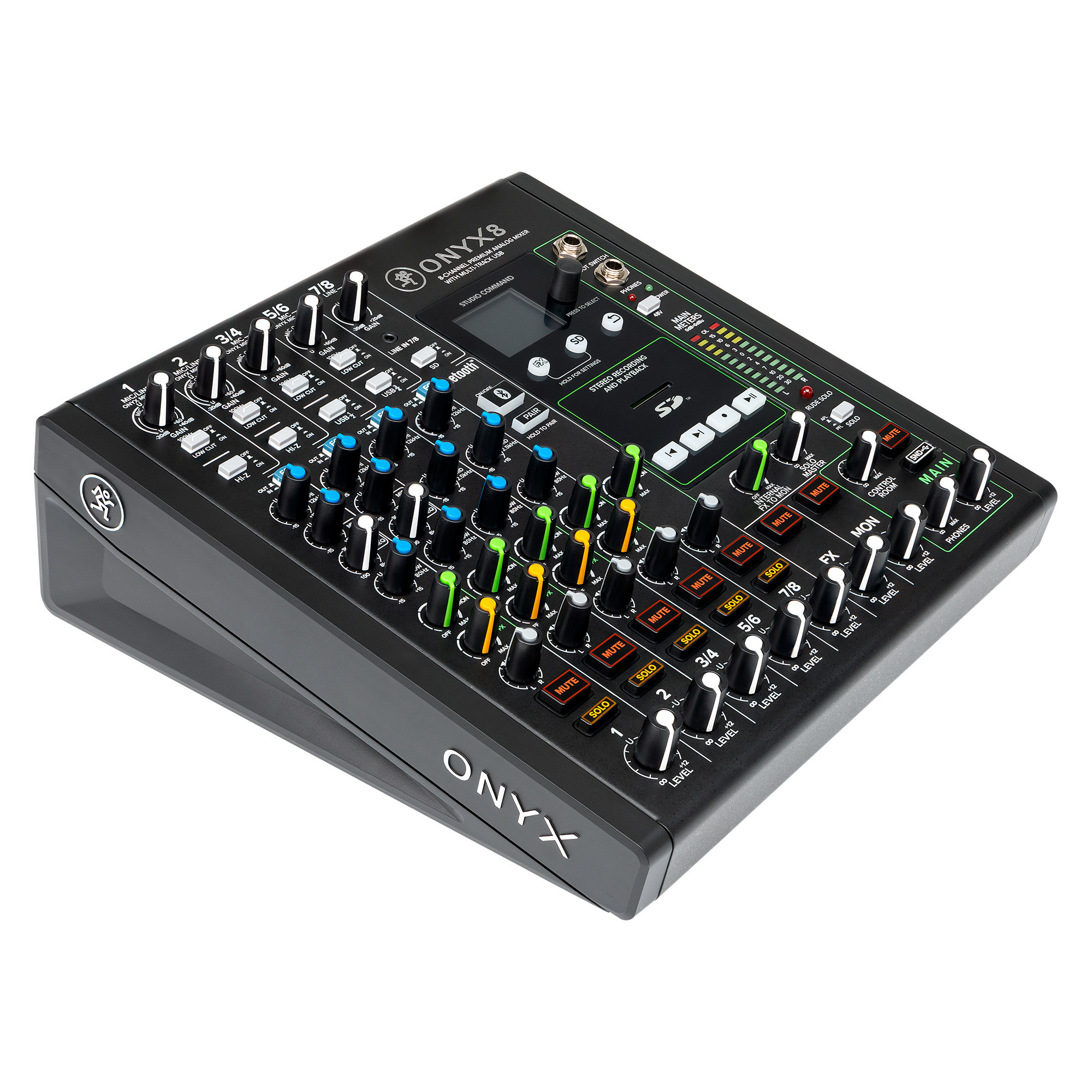

Mackie Onyx8 8-Channel Premium Analog Mixer with Multitrack USB
Power Cord
