TF5

Name: TF5
Brand: Yamaha
SKU: TF5
Price: 8678151 NGN
Availability: OutOfStock

Yamaha

Mixer 40 + 2 St & 2 Return, 20 AUX buses + Stereo + Sub, 8 DCA groups

go to the technical sheet

₦ 8,678,151.00

₦ 8,072,699.00 VAT excl.

Available in 34 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Yamaha Mixer 40 + 2 St & 2 Return, 20 AUX buses + Stereo + Sub, 8 DCA groups

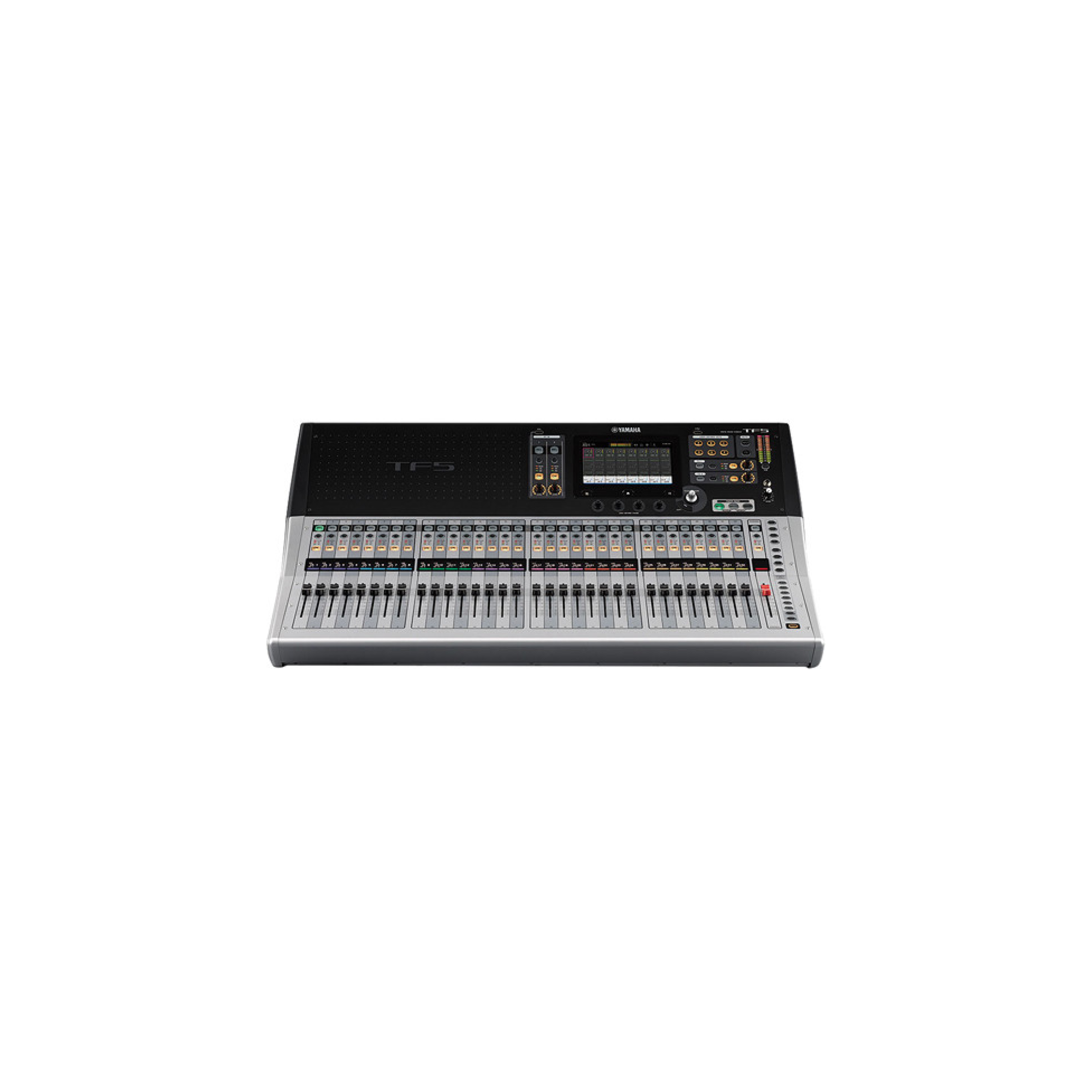

The Yamaha TF5 is a rack-mountable digital audio mixing console that features a touchscreen display, 33 motorized faders, and is expandable up to 48 input channels by adding the optional Tio1608-D I/O rack.
Ideal for a multitude of live sound reinforcement scenarios, the TF5 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device.

The TF5 console itself provides 32 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs.
Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors.
In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression.
The TF5 ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities.

- 33 motor faders (32 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
- 8 DCA groups with Roll-out
- 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- Download information for CUBASE AI DAW software
- Optional rackmount kit
- 1 expansion slot for optional NY64-D Dante audio interface card
- Optional Tio1608-D Dante equipped I/O rack with 16 microphone/line inputs and 8 line outputs

Audio Mixer

Yamaha

NY64-D

₦ 1,690,974.00 VAT included

Available in 14 days

Yamaha

RK1

₦ 117,765.00 VAT included

Available in 14 days

Download

Datasheet

Download (11.92MB)

Mixer
_____________________
Max I/O Capacity: 48x Input / 22x Output
Number of Analog Input Channels: 32 (32 Mono / 2 Stereo)
Number of Mic Preamps: 24
Number of Analog Output Channels: 16
Mix Routing:
- 1x Main LRC
- 1x Subgroup
- 6x Stereo Aux Send
- 8x Mono Aux Send
Groups: 8x DCA Group
Presets: Yes
Display: Touchscreen
Faders & Level Adjustment: 33x 3.9" / 100 mm Motorized Fader

Signal Processing
_____________________
Gain/Trim Range: -6 dB to +66 dB
EQ: No
Graphic EQ: Yes
Built-In Effects: 8x Effect (Type Unspecified)
Audio Delay: Yes

Digital Audio
_____________________
Sample Rates: 48 kHz
Bit Depth: Record: 24-Bit

Performance
_____________________
Frequency Response: 20 Hz to 20 kHz +0.5/-1.5 dB
Max Input Level:
- Mic/Line Input: +30 dBu
- Stereo Input: +10 dBV
Analog Dynamic Range: 107 dB at Min Gain
Headphone Output Power: 3 mW | 75 mW (Max)
I/O Impedance:
- Combo XLR-1/4" Input: 7.5 Kilohms
- Stereo RCA Input: 10 Kilohms
- XLR Output: 75 Ohms
- Headphone Output: 100 Ohms
Noise Floor: -85 dBu A-Weighted
THD: < 0.05% at Min Gain (+4 dBu)
Signal Generator: Yes

Connectivity
_____________________
Analog Inputs:
- 1x 1/4" TS Footswitch Input
- 32x Combo XLR-1/4" TRS Balanced Mic/Line Input
- 2x Stereo RCA Unbalanced Input
Analog Outputs:
- 16x XLR Balanced Output
- 1x 1/4" TRS Unbalanced Headphone Output
Digital I/O: 1x RJ45 (Network)
MIDI I/O: No
USB I/O:
- 1x USB-B (Host Connection)
- 2x USB-A (Control, External Memory)
Expansion Ports: 1x I/O Card
Mobile App Compatible:
Yes: Android & iOS
App Name: TF Editor, TF StageMix, MonitorMix
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed

Recording
_____________________
Max Multitrack Recording: 34 Tracks
File Format Support:
- Playback: MP3, WAV
- Record: WAV

Power
_____________________
Input Power: 100 to 240 VAC, 50 / 60 Hz
Rack Mountable: No

General
_____________________
Dimensions: 34.1 x 8.9 x 23.6" / 866 x 225 x 599 mm
Weight: 44.1 lb / 20 kg
