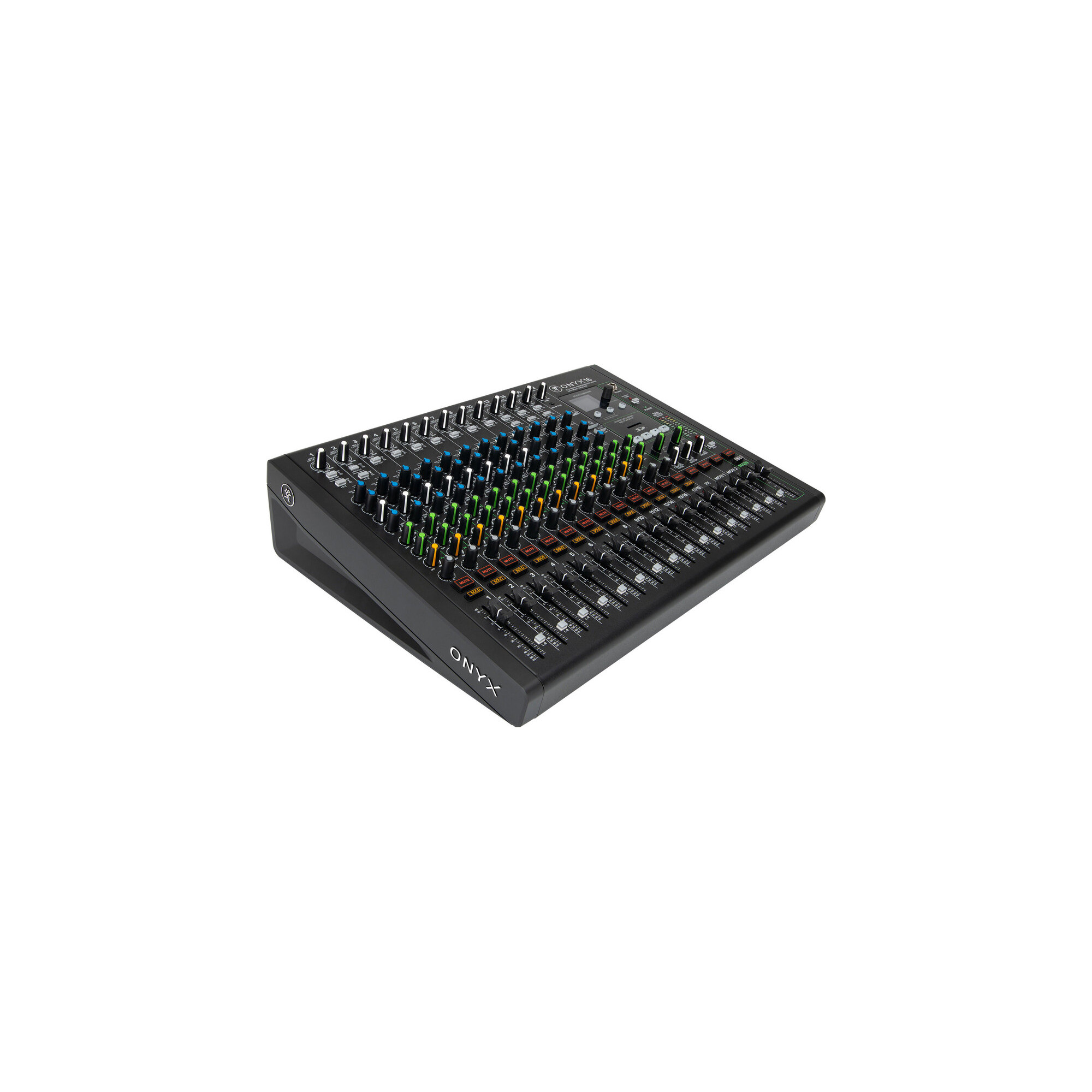

Onyx 16

Mixer
Number of Analog Input Channels: 18 (8 Mono / 5 Stereo)
Number of Mic Preamps: 12
Analog Output Channels:
2 x Stereo Master Output
2 x Stereo Control Room/Monitor Output
2 x Mono Aux Send Output
1 x Mono FX Send Output
1 x Stereo Headphone Output
Mix Routing:
1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Faders & Level Adjustment
13 x 2.4" / 60 mm Channel Fader
1 x 2.4" / 60 mm FX Fader
2 x 2.4" / 60 mm Bus/Subgroup Fader
1 x 2.4" / 60 mm Master Fader
Meters
Main Meter:
2 x 12-Segment LED
Meter Range: -30 dB to +20 dB Peak/Clip
Gain/Trim Range: +60 dB
Dynamic Processing: None
EQ
3-Band Semi-Parametric
3-Band Shelving/Notch/Peak
EQ
3-Band Semi-Parametric
3-Band Shelving/Notch/Peak
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 8 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz
Filters
Input Channels:
1 x High-Pass: 100 Hz
Solo/Mute
Solo per Input Channel
Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects: Yes
Sample Rates: 96 kHz
Bit Depth: 24-Bit
Connectivity
Analog Inputs:
12 x XLR 3-Pin Balanced Mic Input
8 x 1/4" TRS Balanced/Unbalanced Line Input
4 x 1/4" TRS Unbalanced Line Insert
2 x 1/4" TRS Balanced/Unbalanced Hi-Z Input
10 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs)
1 x 1/4" TRS Footswitch Input
Analog Outputs:
2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output
1 x 1/4" TRS Balanced/Unbalanced FX Send
Phantom Power: +48 V (Applied to All Inputs)
Digital I/O: None
Power
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O: 1 x IEC Input
Power Consumption: 45 W
Recording
Max Multitrack Recording: 18 Tracks
Media Support: SD
Physical
Rack Mountable: Yes
Dimensions: 18.7 x 14 x 4.5"/ 47.5 x 36 x 11.43 cm
Weight: 15.2 lb/ 6.9 kg
Packaging Info
Package Weight: 20.28 lb/ 13 kg
Box Dimensions: 22.8 x 17.3 x 7.6"/ 58 x 44 x 19 cm

Mackie Onyx16 16-Channel Premium Analog Mixer with Multitrack USB
Power Cord
