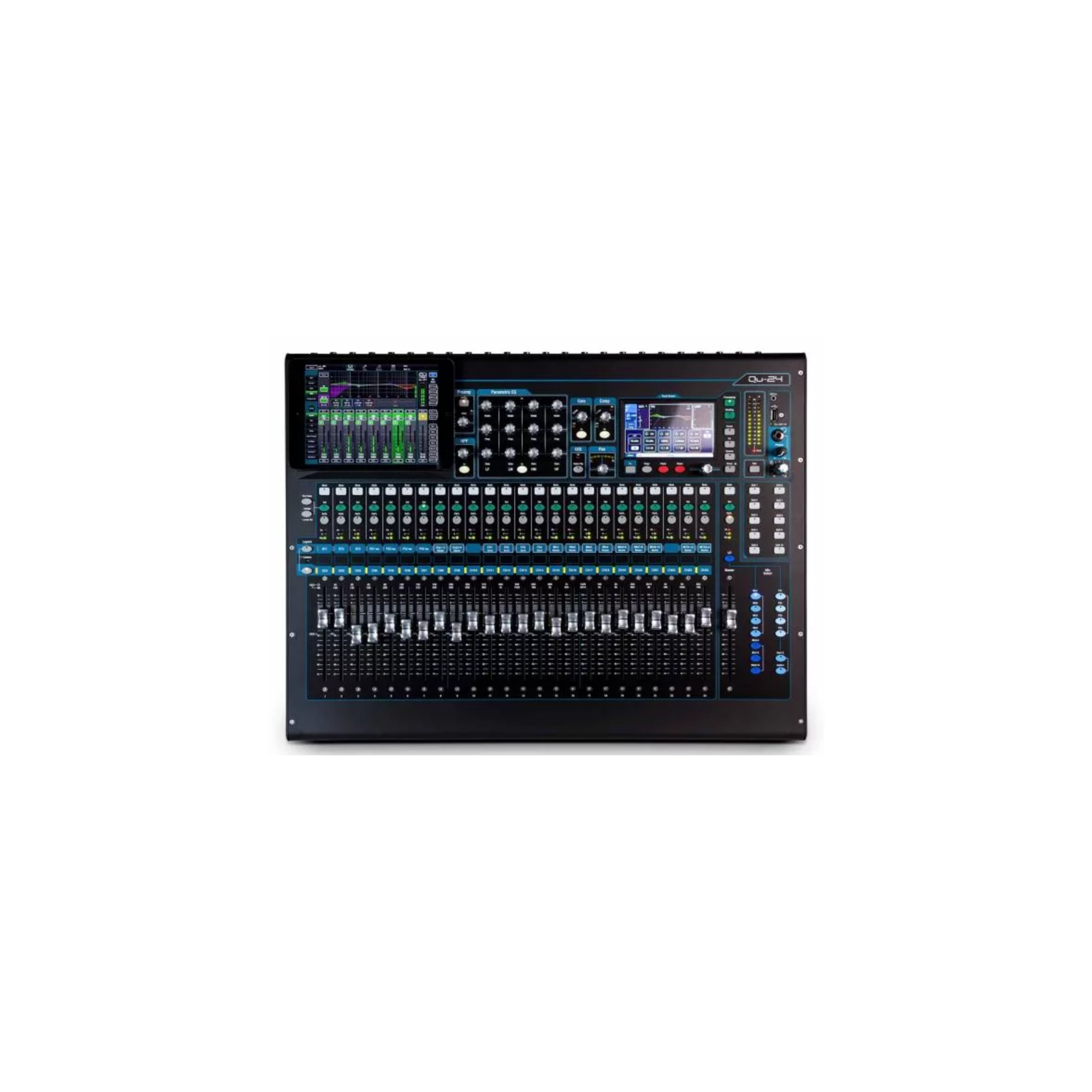

QU-24

Allen-Heath Digital mixer, 24 inputs/20 outputs with AMM, dSnake, USB

Massive processing power and advanced functionality counts for nothing if you can't access the controls you need in a heartbeat.
Qu-24 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow.
Because every mic input is presented on its own fader for fast, easy control, this makes Qu-24 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.
The True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-24's interface, providing super-fast access to all settings and parameters.
Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
Complementing the touchscreen is the SuperStrip - a set of single-function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan.

° World Class Processing & FX
Qu's RackFX dynamics and FX algorithms are derived from those used in our pro touring series.
Some of the world's most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units.
Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more.
FX are returned to the mix on dedicated return channels, so you're not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ.

° Record. Stream. Mix
With its built-in audio interface, Qu-24 can record up to 32 tracks to your Mac or PC, and returns from the computer can be easily assigned to the Input channels of the mixer.
Standard MIDI control is sent over the USB and network connections, this can be mapped to the faders of your favorite DAW using our MIDI Control app which provides easy setup and emulation of HUI or Mackie Control protocols.

° Everything I/O
Qu-24 is a self-contained mixer, so if you've already got the analogue cables you're good to go.
But if you're thinking of trading in the multicore for a Cat5 digital snake, the built-in dSNAKE™ port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox from our Everything I/O range of remote expanders.

° Qu-Drive: Record without a computer
Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive.
Capturing multitrack recordings of your shows has never been so easy.
A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1.
On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.

° AMM: Automatic Mic Mixer
AMM is vital in applications such as conferences, meetings and panel discussions where a number of microphones are open at the same time.
Reducing background noise and minimising the risk of feedback, the Automatic Microphone Mixer helps the engineer to manage the levels of multiple mic inputs, ensuring that each speaker's contribution is heard clearly.
The D-Classic dynamic gain sharing algorithm is inspired by industry standard automixers.
Up to 16 microphone sources can be mixed at once, with each channel having a priority setting which determines its ‘weight' in the total system gain.
