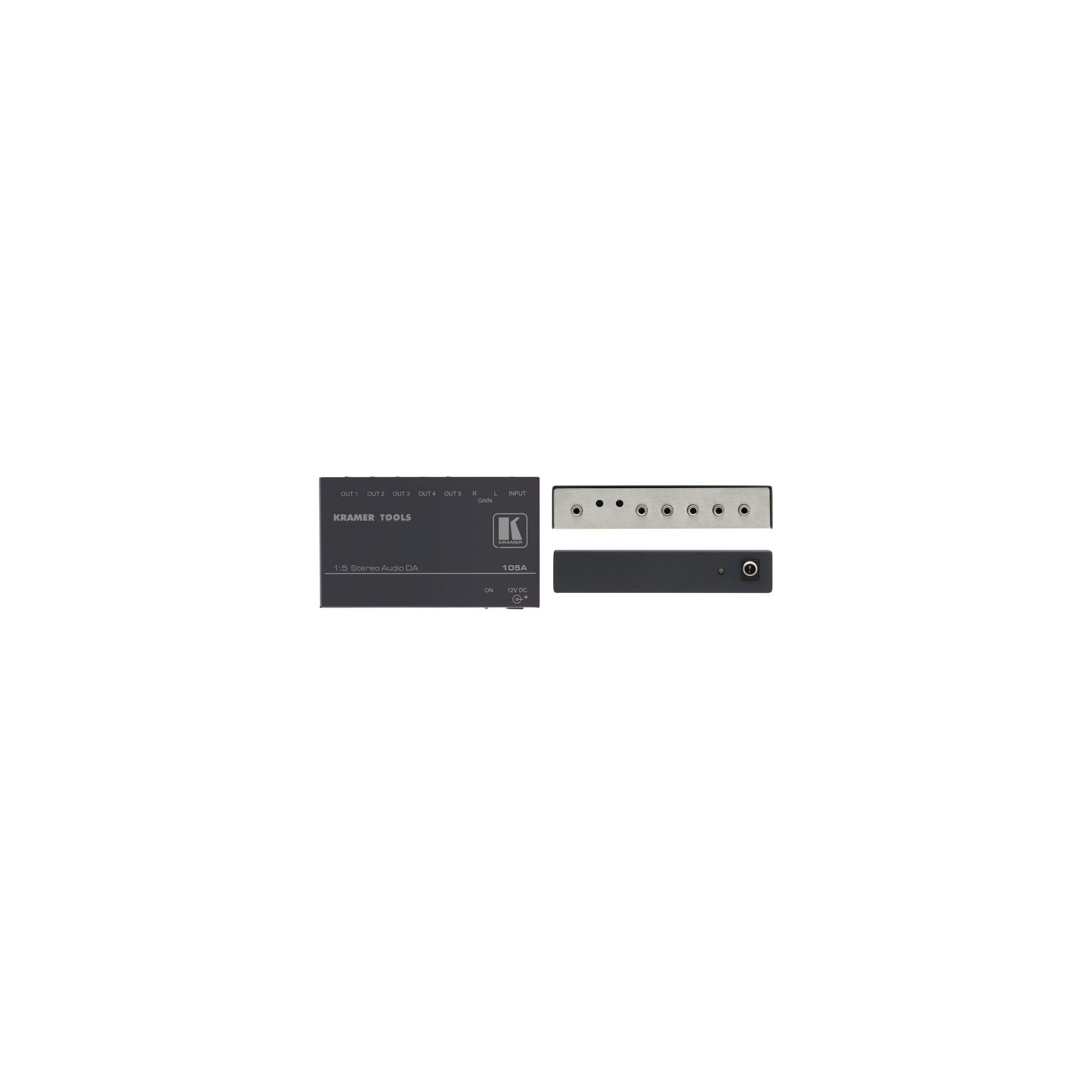

105A

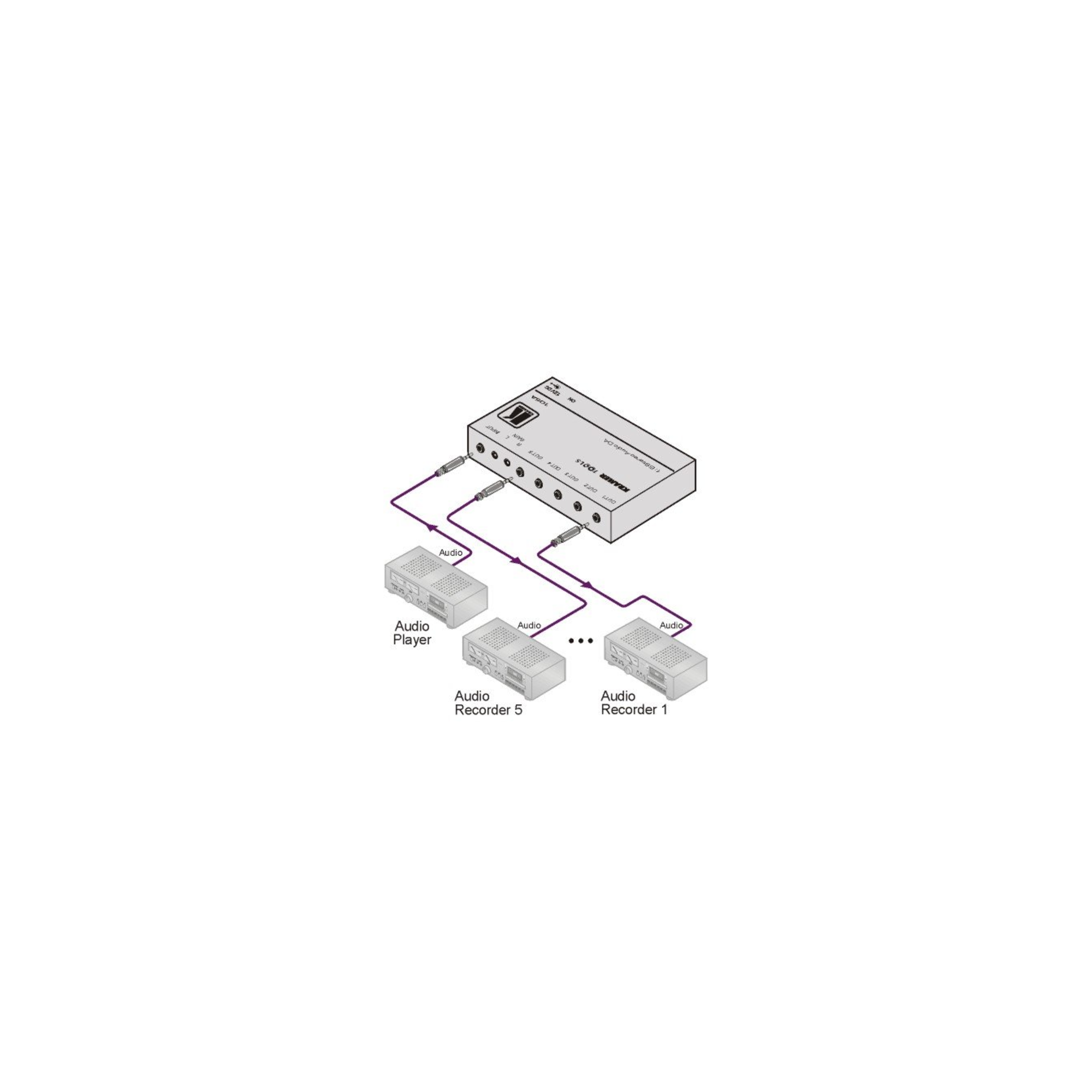

The 105A is part of the mini-series of compact distribution amplifiers. It accepts one unbalanced input on a stereo mini-plug and outputs five identical stereo audio signals through 3.5mm mini plugs. Typical applications are for consumer audio equipment distribution or can be used in conjunction with video distribution amplifiers to distribute the audio for VCR''s or DVD''s.

Compact Size
Part of Comprehensive''s mini-series, this unit is small enough to fit multiple units into existing rack space. It is also portable enough to use on location productions or in a multi-equipment audio-video situation.

Multiple Function
Anything using an unbalanced audio signal can be distributed; consumer VCR''s, DVD''s, computer sound cards and background music are just some of the functions, only limited by your imagination.

AC or DC Operation
This unit comes with an AC power supply as standard equipment and can also be powered with 12 Volts DC from an automobile, camera or other 12 Volt supply. With a VA-50P power supply multiple units can be used on one AC output.

Input One stereo audio unbalanced, 1 Vpp @ 33K ohms on a 3.5 mm mini-phone connector
Output Five stereo audio unbalanced, 1 Vpp @ 50 ohms on a 3.5 mm mini-phone connectors
Coupling AC
Audio Bandwidth 20 KHz -0.1 dB
Signal to Noise Ratio 80 dB Unweighted
Audio THD Less than 0.03% (2nd Harmonic)
Audio Control Left and Right Gain Controls
Trim Potentiometers 0 to +3.5 dB
Dimensions 4.7 x 2.95 x 0.98" (WxDxH)
12 x 7.5 x 2.5cm (WxDxH)
Weight 0.62 lbs
0.28 kg
Power Source 12 VDC @ 100 mA
From a Supplied AC Adapter
Optional Equipment VA-50P Muliple Unit Power Supply
