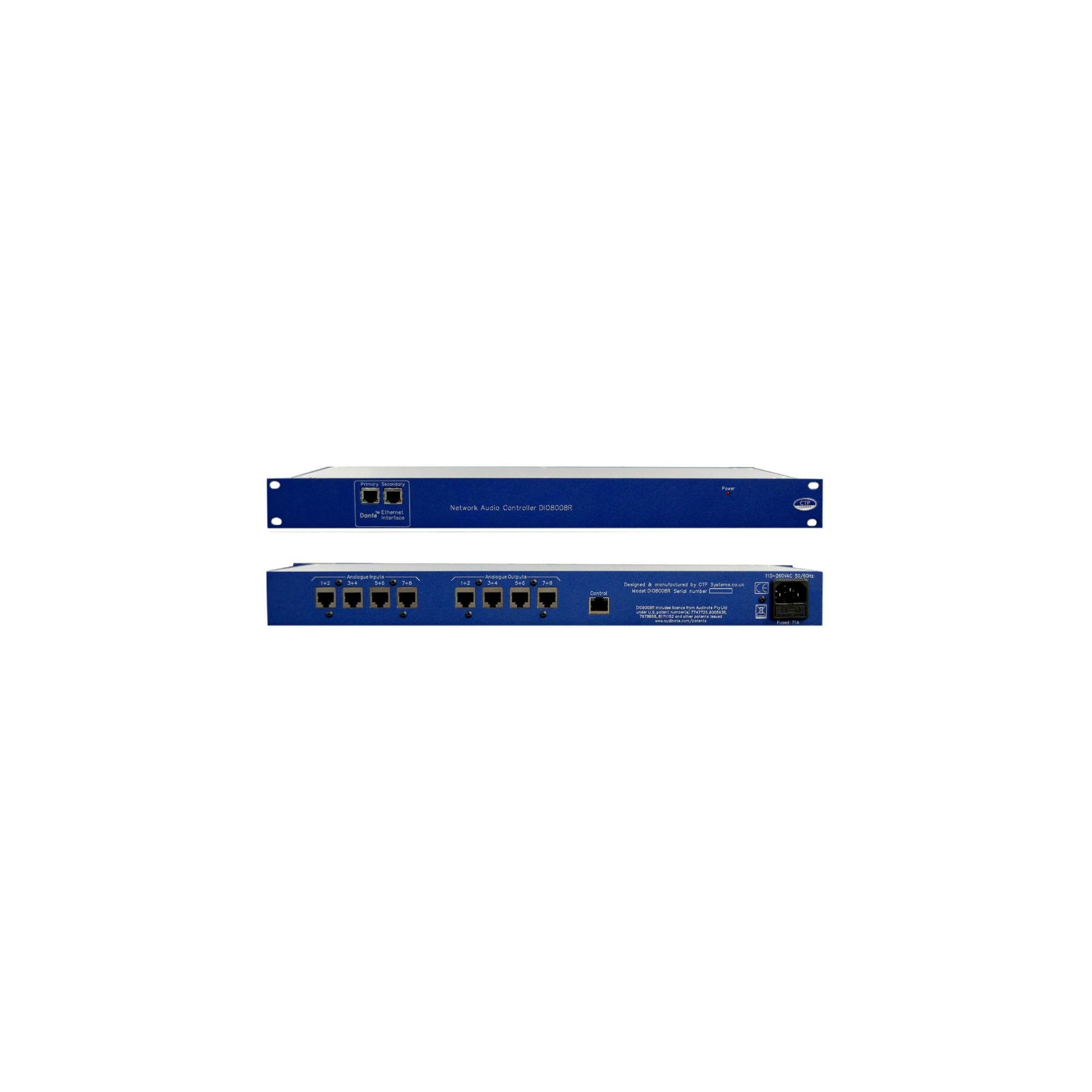

DIO8008R

The DIO8008R is a Dante enabled control unit for switching audio sources/destinations under Command Line Interface (CLI) or Telnet control. The unit is highly suitable for automated switching and is especially suitable for use within radio station infrastructure. The unit has sixteen Dante inputs and sixteen Dante outputs as well as eight balanced analog inputs and eight balanced analog outputs. The analog IO may be supplied with Studiohub+ (DIO8008R) or XLR (DIO8008RX) connections.
The unit has sixteen Dante inputs and sixteen Dante outputs as well as eight balanced analogue inputs and eight balanced analogue outputs. The analogue IO may be supplied with Studiohub+ (DIO8008R) or XLR (DIO8008RX) connections.
The DIO8008R includes an ethernet control port, separate from the Dante ports and with its own IP address. This port controls all matrix switching. Signal levels for both inputs and outputs may also be controlled in 1dB steps from -12dB to +12dB. The DIO8008R has a built in network switch for network redundancy. The unit operates on 110-240VAC with auto switching.
Dimensions: 1RU 150mm deep.
