AD-300

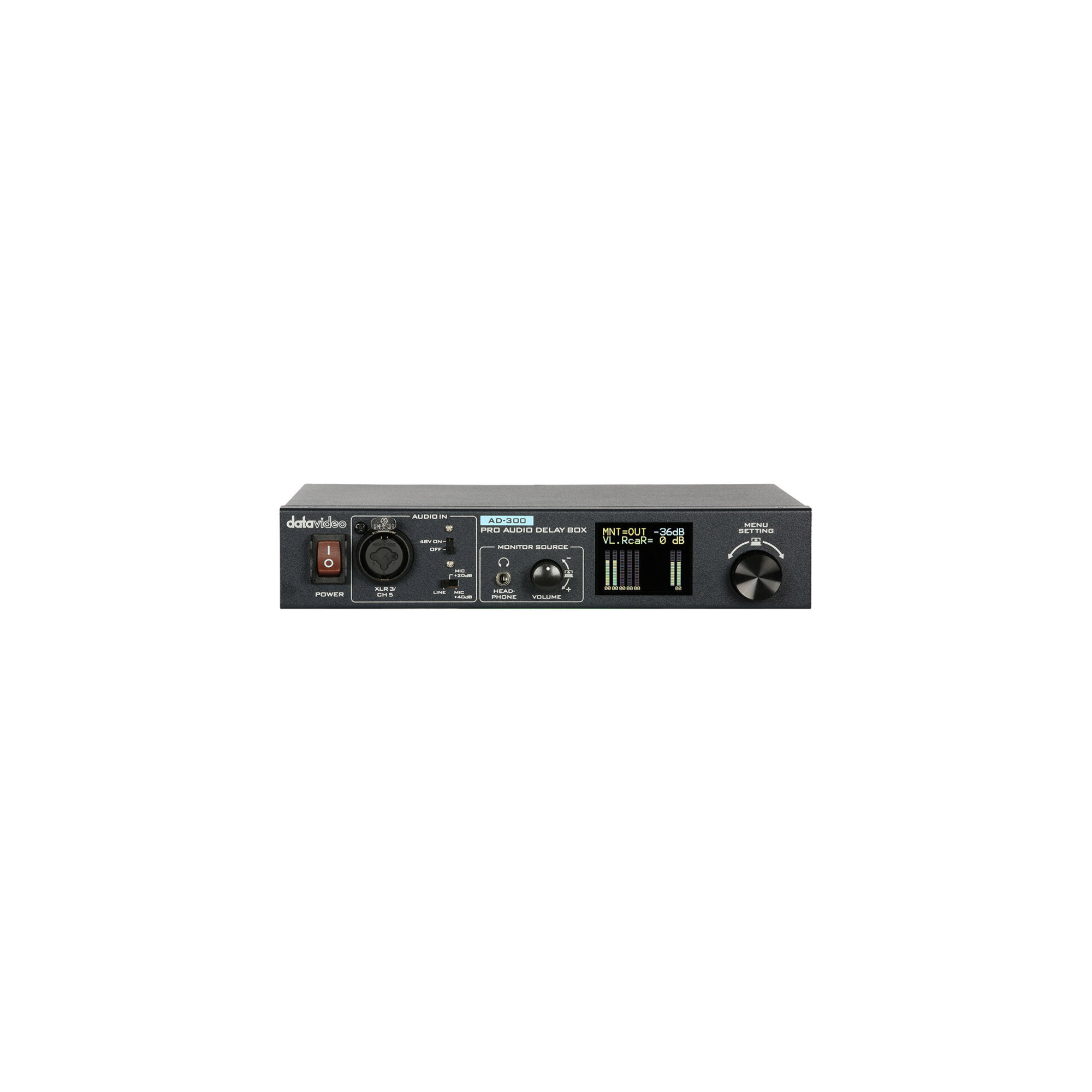

Datavideo Audio multiprocessor with delay function - AD-300 Black

Get multiple audio sources in sync with your video, using the AD-300 Pro Audio Delay Box from Datavideo.
This multifunction sound box offers 5 x input channels: a pair of RCAs, a pair of XLR-1/4" combo inputs, and an additional XLR-1/4" input on the front panel.
The combo inputs feature mic- and line-level switches along with phantom power switches to provide +48V phantom power for condenser microphones.
The unit offers a built-in mixer to route the incoming signals to a pair of stereo outputs with both balanced XLR and RCA connections to choose from.
The 3.5mm front-panel headphone jack provides quick monitoring.

Each channel on the AD-300 offers a digital delay adjustable from 0 to 3000 ms, allowing you to get professional synchronization from multiple sources.
In addition, each channel offers a compressor, limiter, expander, and gate, allowing you to tame audio levels and reduce noise for more professional-sounding results.
High-pass and low-pass filters along with an 8-band EQ on every input provide precise control over frequency content, giving you additional audio-sculpting power.

A five-channel audio mixer matrix mapping the inputs to two audio output channels
Supports up to three-second delay for each audio input channel
Built-in balanced and unbalanced audio conversions
Audio processors: Compressor, Limiter, Gate, Expander, Filter, and Equalizer
Volume adjustment for each audio input channel
Audio gain control
Test tone for volume correction
Microphone and audio line composite input
Supports XLR mic input and +48V phantom power
LCD display for OSD menu and mode selection
Easy-to-read color metering
Rack-mountable desktop design
