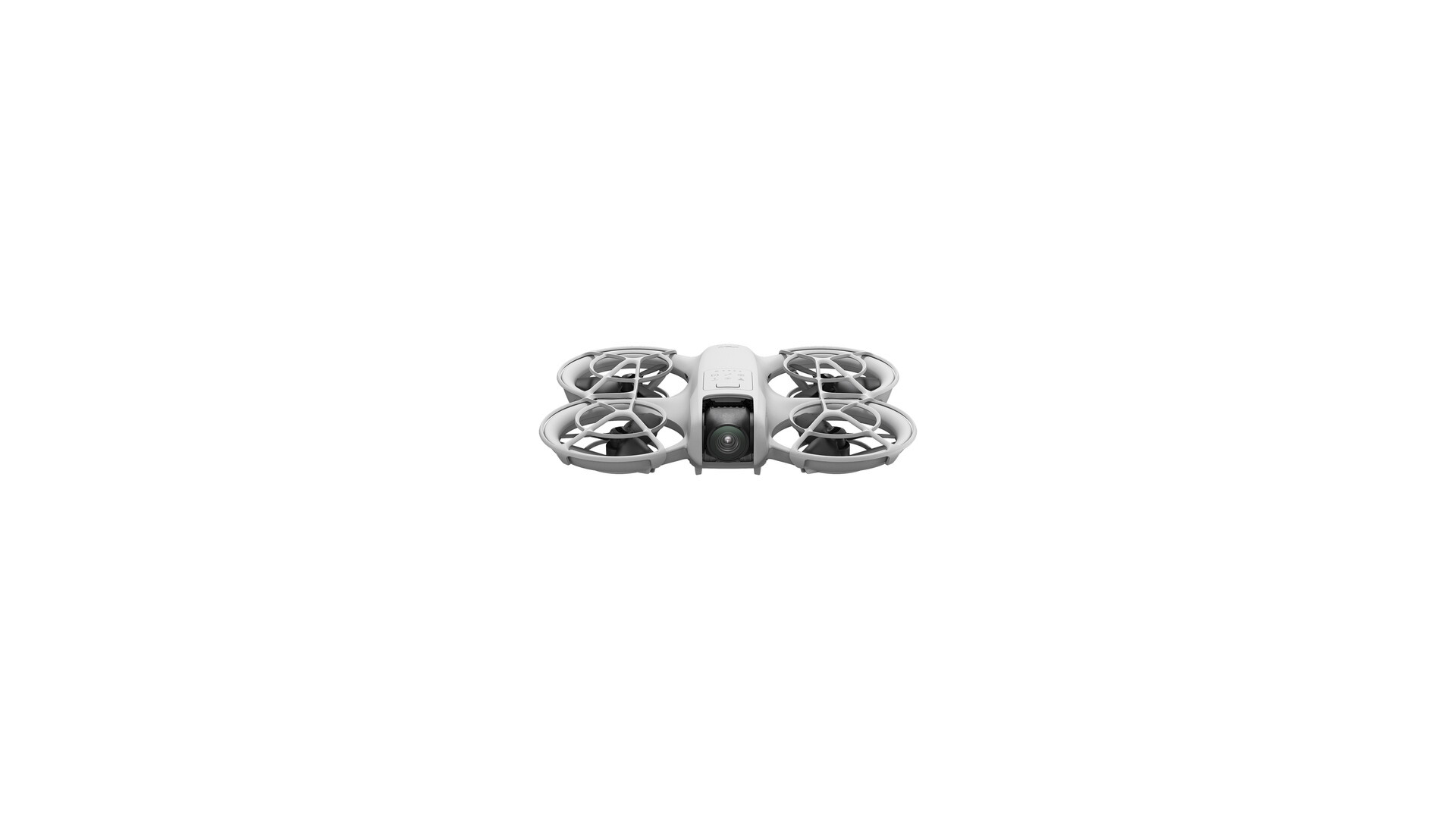

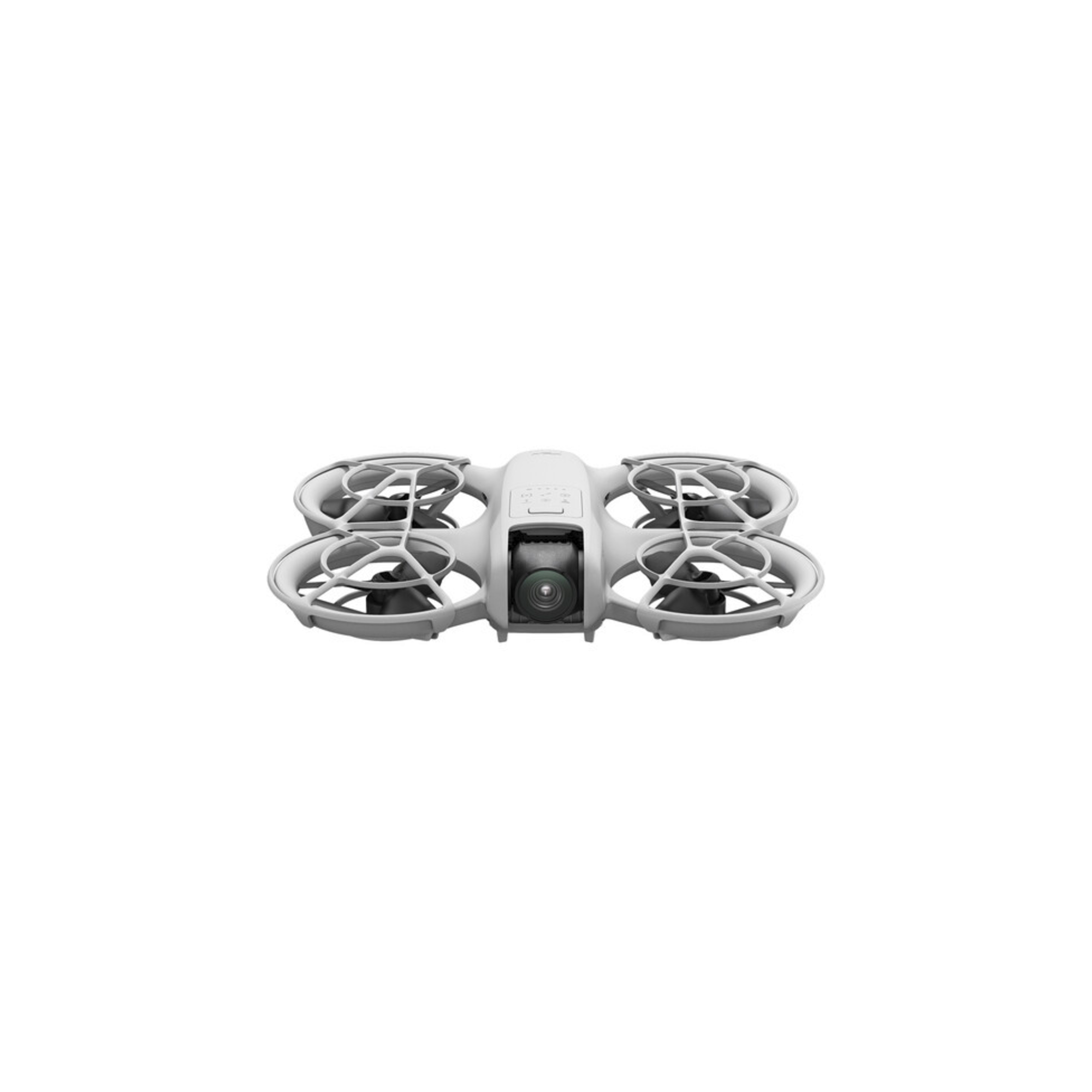

DJI NEO

Drone
____________________________
Maximum climb rate:
- 0.5 m/s (Cine mode)
- 2 m/s (Normal mode)
- 3 m/s (Sport mode)
Maximum descent rate:
- 0.5 m/s (Cine mode)
- 2 m/s (Normal mode)
- 2 m/s (Sport mode)
Maximum horizontal speed (near sea level, no wind):
- 6 m/s (Normal mode)
- 8 m/s (Sport mode)
- 16 m/s (Manual mode)
Maximum takeoff altitude: 2000 m
Data acquired in a windless environment during takeoff from an altitude of 2000 m and a vertical climb of 120 m, using Sport mode and battery level from 100% to 20%.
The data is for reference only.
Always pay attention to the notifications in the camera view during flight.
Maximum flight time: Approximately 18 min (17 min with propeller guards)
Hovering time: Approximately 18 min (17 min with propeller guards)
Maximum flight distance: 7 km
Data acquired while flying forward at a speed of 8 m/s in a windless environment at 20 m above sea level, with the camera settings set to 1080p/30fps, video mode off, and battery level from 100% to 0%.
Results may vary depending on the environment, usage method, and firmware version.
Maximum wind speed resistance, 8 m/s (Level 4)
Operating temperature: -10° to 40°C
Global Navigation Satellite System: GPS + Galileo + BeiDou
Internal memory: 22 GB
Class: C0 (EU)

Camera
____________________________
Image sensor: 1/2" image sensor
Lens:
- FOV: 117.6°
- Equivalent format: 14 mm
- Aperture: f/2.8
- Focus: 0.6 m to infinity
ISO range:
- 100 - 6400 (auto)
- 100 - 6400 (manual)
Shutter speed:
- Video: 1/8000 - 1/30s
- Photo: 1/8000 - 1/10s
Maximum size of image:
- 12MP Photo
- 4000 x 3000 (4:3)
- 4000 x 2256 (16:9)
Photo modes: Single, Timed Shot
Photo format: JPEG
Video resolution:
- Without EIS: 4K (4:3): 3840x2880 @ 30fps | 1080p (4:3) 1440x1080 @ 60/50/30fps
- With EIS: 4K (16:9): 3840x2160 @ 30fps | 1080p (16:9): 1920x1080 @ 60/50/30fps
Video format: MP4
Maximum video bitrate: 75 Mb/s
Supported file systems: exFAT
Color mode: Normal

Stabilizer
____________________________
Stabilization: Single-axis mechanical stabilizer (tilt)
Mechanical range: Tilt: -120° to 120°
Controllable range: Tilt: -90° to 60°
Maximum control speed (Tilt): 100°/s
Angular vibration range: ±0.01°
Image roll correction: Supports correction of footage recorded on the drone | Live correction is not available only when using the headset

Detection
____________________________
Detection type: Downward visual positioning
Downward: Precise hovering range: 0.5 - 10 m
Operating environment:
- Downward: Defined non-reflective surfaces with diffuse reflectivity of >20% (e.g. walls, trees or people) | Adequate lighting (lux > 15 in normal indoor lighting conditions)

Video Transmission
____________________________
Video Transmission System: O4
Image Transmission Quality (Live View):
- With DJI RC-N3 Remote Controller: Up to 1080p/30fps
- With DJI Goggles 3 and DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps
Operating Frequency:
2.400-2.4835GHz
5.170-5.250GHz
5.725-5.850GHz
The permitted operating frequency varies by country and region. For more information, refer to local laws and regulations.
Transmitter Power (EIRP):
° 2.4 GHz:
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
° 5.1 GHz:
< 23 dBm (CE)
° 5.8 GHz:
< 26 dBm (FCC)
< 14 dBm (CE)
< 26 dBm (SRRC)
Frequency Band: Max. 40 MHz
Max. Download Speed: Wi-Fi: 25 Mbps
Data acquired in a laboratory environment with little interference, in countries/regions that support both 2.4 GHz and 5.8 GHz.
Download speed may vary depending on actual conditions.
Lowest latency:
- With DJI RC-N3 remote controller: Approximately 120 ms
- Depending on actual environmental conditions and mobile device.
Maximum video bitrate: 50 Mbps
Antennas: Dual antennas, 1T2R

Wi-Fi
____________________________
Protocol: 802.11a/b/g/n/ac
Operating frequency:
2.400-2.4835 GHz
5.725-5.850 GHz
The permitted operating frequency varies by country and region. Please refer to local laws and regulations for more information.
Transmitter power (EIRP):
° 2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
° 5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)
