D-RTK 3 Multifunctional

Name: D-RTK 3 Multifunctional
Brand: Dji
SKU: D-RTK 3 Multifunctional
Price: 2573022 NGN
Availability: OutOfStock

Dji

EAN: 6937224104792

Multi-Function Station for Matrice 4 - DJMT11

go to the technical sheet

₦ 2,573,022.00

₦ 2,393,508.70 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

DJI Multi-Function Station for Matrice 4 - CP.EN.00000551.01

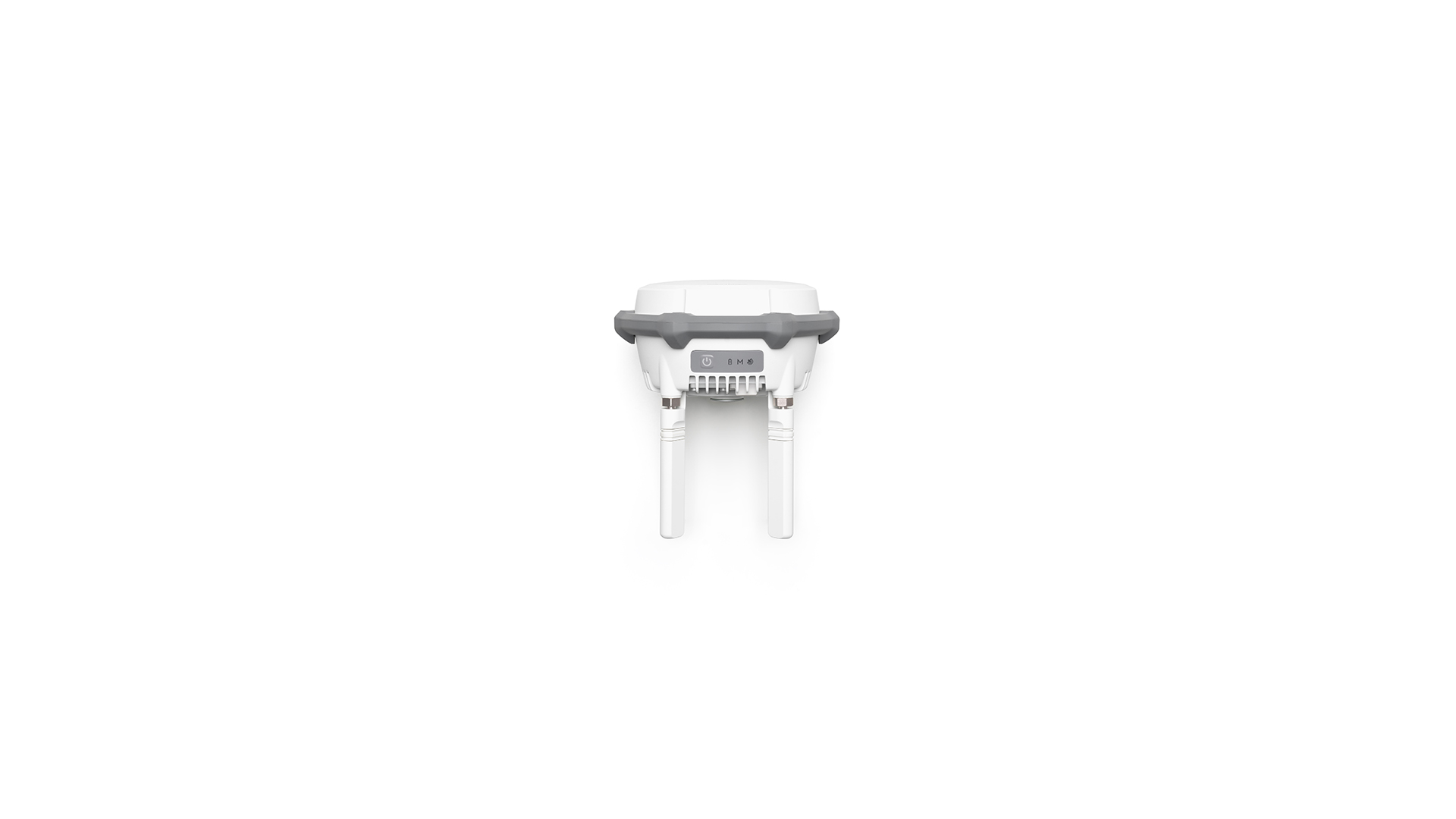

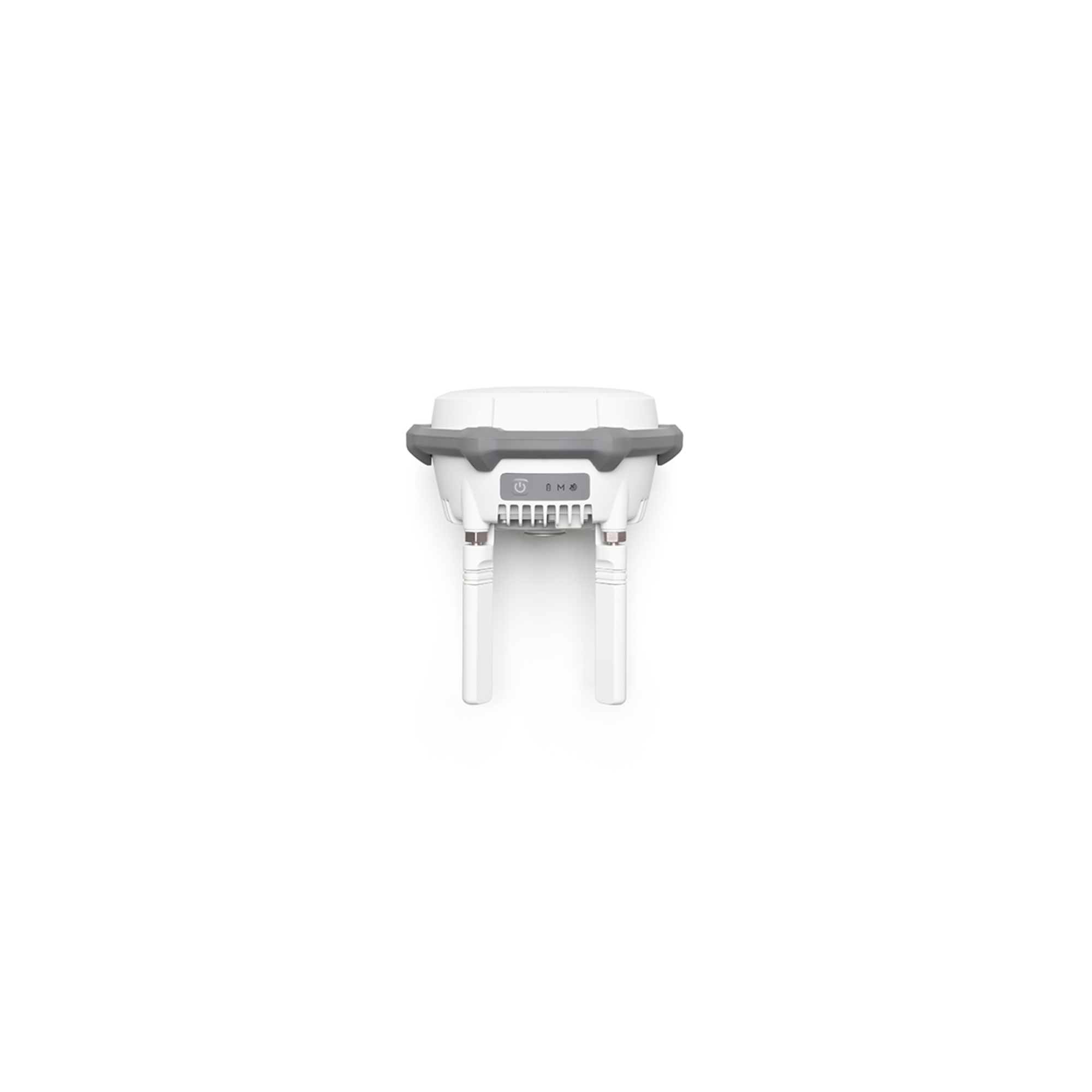

The new D-RTK 3 Multi-Function Station integrates high-performance antennas and receiver modules, capable of monitoring and resolving data from major global navigation satellite systems.
It supports multiple data transmission links and is capable of analyzing the position and orientation of the device via a built-in high-performance inertial measurement unit. With these extraordinary functions, it can act as a radar station to provide centimeter-level positioning for multiple drones simultaneously or extend the operating range of drones in relay station mode.
In addition, the new Rover Station mode, combined with the DJI ENTERPRISE app and DJI Terra, offers a complete solution for high-precision aerial surveying applications.

GNSS Frequency
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
Rover Station Mode Accuracy
Static Measurement
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
Tilt Measurement
Angle Range: 0° to 60°
Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
Maximum Transmission Distance (in Relay Station Mode, unobstructed and free of interference)
FCC:
- 15 km between aircraft and relay station
- 1 km between relay station and remote controller
SRRC:
- 12 km between aircraft and relay station
- 1 km between relay station and remote controller
CE:
- 8 km between aircraft and relay station
- 300 m between relay station and remote controller
Protection class: IP67 (station only)
Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
Weight: 1.26 kg
