DJI O4 Air Unit Pro

Name: DJI O4 Air Unit Pro
Brand: Dji
SKU: DJI O4 Air Unit Pro
Price: 436637 NGN
Availability: OutOfStock

Dji

EAN: 6941565997449

1/1.3" CMOS FOV 155° DIY Drone Camera - DJIO4P

go to the technical sheet

₦ 436,637.00

₦ 406,173.52 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

DJI O4 Air Unit Pro, 1/1.3" CMOS with 155° FOV, Stream 1080p100 Video, Record 4K120 Footage - CP.FP.00000233.01

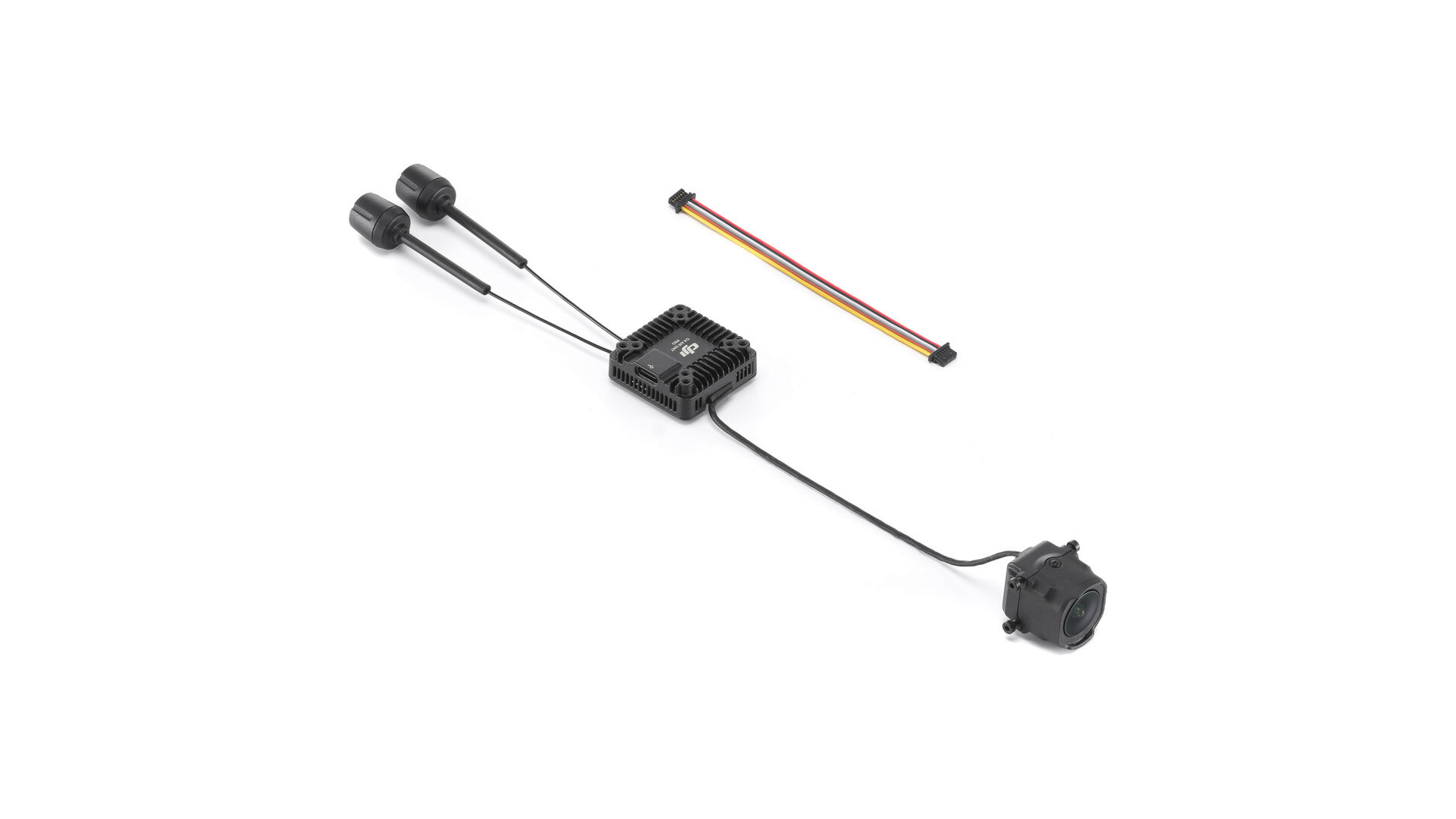

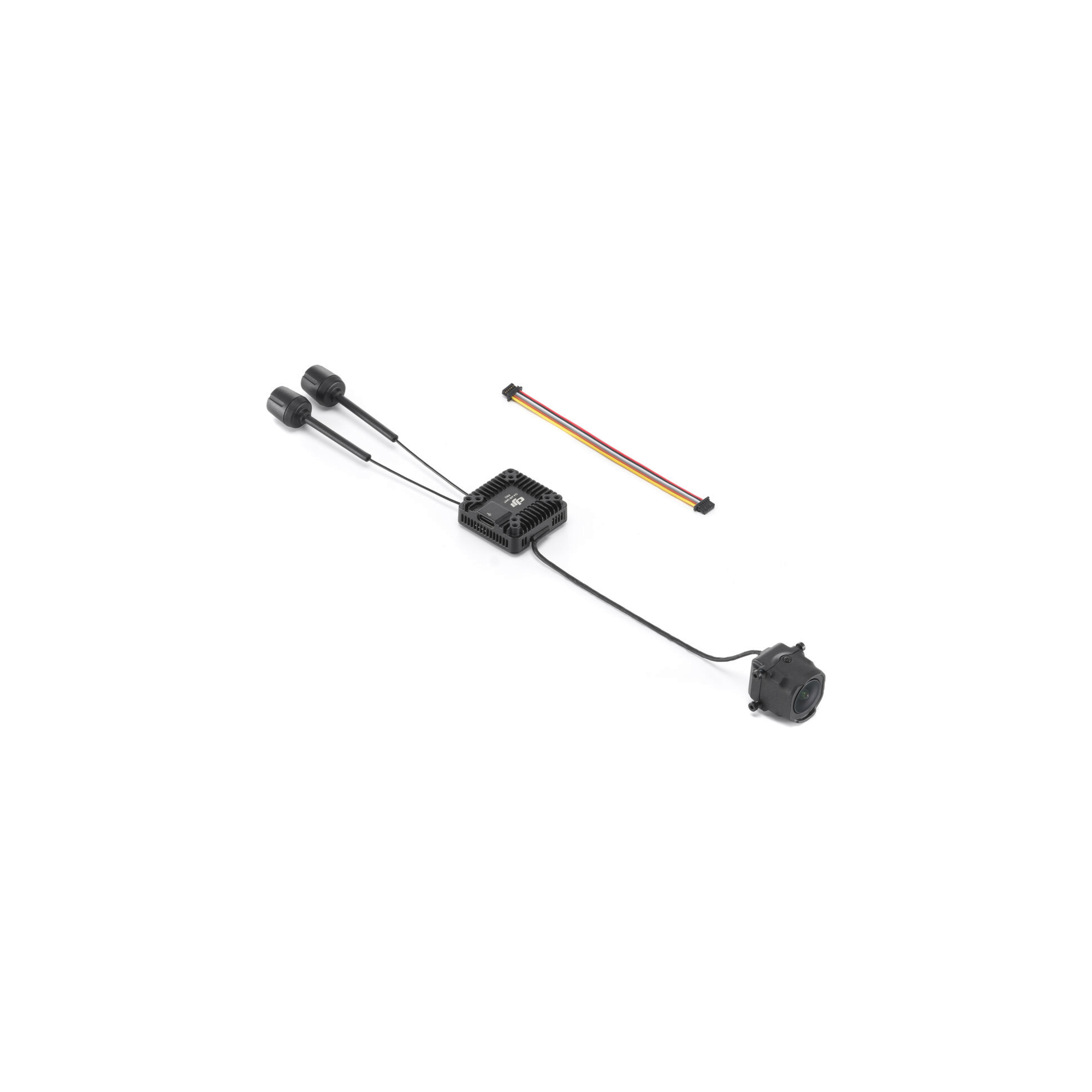

The O4 Air Unit Pro has a camera module and dual antennas, and it fits onto drone frames as small as 2".
Working with optional DJI Goggles, DJI's O4 transmission system can stream real-time video at 1080p with 100 fps from up to 9.3 miles away.
This smooth and thrilling first-person video gets even more stable with Racing Mode, which lowers latency down to 15 ms.
In the camera module, a 1/1.3" CMOS sensor captures 4K120 footage at a 155° ultrawide FOV.
This footage can be saved onto 4GB of built-in memory and optional microSD cards up to 512GB.

Device Compatibility
DJI's O4 Air Unit Pro is designed to work with the DJI Goggles Integra, Goggles 2, Goggles 3, Goggles N3, and DJI's FPV Remote Controller 3.

Stabilization Modes
RockSteady 3.0+ mode offers electronic image stabilization of footage at high speeds during video capture, while Gyroflow software (not included) lets you smooth footage offline post-flight.

OSD Customization
Supporting both Canvas mode and Betaflight, you may customize the OSD real-time data display in your goggles for clearer at-a-glance flight data.

General
Camera:
Image Sensor: 1/1.3" CMOS
FOV: 155°
Equivalent Focal Length: 12mm
Aperture: f/2.8
Minimum Focus Distance: 2'' / 0.6 m
ISO Range (Auto): 100 to 25,600
ISO Range (Manual): 100 to 25,600
Video Resolution (4K 4:3): 3840 x 2880 at 30, 48, 50, and 60 fps
Video Resolution (4K 16:9): 3840 x 2160 at 30, 48, 50, 60, 100, and 120 fps
Video Resolution (2.7K 4:3): 2888 x 2016 at 30, 48, 50, and 60 fps
Video Resolution (2.7K 16:9): 2688 x 1512 at 30, 48, 50, 60, 100, and 120 fps
Video Resolution (1080p 4:3): 1440 x 1080 at 30, 48, 50, 60, 100, and 120 fps
Video Resolution (1080p 16:9): 1920 x 1080 at 30, 48, 50, 60, 100, and 120 fps
Video Format: MP4
Video Bit Rate (Max): 130 Mb/s
Storage Capacity: 4 GB
Memory Card Type: microSD (Up to 512 GB)

Wireless
Wireless: 5.8 GHz Radio/RF
Mobile App Compatible: No
Type of Transmitter: Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85
Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE)
Transmitter Power (EIRP): 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), and <30 dBm (SRRC)
Transmission Range: With DJI Goggles 3/N3: Up to 9.3 Miles / 15 km (FCC), Up to 5 Miles / 8 km (CE/SRRC)
Live View Quality: 1080p at 30, 48, 50, 60, or 100 fps
Communication Bandwidth: 60 MHz (Max)
Antenna: 2T2R
Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels)
Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels)
Channels (FCC/SRRC/CE, 60/40 MHz): Channel 1 at 5794.5 MHz
Channels (FCC/SRRC/CE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH
Latency:
- With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 15 ms
- With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 19 ms
- With DJI Goggles 2 or Integra and 1080p/100: Down to 30 ms

Power
Power Source: Proprietary Interface
DC Input Power: 7.4 to 26.4 VDC

Physical
Color: Black
Operating Conditions: 14 to 104°F / -10 to 40°C
Cable Length:
- 5.5" / 140 mm (Coaxial)
- 3.9" / 100 mm (3-in-1)
Dimensions:
- 1.3 x 1.3 x 0.5" / 33.5 x 33.5 x 13 mm (Transmission Module)
- 1.01 x 0.9 x 0.8" / 25.55 x 23.3 x 20 mm (Camera Module)
- 4.3" / 110 mm (Each Antenna)
Weight:
-0.6 oz / 15.6 g (Without Camera Module)
- 1.1 oz / 32 g (With Camera Module)
- 0.1 oz / 2.1 g (Each Antenna)
