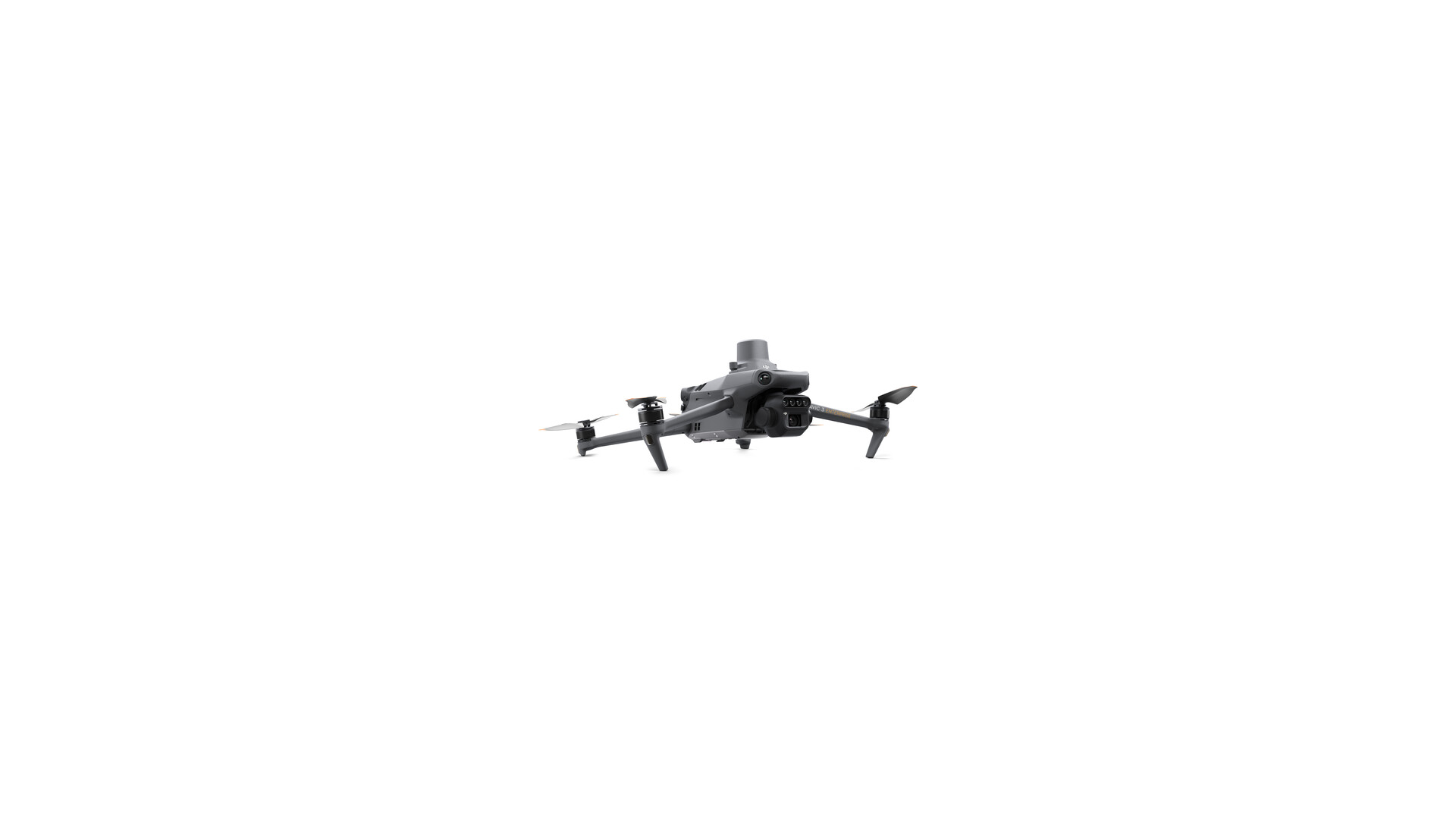

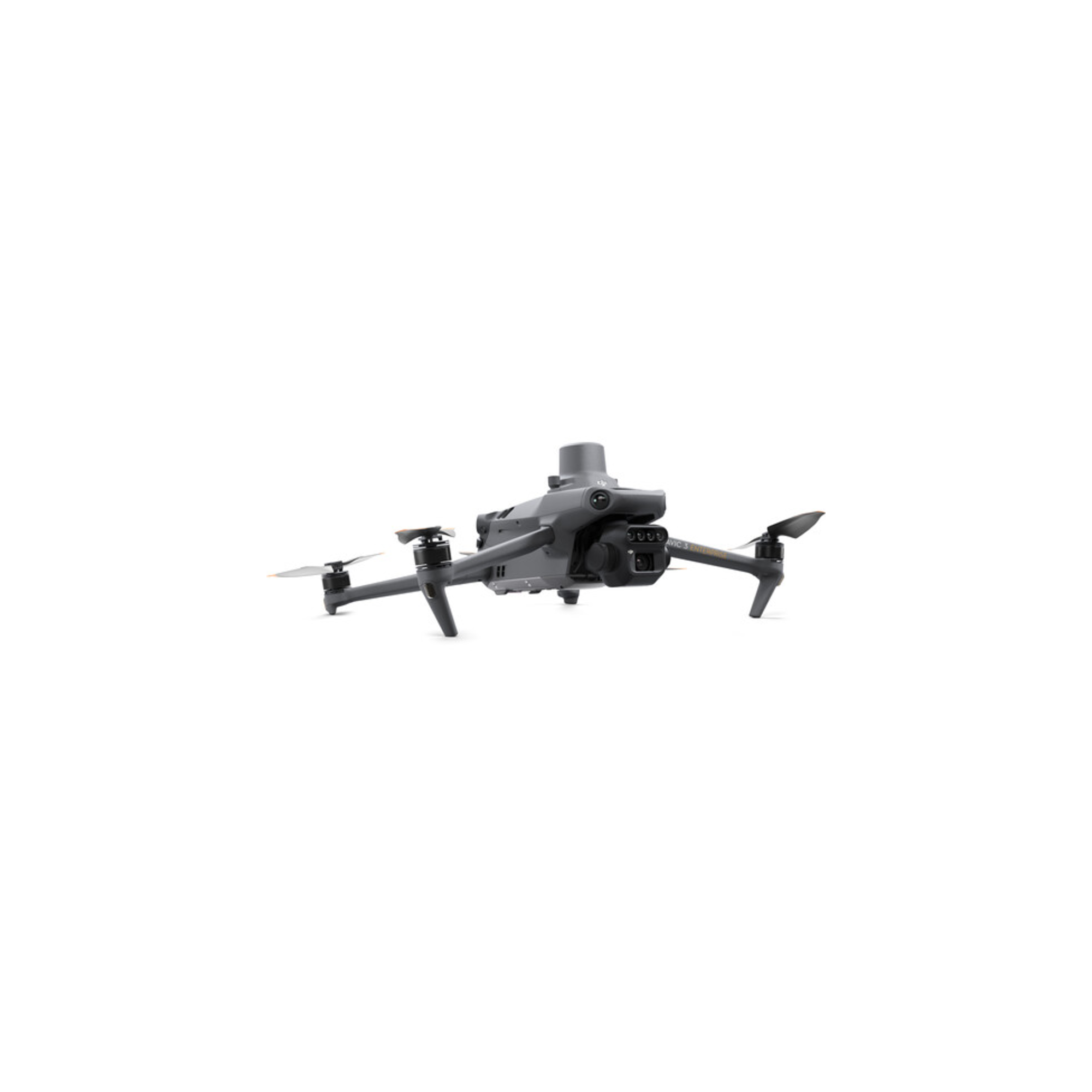

Dji Mavic 3 M + Care 2Y

Aircraft
Net weight (with propellers and RTK module): 951 G
Maximum take-off weight: 1,050 g
Dimensions (folded/unfolded):
° Folded (without propellers) 223×96.3×122.2 mm (Length×Width×Height)
° Open (without propellers) 347.5×283×139.6 mm (Length×Width×Height)
Diagonal distance: Diagonal: 380.1 mm
Maximum ascent speed:
° 6 m/s (Normal mode)
° 8 m/s (Sport mode)
Max Descent Speed:
° 6 m/s (Normal mode)
° 6 m/s (Sport mode)
Maximum speed (at sea level, no wind):
15m/s (Normal mode)
Forward Flight: 21m/s, Sideward Flight: 20m/s, Backward Flight: 19m/s (Sport Mode)
Maximum resistance to wind speed: 12m/s
Flight time (no wind): 43 minutes
Stationary flight time (no wind): 37 minutes
Flight distance (max.): 32 km

RGB camera
Image sensor: 4/3 CMOS; effective pixels: 20MP
Objective:
° FOV: 84°
° Equivalent focal length: 24mm
° Aperture: f/2.8 - f/11
° Focus: 1 m to 8
ISO range: 100-6400
Shutter Speed:
° Electronic shutter: 8-1/8,000s
° Mechanical shutter: 8-1/2,000 s
Maximum image size: 5280×3956
Photo shooting mode:
° Single shot: 20MP
° Timelapse: 20MP
° JPEG: 0.7/1/2/3/5/7/10/15/20/30/60s
°JPEG+RAW: 3/5/7/10/15/20/30/60s
° Panorama: 20 MP (original material)
Video resolution:
° H.264:
° 4K: 3840×2160 at 30fps
° FHD: 1920×1080@ at 30fps

Multispectral camera
Image sensor: 1/2.8" CMOS, effective pixels: 5MP
Objective:
° FOV: 73.91° (61.2° x 48.10°)
° Equivalent focal length: 25mm
° Aperture: f/2.0
° Focus: Fixed focus
Multispectral Camera Band:
° Green (G): 560 ± 16 nm;
° Red (R): 650 ± 16 nm;
° Red Edge (RE): 730 ± 16 nm;
° Near-infrared (NIR): 860 nm ± 26 nm
Shutter Speed: Electronic Shutter: 1/30~1/12800s
Image format: TIFF
Video format: MP4 (MPEG-4 AVC/H.264)

Stabilizer
Stabilization system: 3-axis mechanical (tilt, roll and horizontal rotation)
Mechanical range:
° Tilt: -135° to +45°
° Roll: -45° to +45°
° Horizontal rotation: -27° to +27°
Controllable Distance:
° Tilt: -90° to +35°
° Horizontal rotation: Uncontrollable
Maximum control speed (tilt): 100°/s
Angular Vibration Range: ±0.007°

Sensor system
Detection system type:
° Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
Forward:
° Distance measurement range: 0.5m to 20m
° Detection range: 0.5m to 200m
° Effective speed of obstacle avoidance: Flight speed =15 m/s
° FOV: Horizontal 90°, vertical 103°
Backwards:
° Distance measurement range: 0.5m to 16m
° Effective speed of obstacle avoidance: Flight speed =12 m/s
° FOV: Horizontal 90°, vertical 103°
Lateral:
° Distance measurement range: 0.5m to 25m
° Effective speed of obstacle avoidance: Flight speed =15 m/s
° FOV: Horizontal 90°, vertical 85°
Upward:
° Distance measurement range: 0.2m to 10m
° Effective speed of obstacle avoidance: Flight speed =6 m/s
° FOV: Front and back: 100°, left and right 90°
Inferior:
° Distance measurement range: 0.3m to 18m
° Effective speed of obstacle avoidance: Flight speed =6 m/s
° FOV: Front and rear: 130°, left and right 160°

Drums
Capacity: 5,000mAh
Standard Voltage: 15.4V
Charging voltage (max.): 17.6V
Battery model: LiPo 4S
Chemical system: Cobalt and lithium
Energy: 77Wh
Weight: 335.5g
Charging temperature: from 5°C to 40°C

Battery charger
Input: 100V to 240V (AC), 50Hz to 60Hz, 2.5A
Output power: 100 Watts
Exit:
° Maximum power output of 100 Watts (total)
° When both ports are used, the maximum maximum output power of one interface is 82W, and the charger will dynamically allocate the output power of the two interfaces according to the power load.)

Mavic 3M aircraft
RTK module
Intelligent Flight Battery for Mavic 3
64GB MicroSD card
Stabilizer protection
3x Mavic 3 Enterprise Series Propellers (Pair)
RC Pro Enterprise
Screwdriver
USB-C Power Adapter (100W)
100W AC Power Adapter Cord
USB-C cable
USB-C to USB-C data cable
Protective case
