DJI Goggles 3

Name: DJI Goggles 3
Brand: Dji
SKU: DJI Goggles 3
Price: 1239763 NGN
Availability: OutOfStock

Dji

EAN: 6941565980069

DJI O4 video transmission viewer, AR cursor, max. operating autonomy. 3h

go to the technical sheet

₦ 1,239,763.00

₦ 1,153,268.05 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

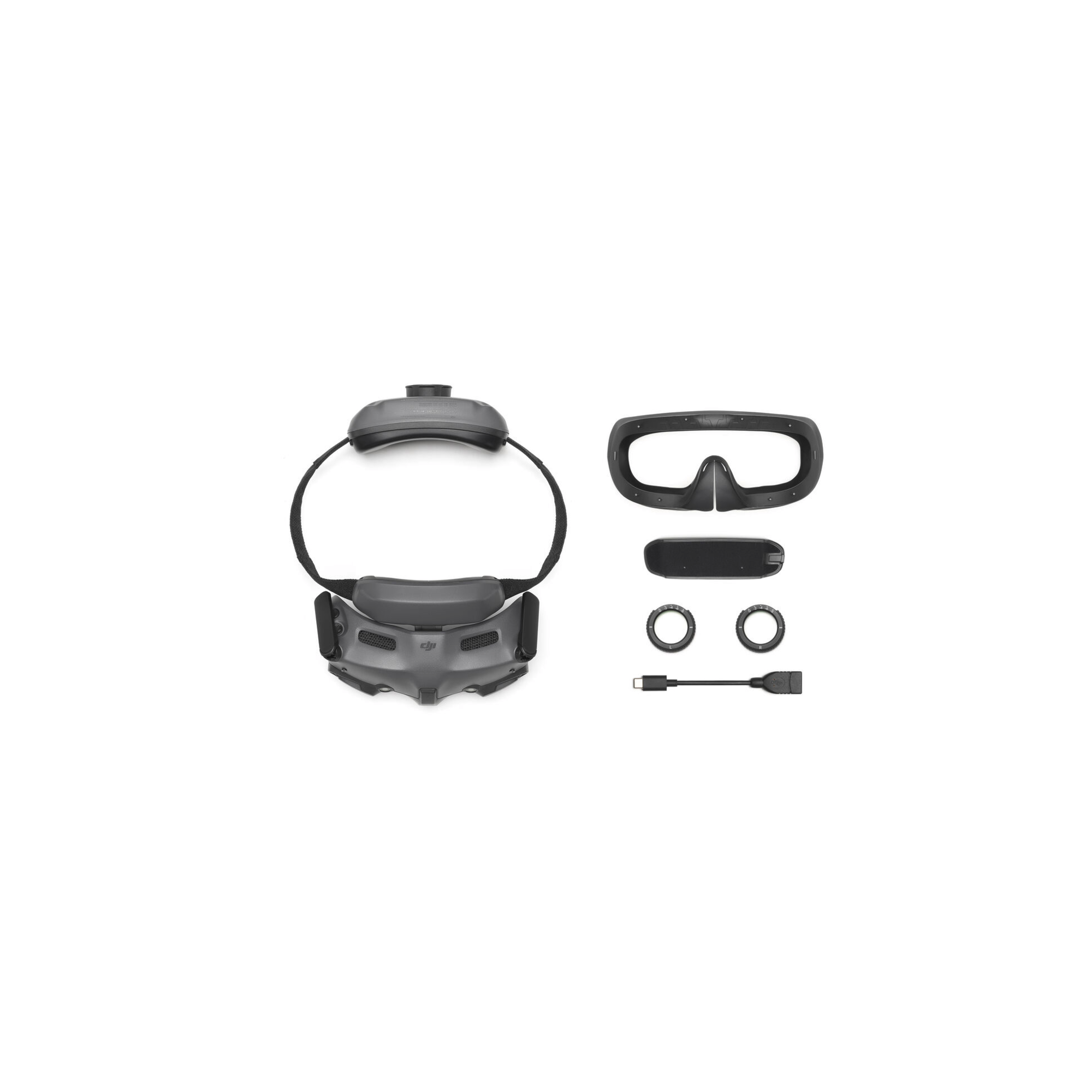

DJI Goggles 3 viewer with DJI O4 video transmission, AR cursor, max. operational autonomy. 3 hours, Real view in PiP - DJAV25

Put on the DJI Goggles 3 and virtually jump into the cockpit of an Air 3, Mini 4 Pro, Avata 2, or other compatible DJI drone.
Using O4 video transmission technology, you pilot the drone via a live first-person video feed from up to 8.1 miles away.
Built-in micro-OLED displays show the feed in 1080p resolution at 100 fps with ultra-low latency, giving you a smooth and realistic experience.
When you're not piloting your FPV drone, you can import panoramic and 3D video files via an optional SD card.

Real View PiP
You can use the Real View PiP feature to view a picture-in-picture image within the goggles.
This allows you to view your surroundings without having to take off the headset.

Adjustable Diopter
You don't need perfect vision to enjoy the Goggles 3.
Thanks to built-in diopter adjustment, those who are nearsighted or farsighted can dial in a clear image.
The diopter can be adjusted from -6.0 to +2.0 D.

One-Tap Defogging
Compensate for high-humidity conditions and sudden changes in temperature with one-tap defogging.
Using this feature will defog the Goggles 3's micro-OLED lenses, letting you continue to enjoy a clear 1080p feed from your drone.

Live Feed Monitoring
Using a Wi-Fi-enabled smartphone or tablet with the DJI Fly app installed, a copilot can monitor the drone's feed as you fly.

Viewer
Resolution (single screen): 1920×1080
Refresh rate: Up to 100 Hz
Interpupillary distance range: 56-72mm
Diopter adjustment range: -6.0 D to +2.0 D
FOV (single screen): 44°
Video recording format: MOV
Supports audio and video playback formats: MP4, MOV (video encoding formats: H.264, audio formats: AAC, PCM)
Panoramic Video: 2D spherical panoramic video.
3D video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU).
Maximum video specifications 4K/60fps
Real view FOV: 44°
Operating temperature: -10°C to 40°C
Input Power: Built-in battery
Supported SD cards: microSD (up to 512GB)
Recommended microSD cards:
- Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
- Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
- Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
- Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
- Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
- Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
- Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
- Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
Dimensions (L×W×H):
- With antennas folded: 170×109×112 mm (L×W×H)
- With antennas deployed: 205×109×112 mm (L×W×H)
Screen Size (Single Screen): 0.49 inch
Weight: Approx. 470 g (battery included)

Video transmission
Video Transmission: When used with different aircraft, the headset will automatically select the corresponding firmware to match the aircraft''s transmission specifications.
with DJI Avata 2: DJI O4
Operating Frequency:
- 2.4000-2.4835 GHz
- 5.150-5.250 GHz
- 5.725-5.850 GHz
Some countries and regions prohibit the use of the 5.1 GHz or 5.8 GHz frequency bands, or both. In some countries and regions, the 5.1 GHz frequency band is permitted for indoor use only. Be sure to check and comply with local regulations before each flight.
Transmitter Power (EIRP):
° 2.4GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1GHz:
< 23 dBm (CE)
5.8GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Latency: with DJI Avata 2:
Video transmission quality at 1080p/100fps: minimum latency of 24 ms
Video transmission quality at 1080p/60fps: latency starting from 40 ms
(Data was measured in an outdoor environment, without interference. Actual data varies depending on aircraft models.)
Maximum Transmission Distance: When used with DJI Avata 2, DJI Goggles 3 can reach the following maximum video transmission distance: 13 km (FCC), 10km (CE/SRRC/MIC)
Maximum video bit rate: 60 Mb/s (Data captured in an external interference-free environment. Actual data varies depending on the operating environment.)

Wi-Fi
Protocol: 802.11 a/b/g/n/ac
Operating Frequency:
2.4000-2.4835GHz
5.170-5.250 GHz
5.725-5.850 GHz
Transmitter Power (EIRP):
° 2.4GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.1GHz:
< 20 dBm (FCC/CE/MIC)
5.8GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)

Bluetooth
Protocol: Bluetooth 5.0
Operating frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): < 10 dBm

GFSK
Operating frequency: 2.4000-2.4835 GHz
Transmitter Power (EIRP):
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

Battery
Dimensions: Folded: 121×65×52.5 mm (L×W×H)
Battery: 3000mAh
Voltage: 5.6 - 8.4V
Category: Li-ion
Chemical system: LiNiMnCoO2
Energy: 21.6 Wh
Charging temperature: Between 0°C and 50°C
Charging power (max.): 20W (charging when turned off)
Operating duration: approximately 3 hours
