DJI O4 Air Unit

Name: DJI O4 Air Unit
Brand: Dji
SKU: DJI O4 Air Unit
Price: 214815 NGN
Availability: OutOfStock

Dji

EAN: 6941565997395

1/2" CMOS DIY Drone Camera with 117.6° FOV - DJIO4L

go to the technical sheet

₦ 214,815.00

₦ 199,828.15 VAT excl.

Available in 19 days

: Download

Not sure if this is the right product for you? Talk to a consultant

DJI O4 Air Unit, 1/2" CMOS with 117.6° FOV, Record 4K60 Footage, Stream 1080p100 Video - CP.FP.00000229.01

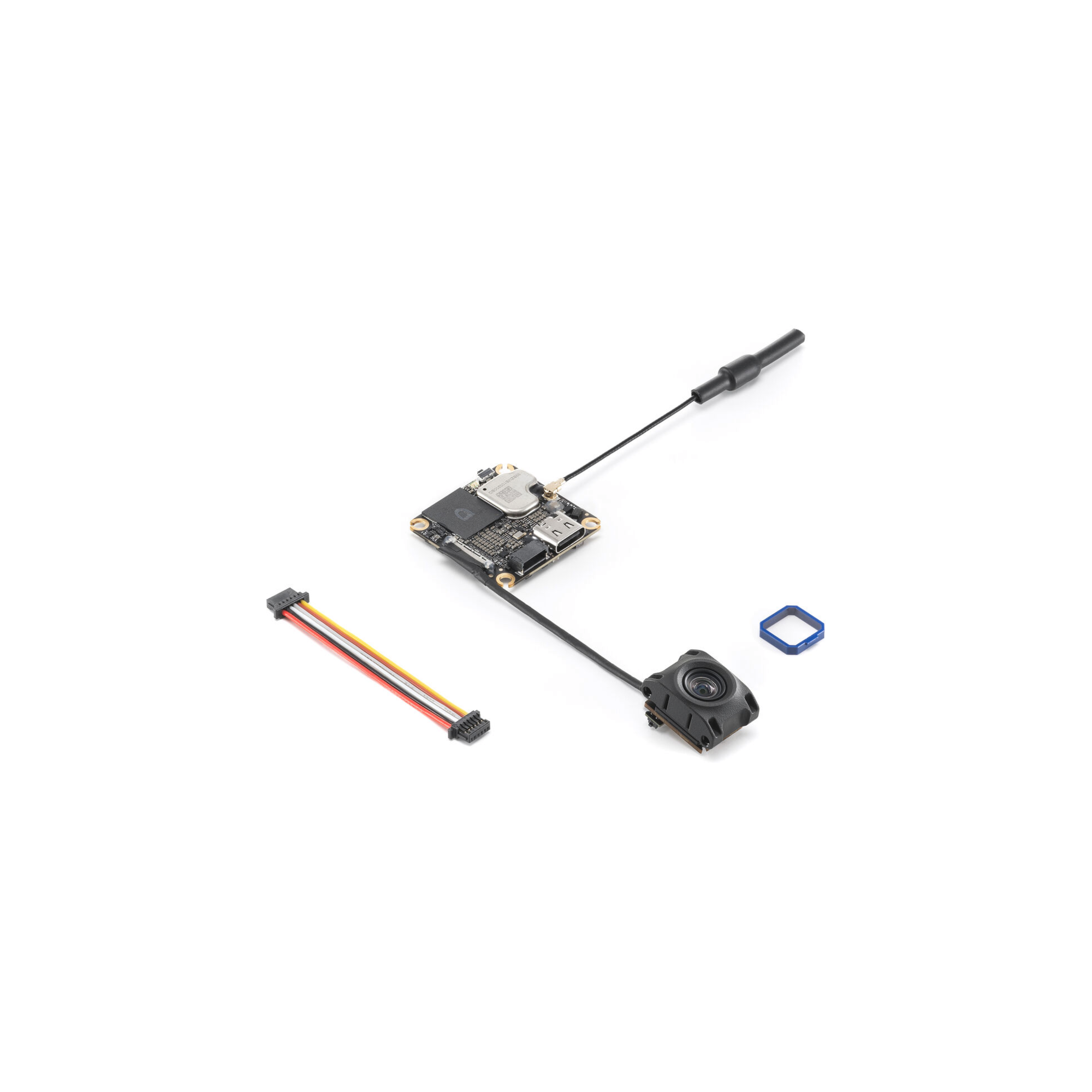

This standard version of the O4 Air Unit includes a camera module and single antenna, fitting onto drone frames as small as 2".
Compatible with various DJI Goggles, you can experience what the drone sees thanks to DJI's O4 video transmission system, which can transmit thrilling real-time 1080p footage at a smooth 100 fps from up to 6.2 miles away. While flying, the 1/2" CMOS sensor can record 117.6° wide-angle footage at up to 4K60 resolution, captured on the module's built-in 23GB of memory.

Device Compatibility
DJI's O4 Air Unit is designed to work with the DJI Goggles Integra, Goggles 2, Goggles 3, Goggles N3, and DJI's FPV Remote Controller 3.

Stabilization Modes
RockSteady 3.0+ mode offers electronic image stabilization of footage at high speeds during video capture, while Gyroflow software (not included) lets you smooth footage offline post-flight.

OSD Customization
Supporting both Canvas mode and Betaflight, you may customize the OSD real-time data display in your goggles for clearer at-a-glance flight data.

Download

Download (0)

General
Camera:
Image Sensor: 1/2" CMOS
FOV: 117.6°
Equivalent Focal Length: 14mm
Aperture: f/2.8
Minimum Focus Distance: 2'' / 0.6 m
ISO Range (Auto): 100 to 6400
ISO Range (Manual): 100 to 12,800
Video Resolution (4K 4:3): 3840 x 2880 at 30, 50, and 60 fps
Video Resolution (4K 16:9): 3840 x 2160 at 30, 50, and 60 fps
Video Resolution (1080p 4:3): 1440 x 1080 at 30, 50, 60, 100, 120 fps
Video Resolution (1080p 16:9): 1920 x 1080 at 30, 50, 60, 100, 120 fps
Video Format: MP4
Video Bit Rate (Max): 100 Mb/s
Storage Capacity: 23 GB

Wireless
Wireless: 5.8 GHz Radio/RF
Mobile App Compatible: No
Type of Transmitter:
Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85
Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE)
Transmitter Power (EIRP): 5.8 GHz: <30 dBm (FCC), <14 dBm (CE), and <30 dBm (SRRC)
Transmission Range: With DJI Goggles 3/N3: Up to 6.2 Miles / 10 km (FCC), Up to 3.7 Miles / 6 km (CE/SRRC)
Live View Quality: 1080p at 30, 50, 60, or 100 fps
Communication Bandwidth: 60 MHz (Max)
Antenna: 1T1R
Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels)
Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels)
Channels (FCC/SRRC/CE, 60/40 MHz): Channel 1 at 5794.5 MHz
Channels (FCC/SRRC/CE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH
Latency:
- With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 20 ms
- With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 24 ms
- With DJI Goggles 2 or Integra and 1080p/100: Down to 35 ms

Power
Power Source: Proprietary Interface
DC Input Power: 3.7 to 13.2 VDC

Physical
Color: Black
Operating Conditions: 14 to 104°F / -10 to 40°C
Cable Length:
- 2" / 50 mm (Coaxial)
- 2" / 50 mm (3-in-1)
Dimensions:
- 1.2 x 1.2 x 0.2" / 30 x 30 x 6 mm (Transmission Module)
- 0.6 x 0.53 x 0.49" / 16.5 x 13.44 x 12.36 mm (Camera Module)
- 3.1" / 80 mm (Antenna)
Weight:
- 0.2 oz / 5.1 g (Without Camera Module)
- 0.2 oz / 5.8 g (With Camera Module)
- 0.03 oz / 0.75 g (Antenna)
