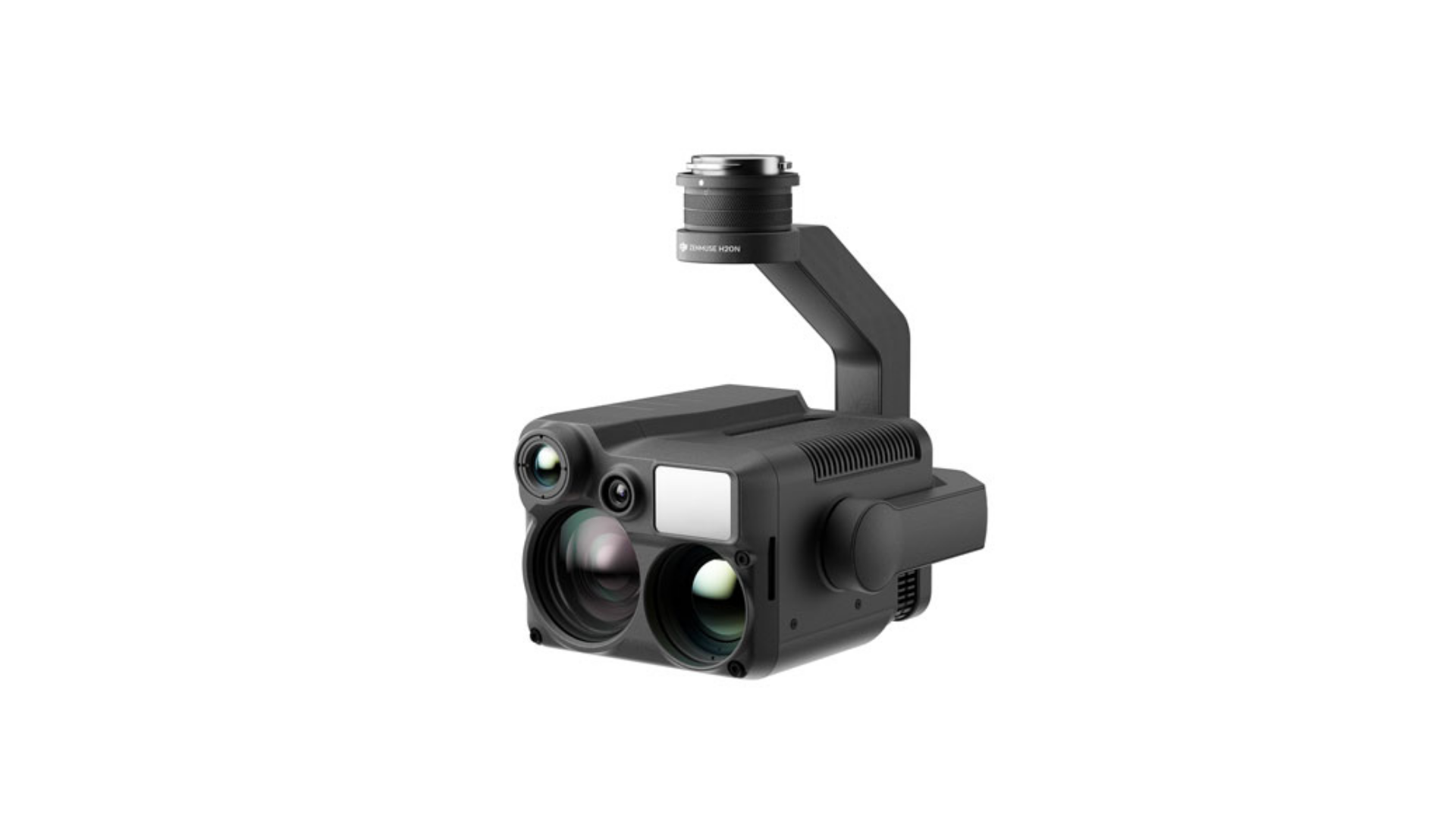

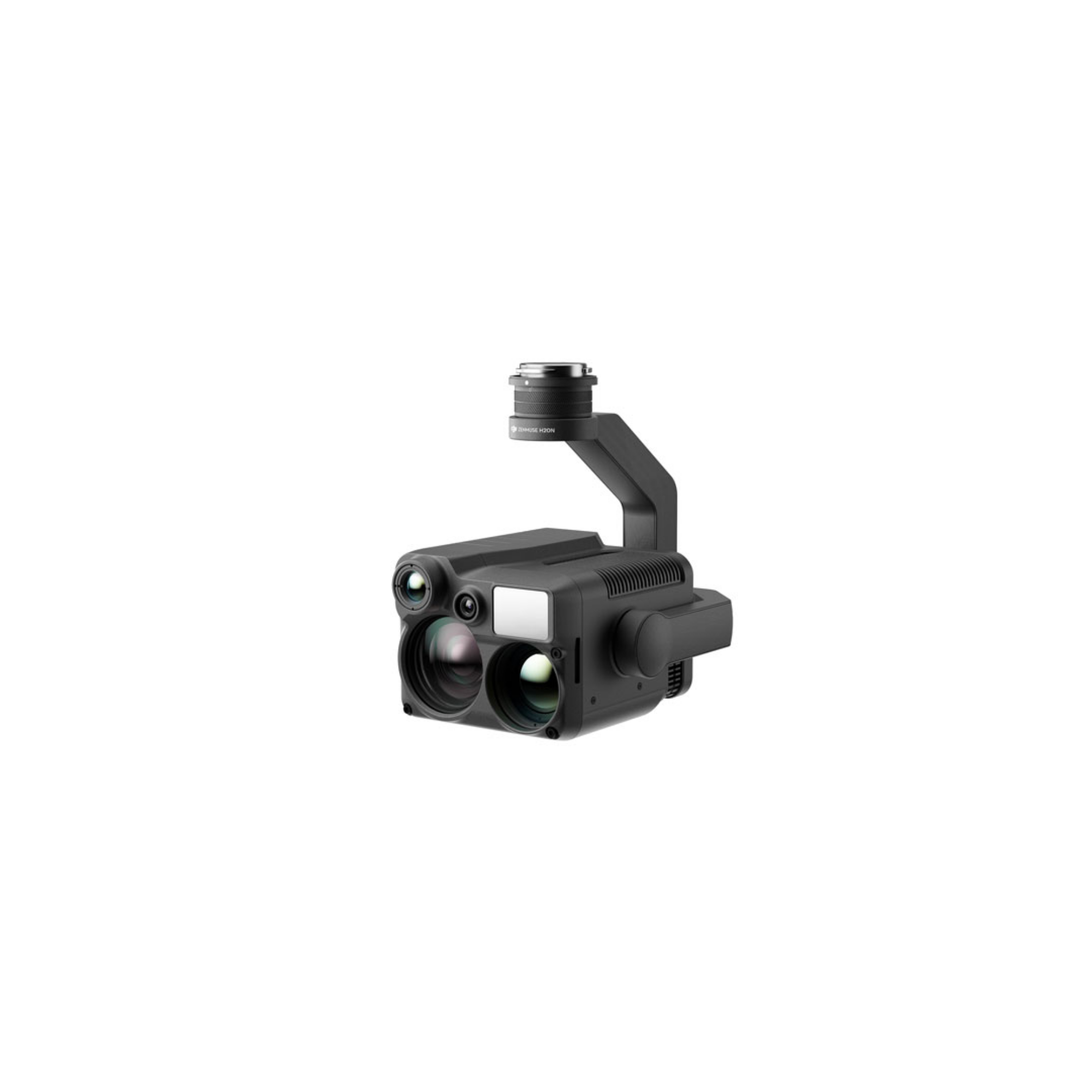

Zenmuse H20N

DJI Camera with dual thermal imaging camera, 2x(53mm) and 8x(196mm) zoom, 2MP starlight sensor - DJZH3N

The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras.
Pairing this with dual-zoom thermal cameras and a laser rangefinder gives you a versatile hybrid payload that's up to the task.

° Infrared zoom
Double thermal imaging camera
Resolution: 640×512
2x zoom (equivalent focal length: 53 mm)
8x zoom (equivalent focal length: 196 mm)

- Wide Camera night vision
- Starlight sensor: 2MP
- Stronger performance in low light conditions
- Camera with zoom for night vision
- Starlight sensor: 4MP
- 20× optical zoom, 128× maximum zoom
- Details in low light conditions

° Precise distance data
Laser rangefinder
Range: 3m to 1200m
Accuracy: ±(0.2m+D×0.15%)
Thermal and star vision to elevate your operations
Seeing through the night
The zoom and wide-angle cameras are equipped with starlight sensors tailor-made for low-light environments.
Infrared zoom
Two thermal cameras provide 2× and 8× zoom respectively, together allowing up to 32× zoom.
Find hot spots and closely inspect details after zooming in.
Synchronized split-screen zoom
H20N supports synchronized zoom between thermal and starlight night vision cameras.
Users can scale both images at the same time. This doubles the efficiency and makes it easier to compare details side by side.

PinPoint
Intelligent tracking
High resolution grid photo
Panorama with a touch

° Thermal characteristics
Color palettes
Adjust the colors applied to thermal data based on mission requirements.
Isotherms
View a specific range of temperatures to highlight your goals.
Temp. Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed preset alarm values.
Earnings method
Adjust gain modes to change the range of temperatures captured: High Gain mode covers a smaller temperature range but is more sensitive to temperature differences, Low Gain mode covers a wider temperature range.

° R-JPEG images
Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information.
By importing these images into the DJI Thermal Analysis Tool, you can measure temperature and adjust parameters such as emissivity and reflected temperature.
