4060-OC-C-B10

DPA 4060 CORE Normal-Sensitivity Omni Lavalier Microphone with TA4F Adapter for Shure Transmitters (Black)

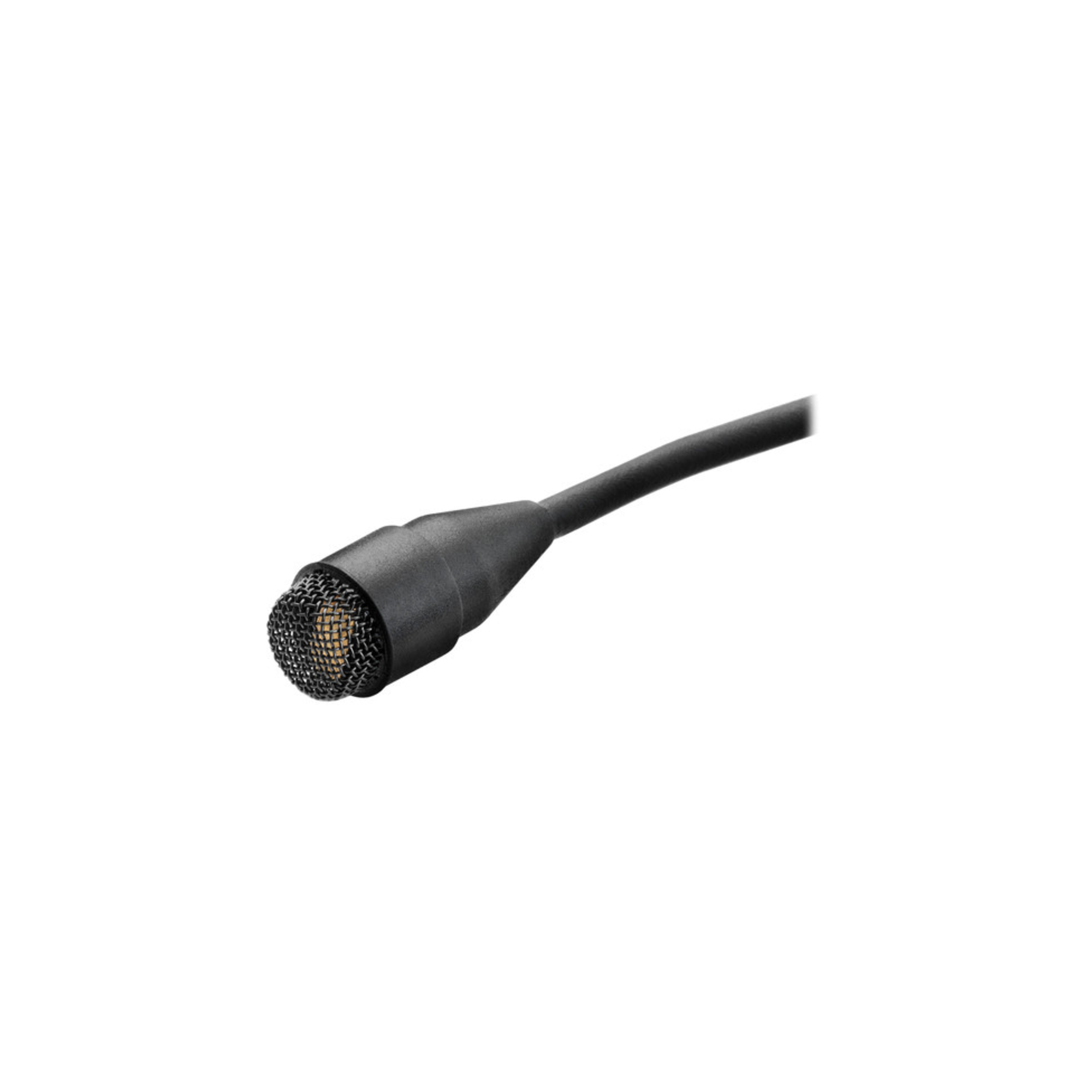

The black DPA 4060 CORE with TA4F Adapter is a miniature, moisture-resistant lavalier microphone designed for use with wireless systems for broadcast, performance, and theatrical applications.
The electret-condenser capsule delivers crisp, clear, and intelligible speech, while the rugged yet unobtrusive design is well suited to the demands of professional live stage work and presentations.
This version of the 4060 uses DPA's CORE technology to deliver a 6 dB increase in dynamic range and a 6 dB reduction in noise over the 4060 Legacy model. Included are two interchangeable capsule protection grids that alter the sonic character of the mic.
The High-Boost Grid creates a peak at 12 kHz, helpful for chest placement, while the Soft-Boost Grid offers a subtle boost between 8 to 20 kHz, lightly enhancing signal presence to ensure clarity.

With an SPL rating of 134 dB, the microphone is more than capable of handling most standard speakers, vocalists, and presenters.
The mic can also be used very effectively to capture instruments—making it a flexible tool for houses-of-worship and live event productions.
The 4060 CORE is powered by 5 to 10V plug-in power from a wireless transmitter and features a modular design using a Microdot output connector.
This version includes a TA4F adapter compatible with Shure wireless microphone transmitters.

Modular System Featuring Microdot Connector with TA4F Adapter
- Shure: Works with Shure transmitters equipped with a TA4M connector, including the AD1, ADX1, AXT100TA4M, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, and ULXD1. Also supports Line 6 and TOA transmitters.
- The modular design allows you to adapt the 4060's Microdot connector to a wide variety of transmitters simply by purchasing the compatible adapter—saving you the expense of buying another microphone.

Optional XLR Adapter for Wired Applications
The DAD6001 Microdot to 3-pin XLR Adapter (available separately) allows you to power the 4060 from 12 or 48V phantom power for wired applications.

A Reliable Broadcast-Quality Lavalier
The 4060 CORE features a 5.4mm capsule that enables the microphone to be inconspicuous and easily disguised in clothing or costumes.
The vertical diaphragm design offers a clear and natural sound optimized for the human voice.

Two Boost Grids Included to Tailor High Frequencies
The pre-fitted Soft-Boost Grid gives a 3 dB soft boost at 8 to 20 kHz range.
It should be used when the microphone is mounted on the performer's head as well as in most other applications where you need a natural-sounding mic.
Alternatively, the High-Boost Grid introduces a 10 dB boost around 12 kHz for applications where chest placement is preferred.
Both grids are made of tough and scratch-resistant anodized stainless steel, allowing them to be detached and cleaned.

Normal Headroom for Standard Speech
The 4060 CORE features a sensitive capsule designed for standard speech and vocal applications at levels up to 134 dB SPL before clipping.

Omnidirectional Polar Pattern
The forgiving omnidirectional pick-up pattern captures sound from all around the mic and provides a consistent frequency response, even for off-axis sound.
This helps to supply clear, intelligible speech and vocals, even when the talent turns away from the microphone.

Tough, Moisture-Resistant Construction
Engineered with a double-vent protection system, the 4060 is certified IP58 for dust and moisture resistance.
The rugged 5.9' cable is built with Kevlar strain relief to survive the constant twists, bends, and pulls that are part of everyday use in harsh environments.
