AT-4047SV

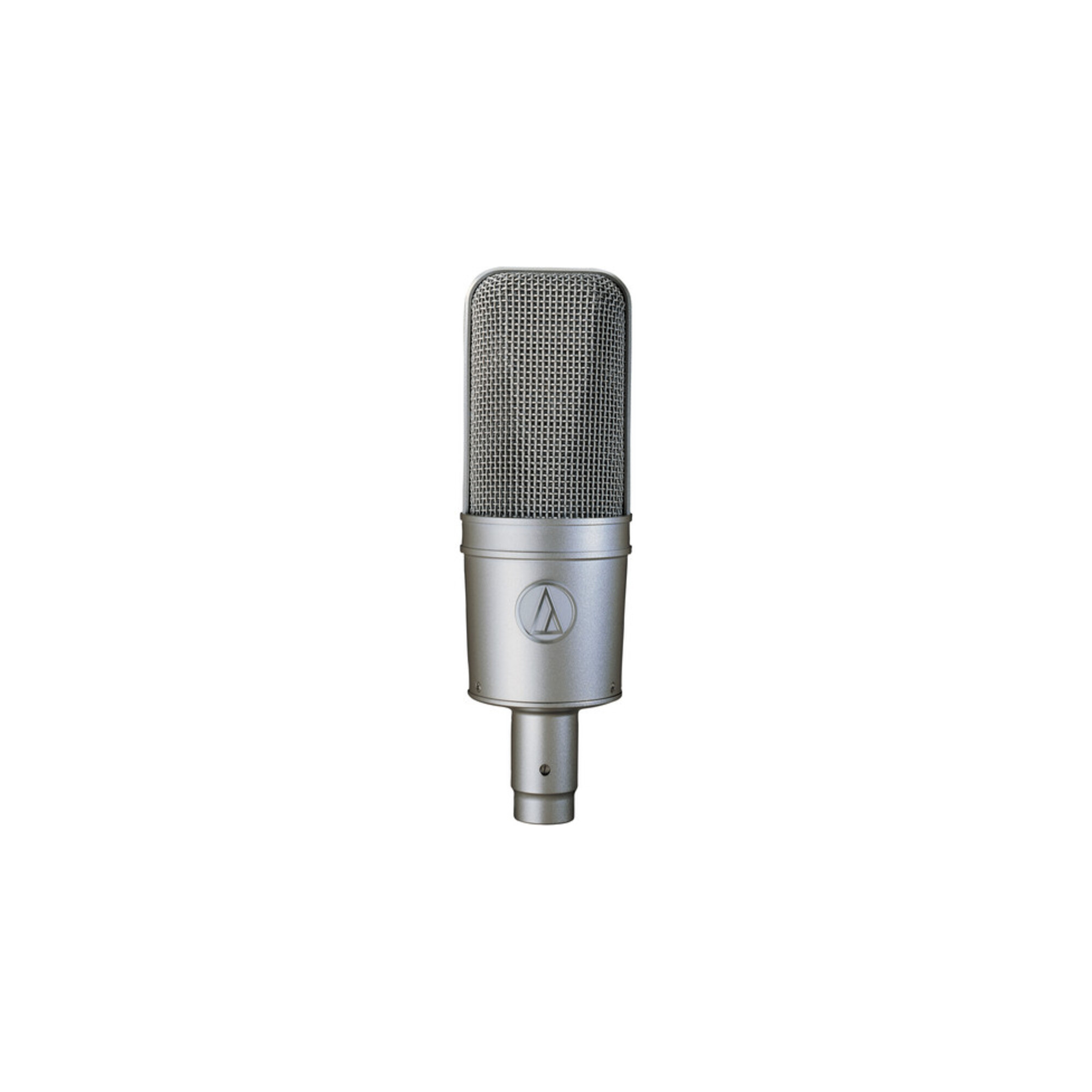

Tuned to deliver a tonal character akin to classic FET mics, the silver Audio-Technica AT4047/SV is a large-diaphragm cardioid condenser microphone designed for warm, low-noise reproduction of vocals and various instruments, making it a versatile tool in project studios and home setups as well as for commercial facilities. The dual-diaphragm capsule enables consistent polar response throughout the mic's frequency range while the transformer-coupled output further contributes to the vintage-style sound. Additionally, the precision-machined acoustic baffle yields increased stability and sensitivity.

The housing assembly's symmetrical construction lessens undesired reflections around the capsule and a switchable 80 Hz high-pass filter offers at-the-source reduction of rumble and low-frequency buildup. Thanks to the custom shockmount, the AT4047/SV is further isolated from vibration and stand-borne noise. Since it can take extremely high SPLs without distorting—up to 159 dB with the -10 dB pad engaged—the mic is a great choice for loud instruments in addition to nuanced, intimate performances.

Warm, Vintage-Style Sound

The mic's rich, warm sound takes you back to the classic FET studio microphones, but there's nothing remotely old-fashioned about the technology behind that vintage sound.

Dual-Diaphragm Condenser Capsule

The AT4047/SV studio condenser's dual large-diaphragm capsule design maintains precise polar pattern definition across the full frequency range.

Versatile Applications

With a wide dynamic range, incredibly low self-noise, and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups, and voice-overs.

Switchable Settings

The 80 Hz high-pass filter easily switches between flat frequency response and a low-cut filter that diminishes ambient noise and popping with closely miked vocals. The -10 dB pad allows distortion-free pickup of blaring instruments such as drums and guitar amps.

Features at a Glance

-Cardioid polar pattern for directional focus and rejection of off-axis sounds
-Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early FET studio microphone designs
-Exceptionally low self-noise, wide dynamic range, and high SPL capability (up to 159 dB with pad engaged)
-Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
-Precision-machined, nickel-plated brass acoustic element baffle provides enhanced element stability and optimal sensitivity
-Vintage silver-matte finish on microphone and shockmount
-Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
-State-of-the-art, surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
-Switchable 80 Hz high-pass filter and -10 dB pad
-Custom shockmount provides superior isolation
-XLR 3-pin output connector
-48V phantom powered



In the Box
-Audio-Technica AT4047/SV Large-Diaphragm Cardioid Condenser Microphone (Silver)
-Audio-Technica AT8449a/SV Microphone Shockmount (Silver)
-Microphone Dust Cover
-Protective Carrying Case
-Limited 5-Year Warranty



Microphone
Primary Applications: Live Sound, Studio Recording, Broadcast
Form Factor: Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources: Vocals, Instrument
Sound Field: Mono
Operating Principle: Pressure Gradient
Capsule: Condenser
Polar Pattern: Cardioid
Orientation: Side Address
Circuitry: Solid-State
Pad: -10 dB
High-Pass Filter: 80 Hz, 12 dB/Octave
Tone Adjustment: None
Gain Adjustment: None
Indicators: None
On-Board Controls: High-Pass Filter, Pad
Windscreen: None
Performance
Frequency Range: 20 Hz to 18 kHz
Maximum SPL
149 dB SPL (1 kHz, 1% THD)
159 dB SPL (1 kHz, 1% THD, with Pad)
Impedance: 250 Ohms
Sensitivity: -35 dBV/Pa (Open Circuit Voltage)
Dynamic Range: 140 dB (1 kHz, at Max SPL)
Signal-to-Noise Ratio: 85 dB A-Weighted
Equivalent Noise Level: 9 dB SPL A-Weighted
Connectivity
Output Connectors (Analog): 1 x XLR 3-Pin Male (on Mic)
Headphone Connector: None
Power
Bus Power: None
Operating Voltage: 48 V (Phantom Power)
Operating Current Consumption: 3 mA
Physical
Color: Silver
Mounting: Shockmount (Included)
Included Case: Hard Case, Mic Sock
Included Filters: None
Dimensions: 2.1 x L: 6.69" / diameter: 5.3 x L: 16.99 cm
Weight: 14.5 oz / 411 g
Packaging Info
Package Weight: 3.32 lb
Box Dimensions: 15.95 x 13 x 8.55"
