Shure

Omnidirectional Headset Microphone IP57 (20 - 20.000 Hz) 1,67 m
go to the technical sheet
€ 508,64

€ 473,15 VAT excl.

Available 2 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

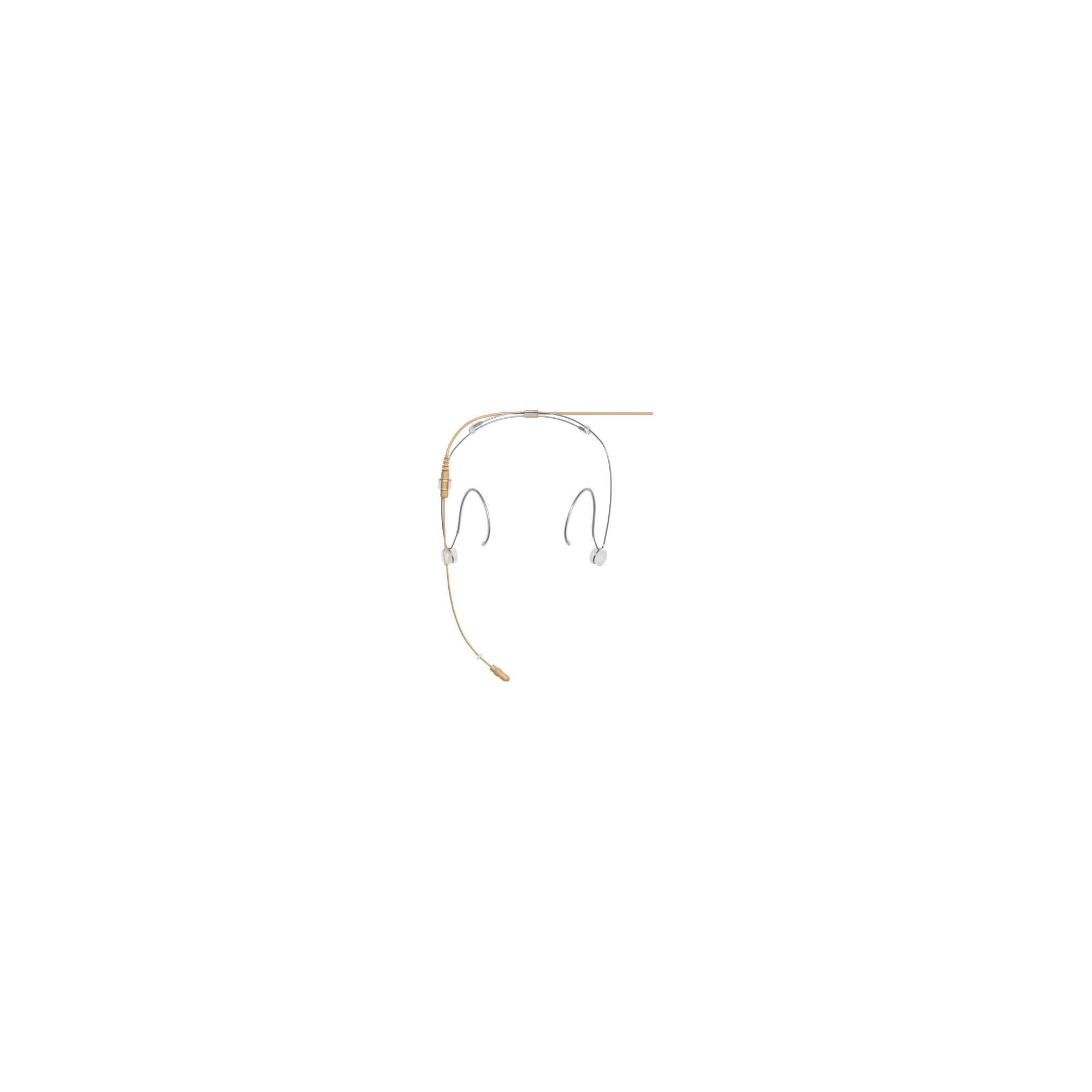

The tan Shure DH5 DuraPlex is an omnidirectional miniature headset microphone equipped with a TA4F connector for compatible Shure wireless bodypack transmitters.
Built for the rigors of professional use, this durable mic offers a neutral, full-range sound ideal for capturing speech, dialog, and singing in broadcast, presentation, and theater applications.

The DH5 DuraPlex features a 5mm miniature capsule on a silicone boom pivot system that can be discreetly placed on either the left or right ear.
The mic offers high gain before feedback, making it well suited for speech and dialog at events with loud sound reinforcement. To compensate for any potential loss of high end when positioning the mic, a presence cap is included that boosts the 10 kHz range about 3 to 4 dB for added clarity and intelligibility.

Designed to stand up to adverse conditions, the mic is equipped with a long-lasting, fully paintable, 1.6mm Shure Plex cable.
The dual-redundant ground in the cable serves as secondary shield, giving it unprecedented durability and immunity to memory effect and kinks.

Features:

Neutral, full-range sound quality for broadcast, speech, theater, and performance applications

Silicone boom pivot system can be discreetly placed on either the left or right ear

20 Hz to 20 kHz frequency response

132 dB maximum SPL

5mm omnidirectional miniature design

Advanced 1.6 mm Shure Plex cable with secondary shield for longevity

Cable is immune to memory effect and kinks

Cable is fully paintable with typical theater paints, pens, and polishes

Presence cap included for additional vocal clarity and presence (3 to 4 dB boost near 10 kHz)

Includes a regular foam windscreen and a snap-fit windscreen that holds tightly in place

Includes carrying case

Tan, with TA4F connector

Microphone
Form Factor: Headworn
Sound Field: Mono
Capsule: MEMS
Polar Pattern: Omnidirectional
Windscreen: Foam (Included)

Performance
Frequency Range: 20 Hz to 20 kHz
Maximum SPL: 132 dB SPL (1 kHz, 1% THD)
Sensitivity: -42.5 dBV at 1 kHz
Dynamic Range: 101 dB
Signal-to-Noise Ratio: 63 dB
Equivalent Noise Level: 31 dB SPL A-Weighted

Connectivity
Output Connectors:
1 x TA4/Mini XLR 4-Pin Female (Lockable/Waterproof)
Cable Length: 66" / 1.7 m
Cable Diameter: 0.1" / 1.6 mm

Power
Operating Voltage: 5 V
Operating Current Consumption: 220 µA

Physical
Color: Tan
IP Rating: IP57
Construction Material: ABS
Dimensions:
W: 0.2 x L: 0.6" / W: 5.2 x L: 14.5 mm (Capsule)
L: 5.4" / L: 13.6 cm (Boom)
Weight: 0.7 oz / 20 g

Packaging Info
Package Weight: 0.695 lb
Box Dimensions: 7.2 x 6.7 x 2.2"

Shure DH5 DuraPlex Omnidirectional Headset Microphone (Tan, TA4F)
Presence Cap
Single Tie Clip
Foam Windscreen
Snap-Fit Windscreen
TA4F Locking Collar
Case
