4017B

Name: 4017B
Brand: DPA
SKU: 4017B
Price: 3306180.13 NGN
Availability: OutOfStock

DPA

EAN: 5713055005412

Shotgun Microphone, Supercardioid, 20 Hz to 20 kHz (Overall Range),

go to the technical sheet

₦ 3,306,180.13

₦ 3,075,516.40 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 330,618.01

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

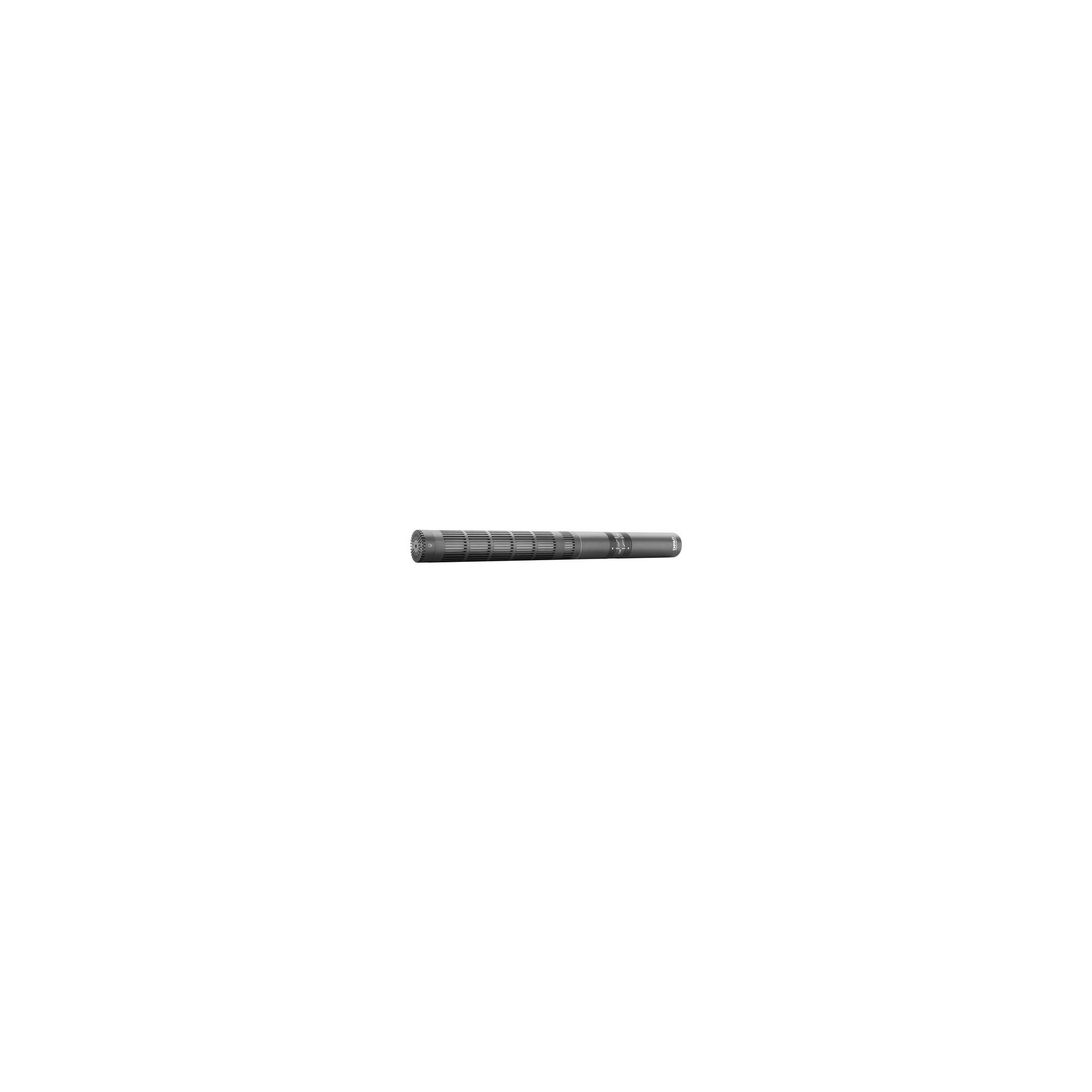

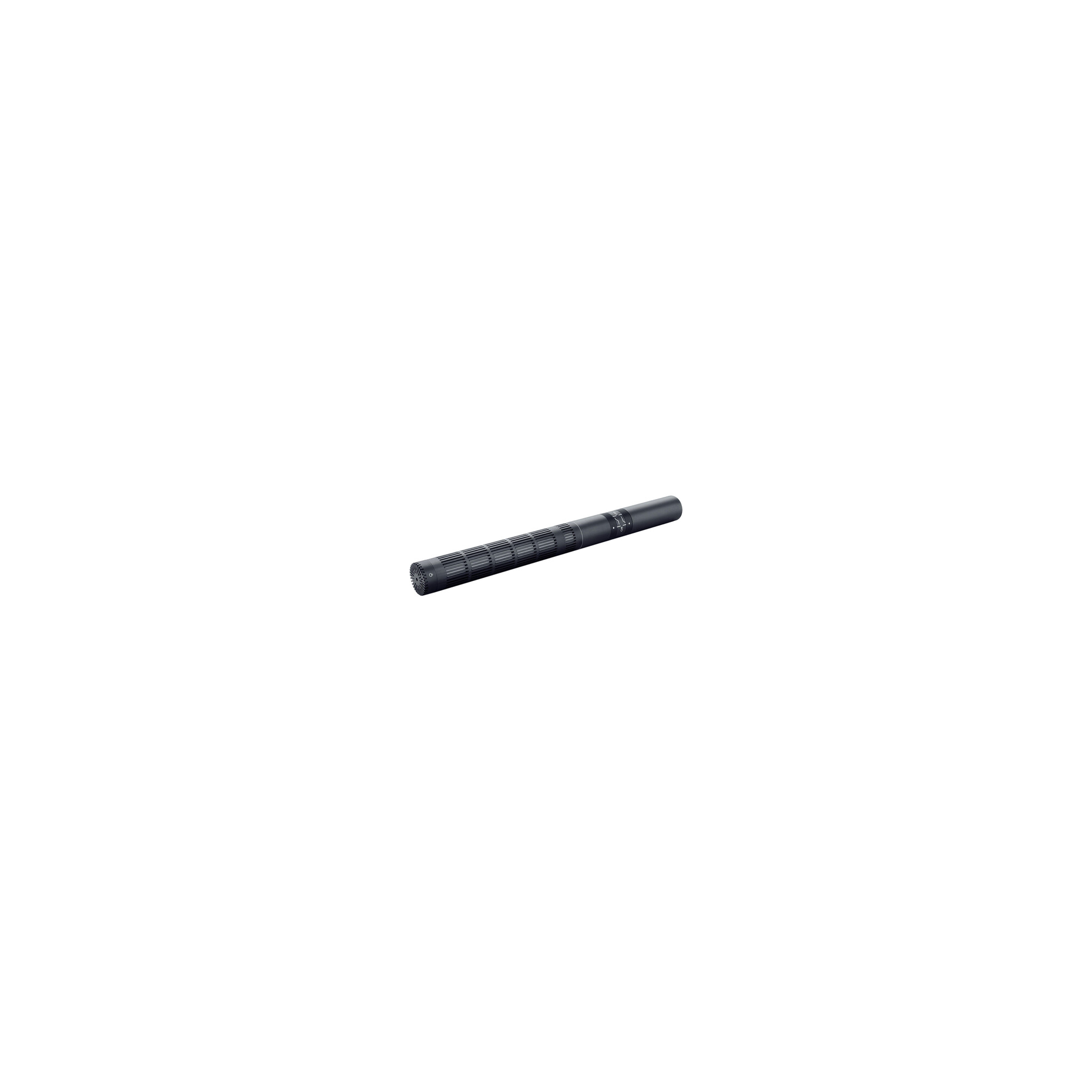

DPA Microphones 4017B Shotgun Microphone, Supercardioid, 20 Hz to 20 kHz (Overall Range), 70 Hz to 18 kHz ±2 dB (Efffective Range at 60 cm)

The 4017B Shotgun Microphone from DPA is a professional, versatile microphone designed for demanding sound capturing in film, video, sound reinforcement and even music recording.
The supercardioid, lobe-shaped polar pattern is coupled with excellent off-axis signal rejection for a focused pickup, enhanced range and minimal noise.
The condenser capsule uses a high voltage pre-polarized back plate, endowing the shotgun with high output as well as wide dynamics, extremely low noise and distortion specifications.

The 4017B's frequency response, dynamic range, and signal-to-noise ratio result in pristine, transparent signal reproduction.
Two onboard filters eliminate noise and artifacts with a 4dB shelf at 8kHz and a first-order bass roll-off below 120Hz.
The short, lightweight profile of the 4017B make it a suitable choice for both indoor and outdoor production with boompoles, handheld shock-mounts, etc.

Microphone
Polar Pattern: Supercardioid
Element Type: Electret Condenser
Sound Field: Mono
Diaphragm: 0.7" / 19 mm
Orientation: End Address
Controls: High Boost, Low Cut/HPF
Filter & EQ:
- Low-Cut Filter: 50 Hz, 18 dB/Octave / 120 Hz, 6 dB/Octave
- High Boost: +4 dB at 8 kHz
Circuitry: Solid-State

Performance
Frequency Response: 20 Hz to 20 kHz (Overall Range) | 70 Hz to 18 kHz ±2 dB (Efffective Range at 60 cm)
Maximum SPL: 138 dB
Sensitivity: 19 mV/Pa / -34 dBV/Pa
Dynamic Range: 124 dB
Equivalent Noise Level:
- 13 dB (A-Weighted/Typical)
- 15 dB (A-Weighted/Max)

Connectivity
Analog Output: 1x XLR 3-Pin Male

Power
Power Sources: Phantom Power
Operating Voltage: 48 V

Physical
Color: Black
Mounting Thread Size: 5/8"-27 Female
Dimensions: Ø: 0.75 x L: 8.35" / Ø: 19 x L: 212 mm
Weight: 2.4 oz / 68 g
