AT-4022

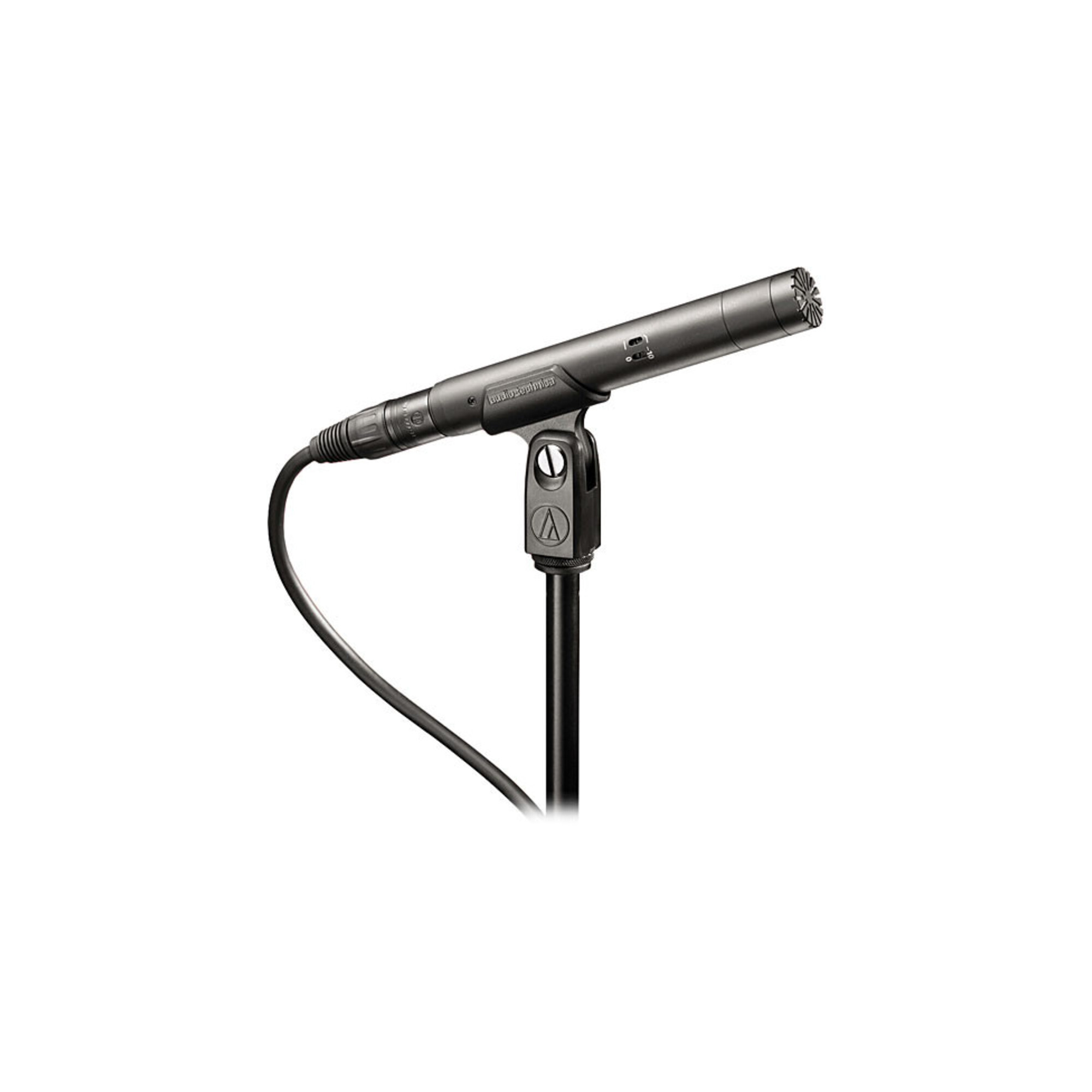

The AT4022 Omnidirectional Condenser Microphone from Audio-Technica features a low-profile design and a small-diaphragm condenser element. The microphone's sensitivity, frequency response, and SPL capabilities allow for use with speaker cabinets, vocals, percussion instruments, drums, and spot placement on guitars, and stringed instruments. The omnidirectional polar pattern provides a wide pickup area and preserves the integrity of the signal. An 80 Hz high-pass filter switch reduces low frequencies and associated noise, and a -10 dB Pad switch provides additional headroom and minimizes distortion when capturing transient (peaking) audio signals. The package includes microphone stand clamp, a windscreen, and a protective carrying case.

Omnidirectional Polar Pattern
The omnidirectional polar pattern provides a generous pickup area and preserves the integrity of the audio quality.
Switchable 80 Hz High Pass Filter
The 80 Hz high-pass filter switch minimizes hum, low frequency noise, and rumble.
-10 dB Pad Switch
A -10 dB Pad provides additional headroom for capturing peaking audio signals without distortion and noise.


In the Box
Audio-Technica AT4022 Omnidirectional Condenser Microphone
Audio-Technica AT8405a Snap-in Microphone Stand Clamp
Windscreen
Protective Carrying Case
Limited 1-Year Warranty



Microphone
Capsule: Condenser
Polar Pattern: Omnidirectional
Pad: -10 dB
High-Pass Filter: 80 Hz, 12 dB/Octave
Performance
Frequency Range: 20 Hz to 20 kHz
Maximum SPL
146 dB SPL
156 dB SPL
Impedance: 250 Ohms
Sensitivity: -34 dB
Dynamic Range: 133 dB
Signal-to-Noise Ratio: 81 dB
Equivalent Noise Level: 13 dB
THD: 1%
Connectivity
Output Connectors (Analog): 1 x XLR 3-Pin
Power
Operating Voltage: 48 V
Operating Current Consumption: 3.0 mA
Physical
Dimensions: 0.83 x L: 5.67" / diameter: 21 x L: 143 mm
Weight: 4.37 oz / 124 g
Packaging Info
Package Weight: 1.15 lb
Box Dimensions: 10.4 x 4.55 x 1.75"
