6061 CORE Omni Submini Mic, Loud SPL, White, MicroDot
go to the technical sheet
₦ 836,174.00

₦ 777,835.85 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

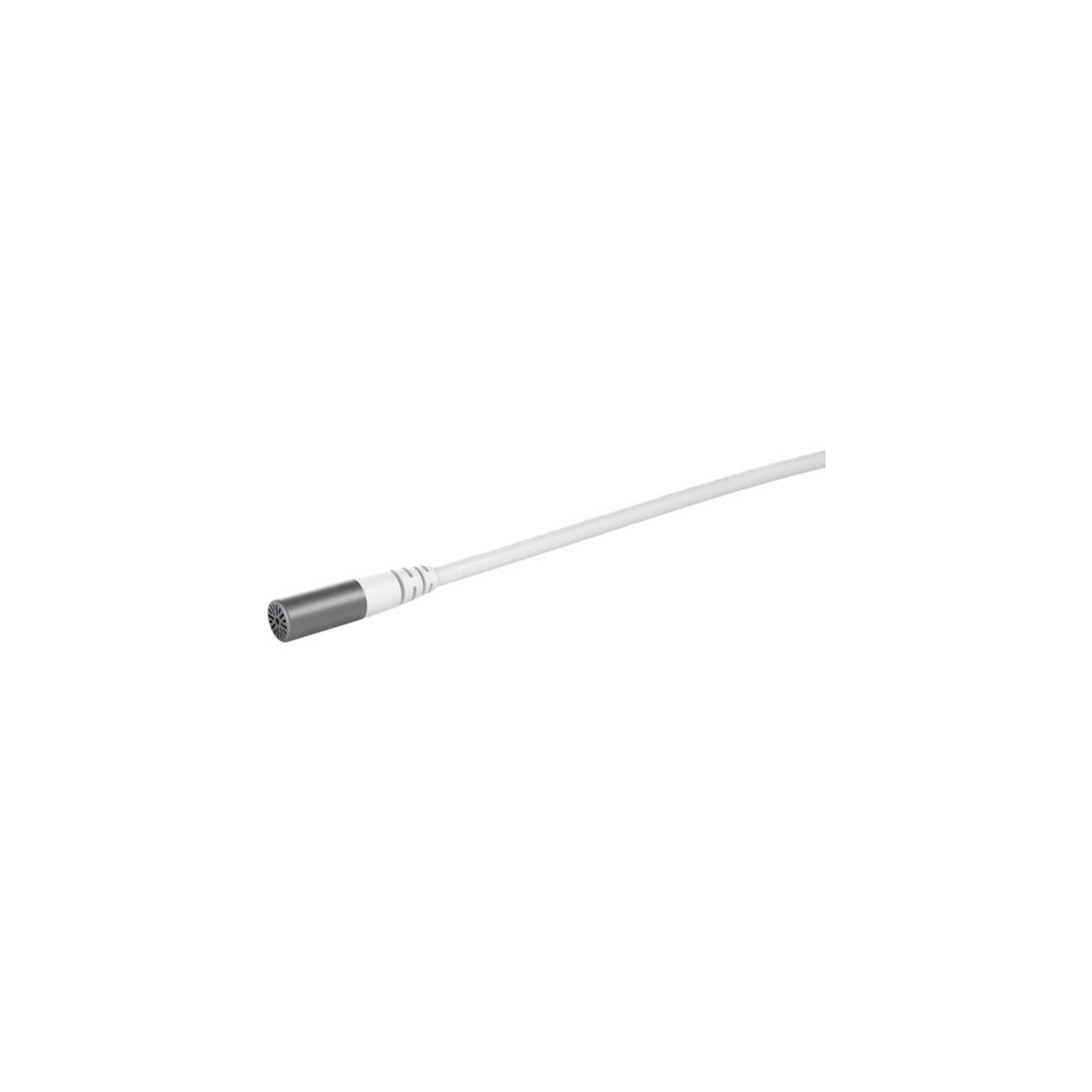

DPA 6061 CORE Omni Submini Mic, Loud SPL, White, MicroDot

The white DPA 6061 CORE is a subminiature, moisture-resistant lavalier microphone designed for use with wireless systems for broadcast, performance, and theatrical applications.
The low-sensitivity electret-condenser capsule can handle even very loud performers to deliver crisp, clear, and intelligible speech.
The mic's 3mm size is easy to hide in clothing or costumes, making it well suited to the demands of professional presentations, theater, and live stage work as well as TV, film, and video productions.
The 6061 shrinks DPA's CORE technology down to a 60% smaller size that still delivers extended dynamic range and extremely low self noise for outstanding sound quality.
An included capsule protection grid protects the mic element and supplies a subtle 4 dB soft boost between 8 to 20 kHz, lightly enhancing signal presence to ensure clarity.
The cap can be removed for cleaning and attaches to the mic with a firm click that can be felt and heard.

With an SPL rating of 144 dB, the microphone is more than capable of handling even very loud vocalists, presenters, and speakers.
The 6061 CORE is powered by 5 to 10V plug-in power from a wireless transmitter and features a modular design using a Microdot output connector and separately available adapters.

Polar Pattern: Omnidirectional
Frequency Response: 40 Hz to 20 kHz
Maximum SPL: 128 dB (1% THD) | 144 dB (10% THD)
Sensitivity: 6 mV/Pa (at 1 kHz)
Dynamic Range: 102 dB (A-Weighted)
Equivalent Noise Level: 26 dB (A-Weighted, 20 µPa, Typical)
Analog Output: 1x Microdot Male
Cable Length: 5.9'' / 1.8 m
Power Sources: Plug-In Power
Operating Voltage: 5 to 10 V
Color: White
Environmental Resistance: Dust/Water-Resistant to 3.28'' / 1 m (IP58)
Dimensions: Ø: 0.1 x L: 0.6" / Ø: 3.4 x L: 14.4 mm (Microphone)
Weight: 0.3 oz / 8 g (with Cable)

1x Microphones 6061 CORE Subminiature Low-Sensitivity Omni Lavalier Microphone (White)
1x Soft-Boost Protection Grid
