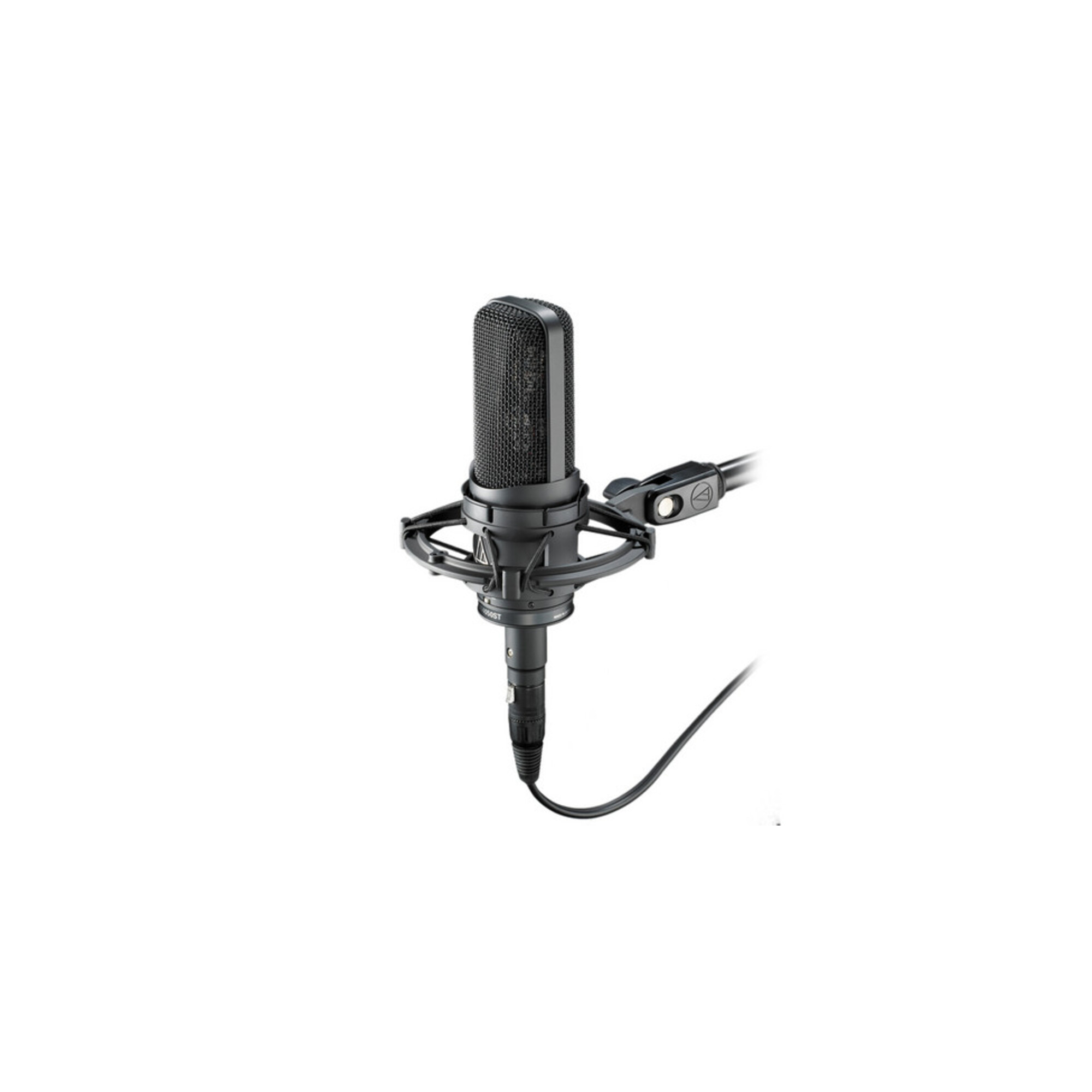

AT-4050ST

The AT4050ST from Audio-Technica is a studio-grade side-address stereo microphone that offers terrific flexibility for a variety of applications. The mic housing contains independent cardioid and figure-8 condenser elements, which allows the mic to maintain precise pattern definition across a full frequency range. It also allows you to choose between a left-right stereo output or discrete mid-side signal.

The diaphragms are vapor-deposited with 2-micron thick gold, and undergo a 5-step aging process to ensure years of optimal use. Internal transformerless circuitry helps to eliminate low-frequency distortion and provides excellent correlation of high-speed transients. The housing has a symmetrical design that provides an open acoustical environment to minimize internal reflections.

For additional flexibility, the mic has an 80Hz high-pass filter to reduce low-frequency rumble and hum, as well as a 10dB pad switch, which provides extra headroom when recording loud sound sources. The AT4050ST comes complete with a custom shock mount, an extra-long XLR cable, a dust cover, and a protective carrying case. The mic is also certified by the METAlliance.

-Independent cardioid and figure-8 condenser elements allow the mic to maintain precise pattern definition across a full frequency range
-Selectable left-right stereo output or discrete mid-side signal output
-Diaphragms are vapor-deposited with 2-micron thick gold, and undergo a 5-step aging process to ensure years of optimal use
-Internal transformerless circuitry helps to eliminate low-frequency distortion and provides excellent correlation of high-speed transients
-Symmetrical housing design provides an open acoustical environment to minimize internal reflections
-Switchable 80Hz high-pass filter reduces low-frequency rumble and hum
-10dB pad switch provides extra headroom when recording loud sound sources
-Includes a custom shock mount, an extra-long 8-conductor shielded XLR cable, a dust cover, and a protective carrying case
-Certified by the METAlliance


In the Box
-Audio-Technica AT4050ST Stereo Condenser Microphone
-XLR Cable
-Shock Mount
-Dust Cover
-Protective Case
-Limited Lifetime Warranty


Audio-Technica AT4050ST Specs
Transducer: Externally-Polarized (DC Bias) Condenser
Polar Pattern: Cardioid and Figure-8
Frequency Response: 20Hz - 18kHz
Dynamic Range (Typical):
Mid: 134dB (1kHz at Max SPL)
Side: 132dB (1kHz at Max SPL)
Signal-to-Noise Ratio:
Stereo 90°: 69dB (1kHz at 1Pa)
Stereo 127°: 78dB (1kHz at 1Pa)
Mid: 79dB (1kHz at 1Pa)
Side: 77dB (1kHz at 1 Pa)
Maximum Input Sound Level
Mid and Side: 149dB SPL (1kHz at 1% THD)
159dB SPL (With 10dB Pad, Nominal)
Power Requirements: 48V Phantom Power, 6.4mA
Output Impedance: 50 Ohms
Output Connectors: 5-Pin XLR Male
Pad: Yes, 10dB
Low Frequency Roll-Off: Yes, 80Hz @ 12dB/Oct
Dimensions: 7.6 x 2.1" (193 x 53mm)
Weight: 18.2 oz (517g)
Packaging Info
Package Weight: 4.195 lb
Box Dimensions: 11.5 x 9.8 x 4.3"
