4006A

4006A

DPA

5713055003524

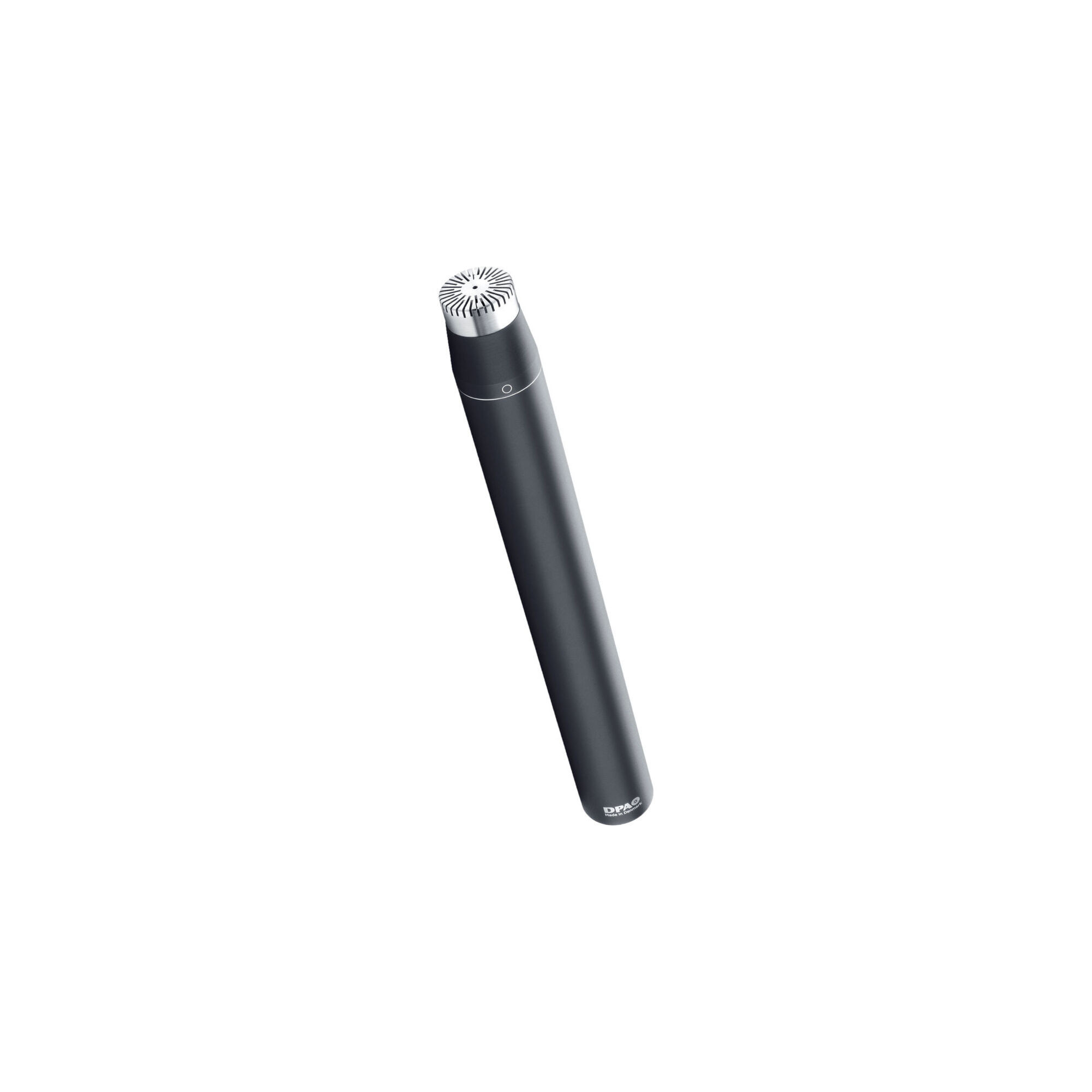

DPA Microphones 4006A Omnidirectional Microphone
go to the technical sheet
  • -2.5%
Save 2.5%
€ 2.441,73

€ 2.271,38 VAT excl.

€ 2.504,34
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
he 4006A Omnidirectional Microphone from DPA is designed for capturing vocals, close miking instruments, amplifier cabinets, and similar sources in live sound reinforcement and crucial recording applications. It features an omnidirectional condenser element for a linear high-frequency response and detail. Additionally, the microphone allows you to maintain a linear tonal response when closely positioning it near speaker cabinets, percussion, and other instruments. Separately sold acoustic modification accessories, including a nose cone and interchangeable protection grids, allow the 4006A to acoustically transform without changing the phase and sonic character of the microphone. An output stage provides faithful recreations of the original source material and an included microphone clip and windscreen.
Maximum linearity, particularly at the high-end
Clean, neutral sonic character
Omnidirectional polar pattern
Can be used for A-B stereo pairs in symphonic concert hall recordings

Microphone
Operating Principle Pressure Operated
Capsule Condenser
Diaphragm 0.05'' / 16 mm
Pad -20 dB
Performance
Frequency Range 10 Hz to 20 kHz
Maximum SPL 147 dB SPL
Impedance 200 Ohms
Load Impedance 2 Kilohms
Sensitivity -28 dB
Dynamic Range 124 dB
Signal-to-Noise Ratio 79 dB A-Weighted
Equivalent Noise Level 15 dB A-Weighted
27 dB ITU-R 468
THD < 1%
CMRR 60 dB
Power
Operating Current Consumption 2.8 mA
Physical
Operating Temperature -40 to 122°F / -40.00 to 50.00°C
Operating Humidity 90%
Weight 5.75 oz / 163 g
Packaging Info
Package Weight 1.6 lb
Box Dimensions (LxWxH) 10.9 x 6.2 x 2.8"
