Neumann

4006087085448

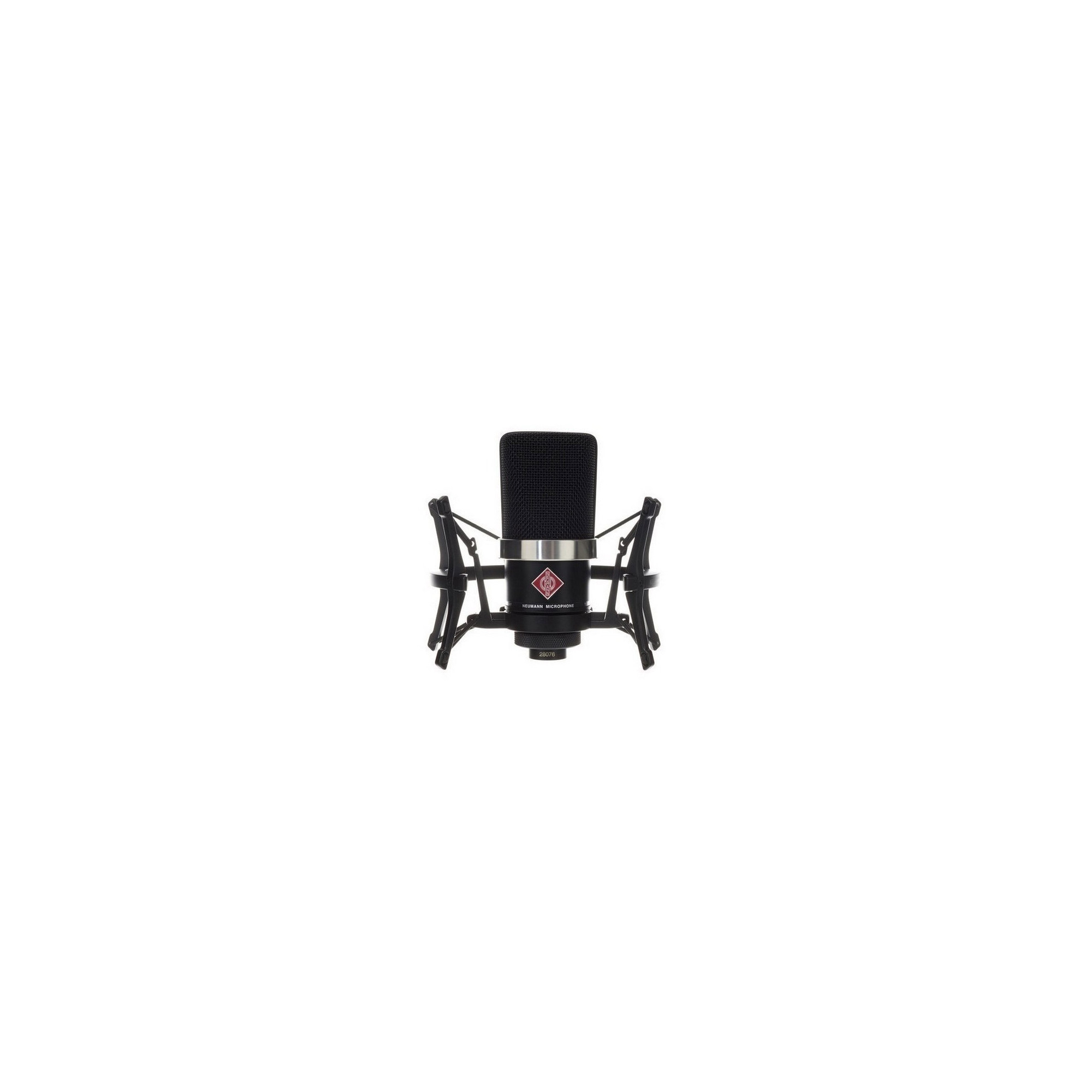

Studio condenser microphone with shock-mount EA1color Black
go to the technical sheet
₦ 1,881,571.00

₦ 1,750,299.00 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
Neumann Very low noise cardioid microphone for spiking complete with E41 support, black color.
It has a large diaphragm capsule derived from the U87 with very low noise and high tolerable sound pressure. Ideal microphone for digital, in the studio, in broadcast, for speech or singing, for wind or string instruments.
Created specifically to reproduce the singing voice, speech and all broadcast applications, it is also an ideal recording system for sounds coming from particularly dynamic instruments, with an aggressive and generous sound, such as percussion, drums and wind instruments. And the amplified ones.
The ability to withstand large maximum sound pressures is accompanied by a slight emphasis above 6kHz and the use of a technology that avoids the use of transformers.

A MODERN CLASSIC

The TLM 103 is a cardioid microphone with a large diaphragm condenser capsule derived from the classic K67/87 capsule of the legendary Neumann U 87. However, the TLM 103 has a slightly more modern voicing with a wide presence boost for frequencies above 5 kHz. Its very direct yet refined sound is perfect for vocals, and solo instruments that pop out of the mix without .

TECHNICAL EXCELLENCE

Its high sensitivity of 23 mV/Pa, ensures ultra low noise even with budget preamps and audio interfaces or vintage tube equipment. At the same time, the TLM 103 can handle enormous sound pressure levels of up to 138 dB without the need for preattenuation. Its vast dynamic range of 131 dB makes the TLM 103 a very easy to use studio microphone as it will capture anything from a soft whisper to a thunderous bass drum without adding noise or distortion.

EXTREMELY VERSATILE

The TLM 103 was primarily designed for project studios and broadcast use, but due to its outstanding performance was soon embraced by renowned studios as a more modern-sounding alternative to the U87 e.g. for speech, vocals, drums, guitar amps, and piano. The TLM 103 is also often used as a spot mic in classical recordings e.g. for cello and double bass.

Technical Data
Acoustical operating: Pressure gradient transducer
Maximum SPL for THD 0.5%2): 144 dB
Directional pattern: Cardioid
Maximum output voltage: 13 dBU
Frequency range: 20 Hz...20 kHz
Dyn. range of the mic. amplifier (A-weighted): 132 dB
Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
Supply voltage (P48, IEC 1938): 48 V ± 4 V
Rated impedance: 50 ohms
Current consumption (P48, IEC 1938): 3.5 mA
Rated load impedance: 1 kohms
Matching connector: XLR3F
Equivalent noise level, CCIR1): 21 dB
Weight approx.: approx. 260 g
Equivalent noise level, A-weighted1): 12 dB-A
Diameter: 52 mm
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 73 dB
Length: 116 mm
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 82 dB
Supplied with elastic shock absobing EA4 included

General
Misure: D52mm x 116mm
Peso: 0,500kg

1x TLM 103 (mt)
1x Elastic support EA1
1x Support for tripod or fishing rod SG
1x Cable with joint IC
1x Windshield WS 87
