GEN10-R0

Name: GEN10-R0
Brand: AJA
SKU: GEN10-R0
Price: 998244 NGN
Availability: OutOfStock

AJA

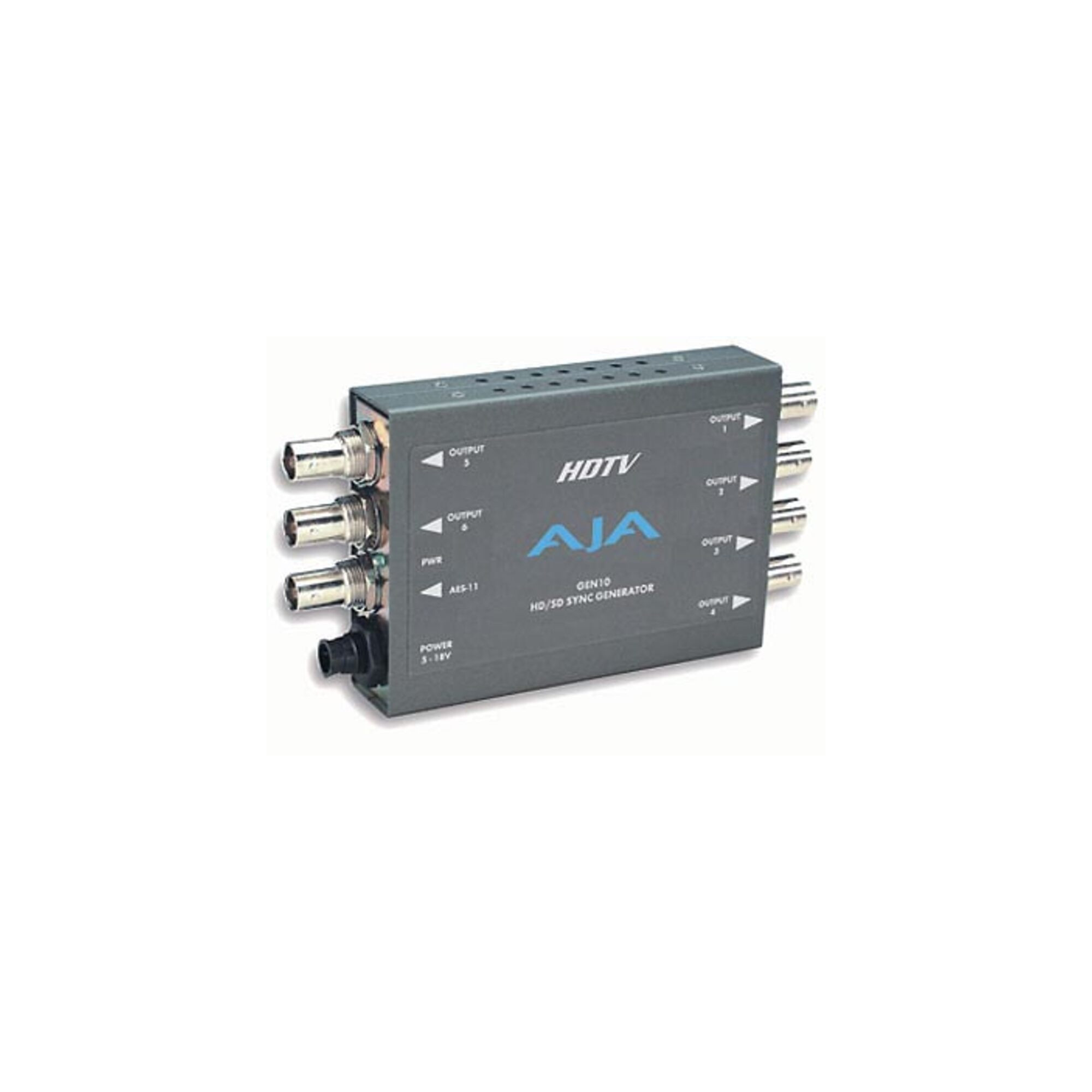

HD/SD Sync Generator

go to the technical sheet

₦ 998,244.00

₦ 928,599.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

AJA Sync Generator - High Definition/Standard Definition - HD/SD SDI (BNC) and digital audio AES-11 (BNC)
Standard Definition SDI- The SD outputs can be switched between color Black or color Bars for reference or sync.
High Definition SDI - HD tri-level sync can be switched between 19 different HD formats.
6x output + 1x AES-11
Power supply included

Specifications
======================
Outputs
° HD/SD SDI Outputs x6, configuring to 2 groups, BNC Connectors
° Digital Audio, AES-11, on a BNC connector
Formats
° 1080psf 23.98/24/25/29.97/30
° 1080p 23.98/24/25/29.97/30
° 720p 23.98/24/25/29.97/30/50/59.94/60
° 1080i 50/59.94/60
° 525/60i, 625/50i
° AES-11, 48 KHz, Silent or 1 KHz Tone
Bandwidth
° HD-SDI 1483.5 and 1.485 Gbps
° SD-SDI 270 Mbps, 360 Mbps, and 540 Mbps
Standards
° NTSC
° PAL
Test
° Signals Standard Definition: Black Burst and 75% Color Bars
° High Definition: Tri-level Sync
Power 5-18 V
Dimensions (HxWxD) 14.7 x 2.5 x 7.9cm
Weight 200 gr
