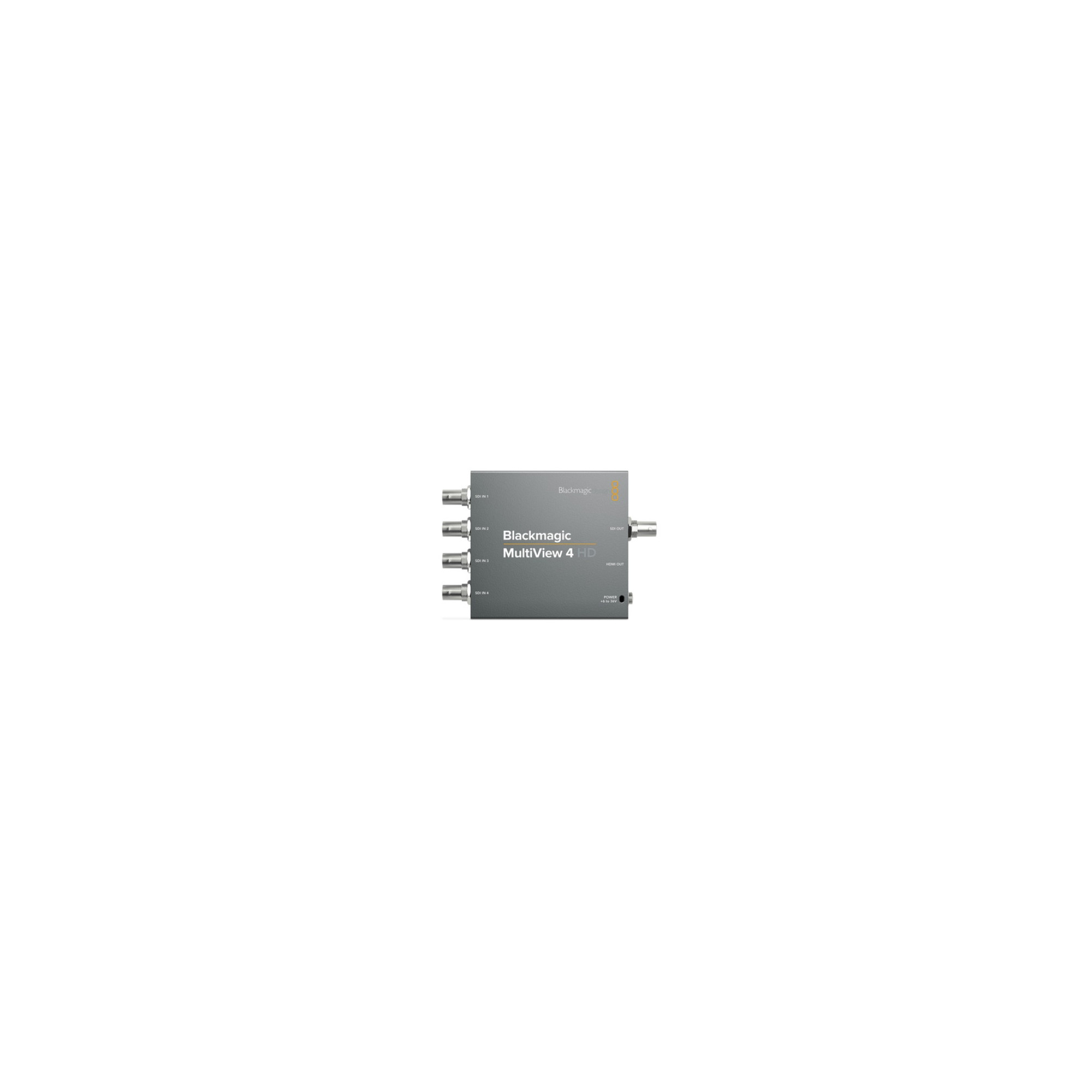

MULTIVIEW 4 HD

Inputs - Outputs
SDI Video Inputs: 4 x SD-SDI and HD-SDI 10-bit
SDI Video Outputs: 1 x HD-SDI
SDI Transmission: 270Mb, 1.5G, 3G
SDI Multiview Video Outputs: 1 x HD-SDI 10-bit
HDMI Multiview Video Outputs: 1 x HDMI Type A connector Output is compatible with monitor EDID
SDI Reclocking: On all SDI outputs, with automatic switching between SD and HD
Reference Input: None
Multirate Compatibility: Automatic detection of SD and HD
Upgrades: High-speed USB 2.0 interface (480Mb/s)
Configuration: USB 2.0

Supported Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD video standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K video standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI Standard Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
Audio Levels: On each source, VU standard
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sampling rate of 48kHz and 24bit.
SDI Color Precision: 4:2:2 and 4:4:4 10-bit
SDI Color Space: YUV or RGB for inputs, YUV for outputs
SDI Auto Switching: Automatic selection between SD-SDI and HD-SDI. Each input selects the standard independently of the other inputs
Compatible SDI Metadata: Auxiliary Video Load Identification according to SMPTE 352M

Display: None

Software
Control Software: Includes a free copy of MultiView software for Windows™ and Mac OS X™
Internal Software Update: Via update application (included)

Operating Systems
Mac Icon
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later
Windows Icon
Windows 8.1 or Windows 10

Power Requirements
Power: Universal +12V power supply and international plug adapters Cable tie hole
Power Failure Protection: MultiView 4 HD saves settings and restores them at power up
Power Consumption: 5.5 W
Operating Voltage: 6 to 36 Vdc
Physical Specifications: Blackmagic MultiView 4 HD
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing

Product Includes:
1x Blackmagic MultiView 4 HD
Universal +12V power supply and international plug adapters

1x Blackmagic MultiView 4 HD
1x +12V universal power supply with international socket adapters
